B1210

B1210 SIDE COLLISION DETECTION

Description

DTC B1210 SIDE COLLISION DETECTION
If the components that are not activated in side collision are reused, they should be checked for damage by CONSULT-III or air bag warning lamp. Repair or replace the malfunctioning parts.

OPERATION
The side air bag and curtain air bag are operated by the decision of the diagnosis sensor unit (ACU) signal of the side collision.

STRUCTURE
It consists of satellite sensor, diagnosis sensor unit (ACU), side air bag and curtain air bag.

INSTALLATION




DTC Logic

Step 1-3:

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Diagnosis Procedure (Component diagnosis)

With CONSULT-III

CAUTION:
- Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 minutes. (To discharge backup capacitor.)
- Do not use unspecified tester or other measuring device.

Step 1-5:

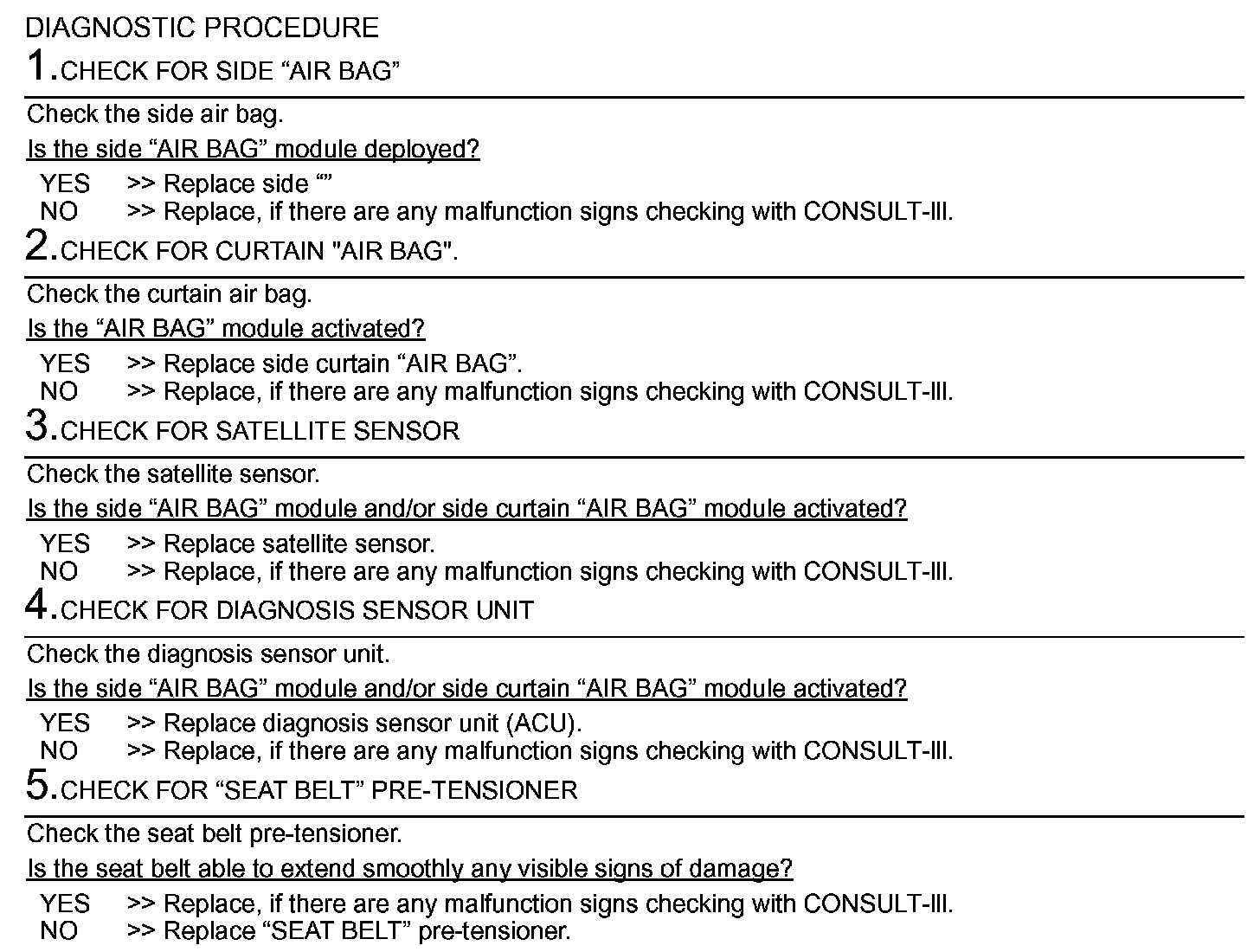

DIAGNOSTIC PROCEDURE
