B2521

B2521 ECU CIRCUIT

Description
AFS control unit judges the vehicle condition from each signal. AFS control unit controls AFS function and the headlamp aiming.

DTC Logic




DTC DETECTION LOGIC

Step 1-2:

DTC CONFIRMATION PROCEDURE

Step 1:

Step 2-5:

Step 5 (Continued)-6:

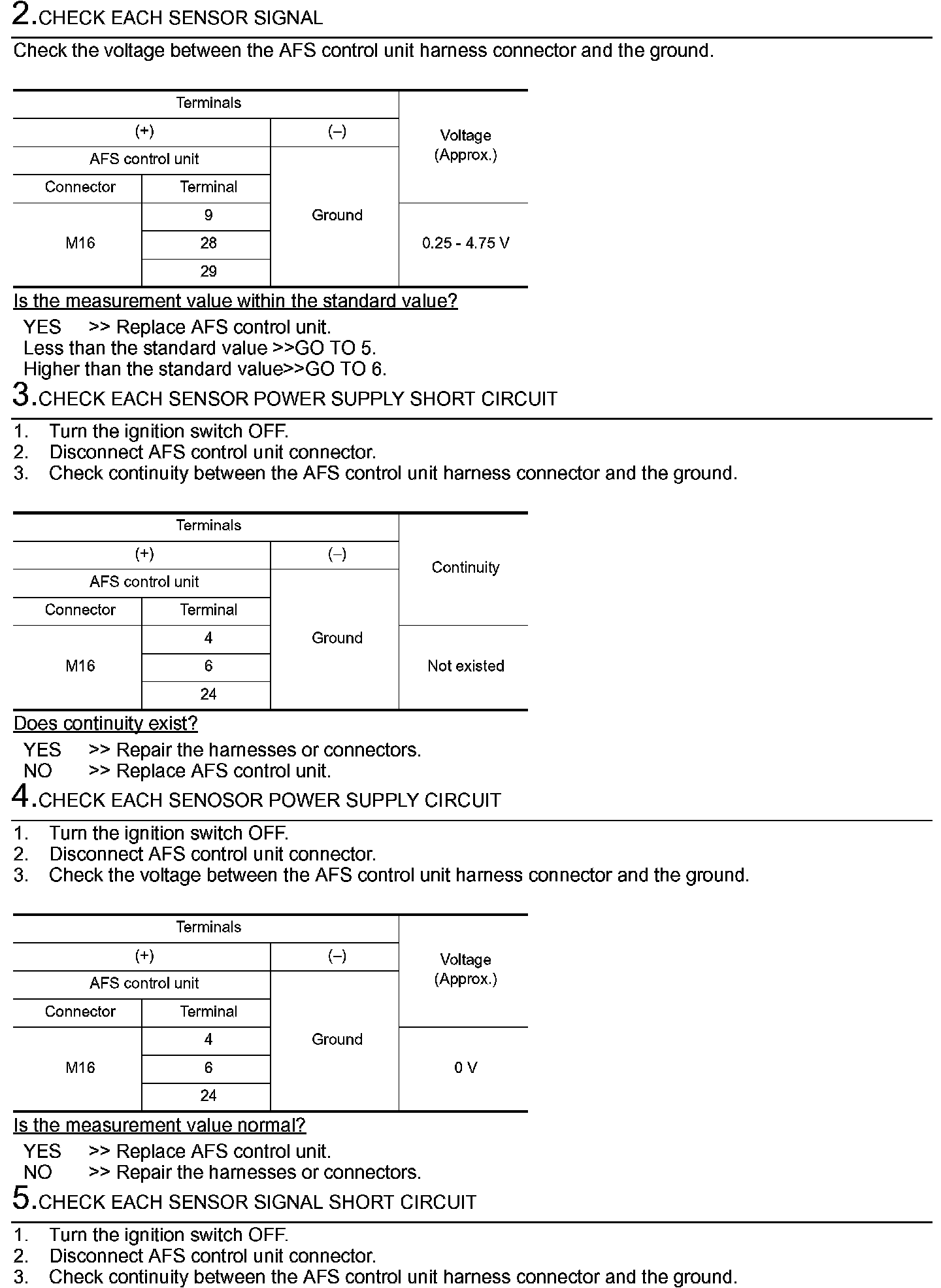

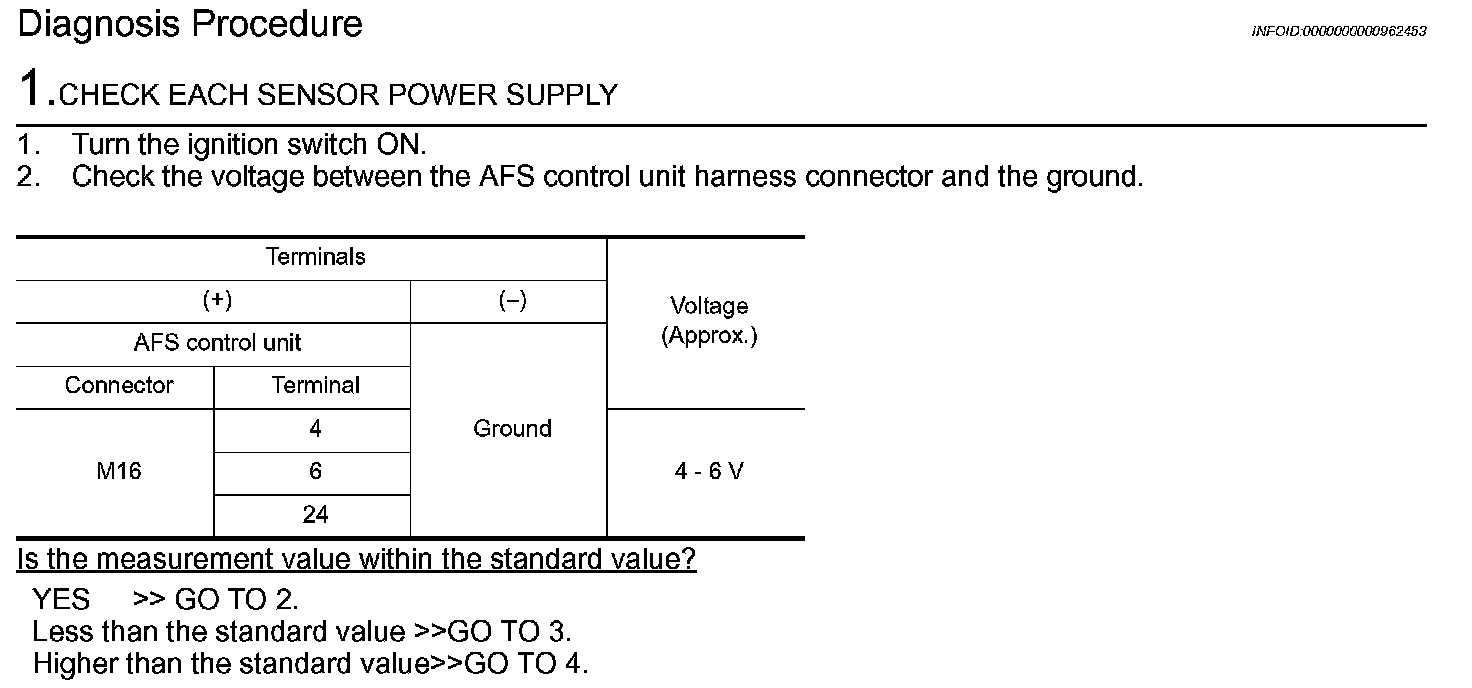

Diagnosis Procedure
