C1205

C1205 AWD ACTUATOR RELAY

Description
^ AWD solenoid is supplied with voltage by the internal circuit of AWD control unit.

DTC Logic

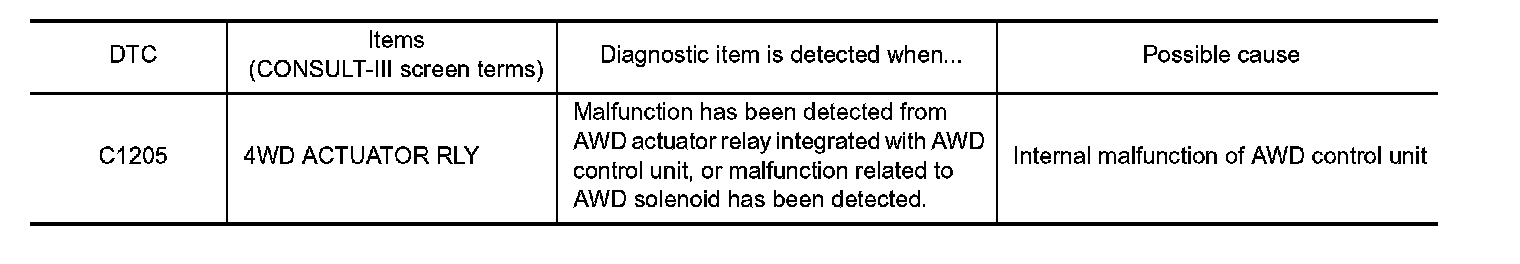

DTC DETECTION LOGIC

C1205:

DTC CONFIRMATION PROCEDURE

1. DTC REPRODUCTION PROCEDURE

With CONSULT-III
1. Turn the ignition switch OFF to ON.
2. Perform the self-diagnosis.
Is DTC "C1205" detected?
YES >> Proceed to diagnosis procedure. Refer to: "Diagnosis Procedure".
NO >> INSPECTION END

Diagnosis Procedure

1. PERFORM SELF-DIAGNOSIS

With CONSULT-III
1. Erase AWD control unit self-diagnosis results.
2. Wait 10 minutes or more after turning the ignition switch OFF.
3. Perform self-diagnosis of AWD control unit.
Is DTC "C1205" detected?
YES >> Replace AWD control.
NO >> Check AWD control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
