C1919

C1919 VEHICLE SPEED SIGNAL

Description
^ The vehicle speed signal is transmitted from ABS actuator and electric unit (control unit) to 4WAS main control unit via CAN communication.

DTC Logic

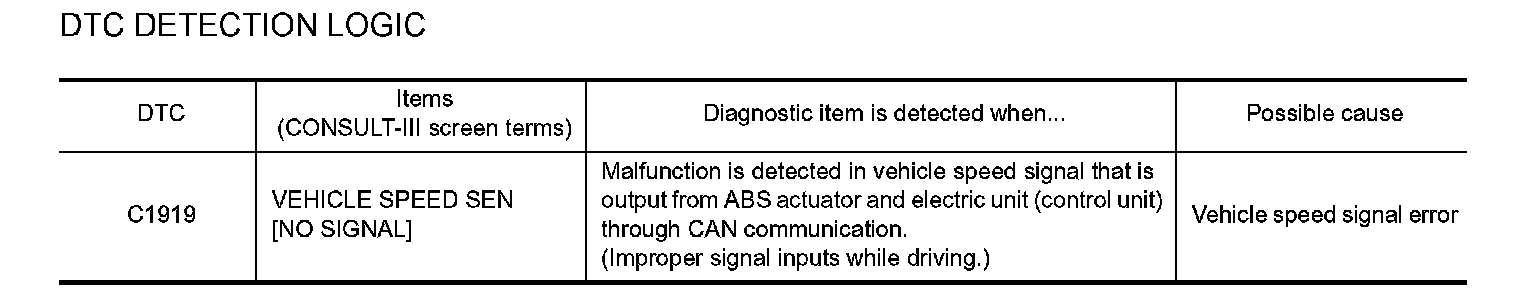

DTC DETECTION LOGIC

C1919:

DTC CONFIRMATION PROCEDURE

1. RECHECK DTC

With CONSULT-III
1. Turn the ignition switch OFF to ON.
2. Perform 4WAS main control unit self-diagnosis.
Is DTC "C1919" detected?
YES >> Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO >> INSPECTION END

Diagnosis Procedure

1. PERFORM ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS

With CONSULT-III
Perform ABS actuator and electrical unit (control unit) self-diagnosis.
Is any error system detected?
YES >> Check the error system.
NO >> GO TO 2.

2. PERFORM SELF-DIAGNOSIS (4WAS MAIN CONTROL UNIT)

With CONSULT-III
Perform 4WAS main control unit self-diagnosis.
Is DTC "U1000" or "U1010" detected?
YES >> Check the error system.
NO >> GO TO 3.

3. PERFORM SELF-DIAGNOSIS (4WAS MAIN CONTROL UNIT)

With CONSULT-III
Perform 4WAS main control unit self-diagnosis.
Is DTC "C1919" detected?
YES >> Replace 4WAS main control unit.
NO >> GO TO 4.

4. INFORMATION CHECK

With CONSULT-III
Check the "DATA MONITOR" value of each DTC detected with the self-diagnosis function. Refer to "Reference Value". 4WAS Main Control Unit
Is each data the standard value?
YES >> Check that there is no malfunction in each harness connector pin terminal or disconnection.
NO >> Replace 4WAS main control unit.

Special Repair Requirement

BEFORE REPLACING 4WAS MAIN CONTROL UNIT
^ Record the self-diagnosis results (history).

CAUTION:
^ Replace it without erasing the memory (history) of self-diagnosis results when replacing 4WAS main control unit after diagnosis.
^ Erase the memory of the self-diagnosis results (record) after printing out or recording all the values of "DATA MONITOR" when erasing the memory of the self-diagnosis results (record).
