C1A03
C1A03 VEHICLE SPEED SENSORDescription
The ICC sensor integrated unit receives the vehicle speed signal (wheel speed) from the ABS actuator and electric unit (control unit) and the A/T vehicle speed sensor signal (output shaft revolution signal) from TCM with CAN communication.
NOTE:
If DTC C1A03 is detected along with DTC U1000 or C1A04, first diagnose the DTC U1000 or C1A04.
- DTC U1000: Refer to"Diagnosis Procedure". U1000
- DTC C1A04: Refer to"Diagnosis Procedure". C1A04

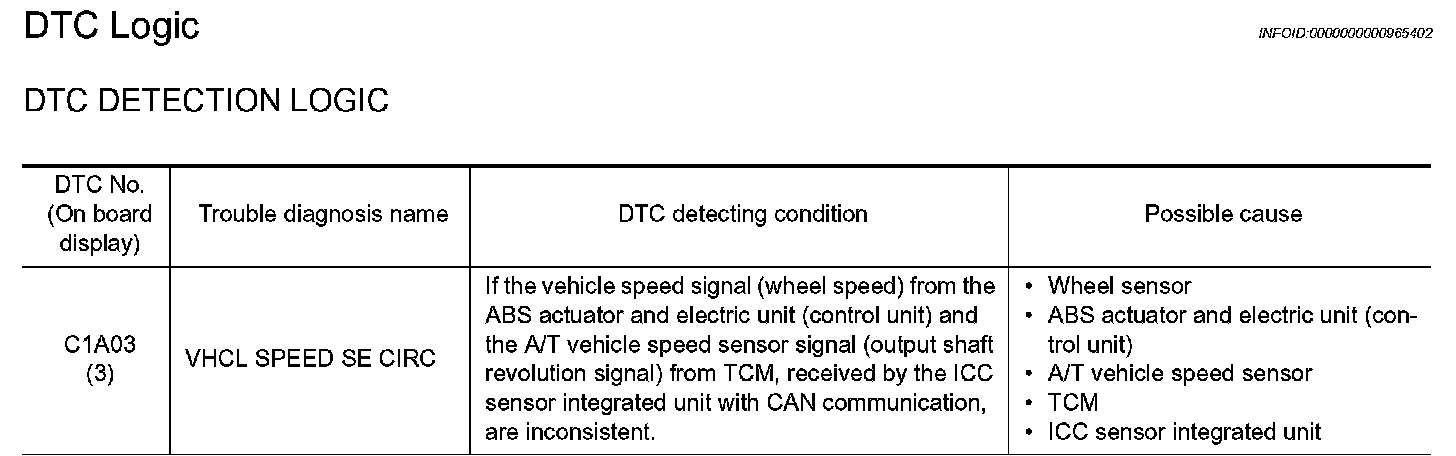

DTC Logic
DTC DETECTION LOGIC
Step 1-5:

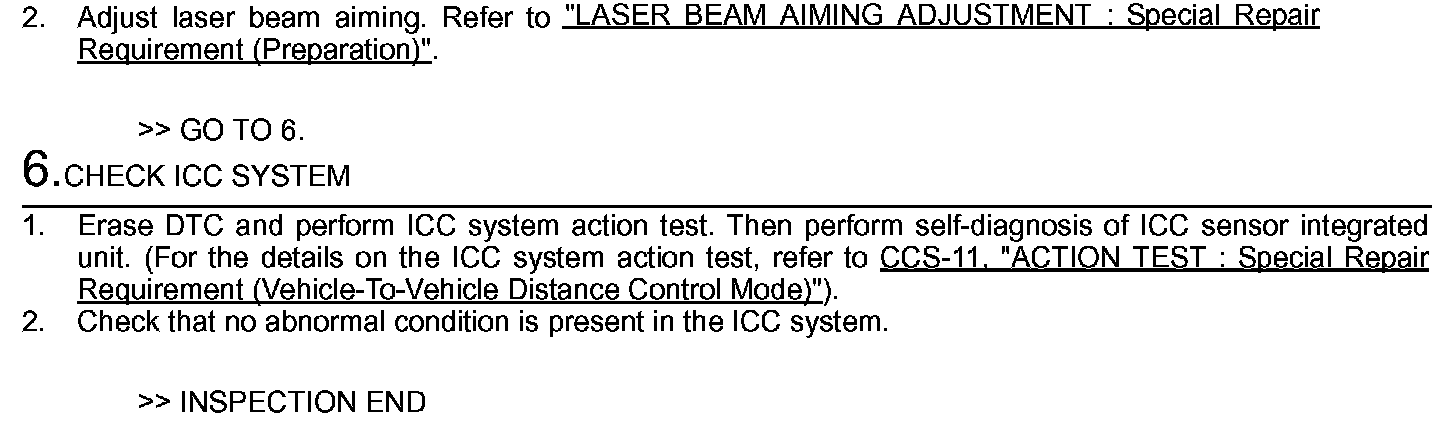

Step 5 (Continued)-6:

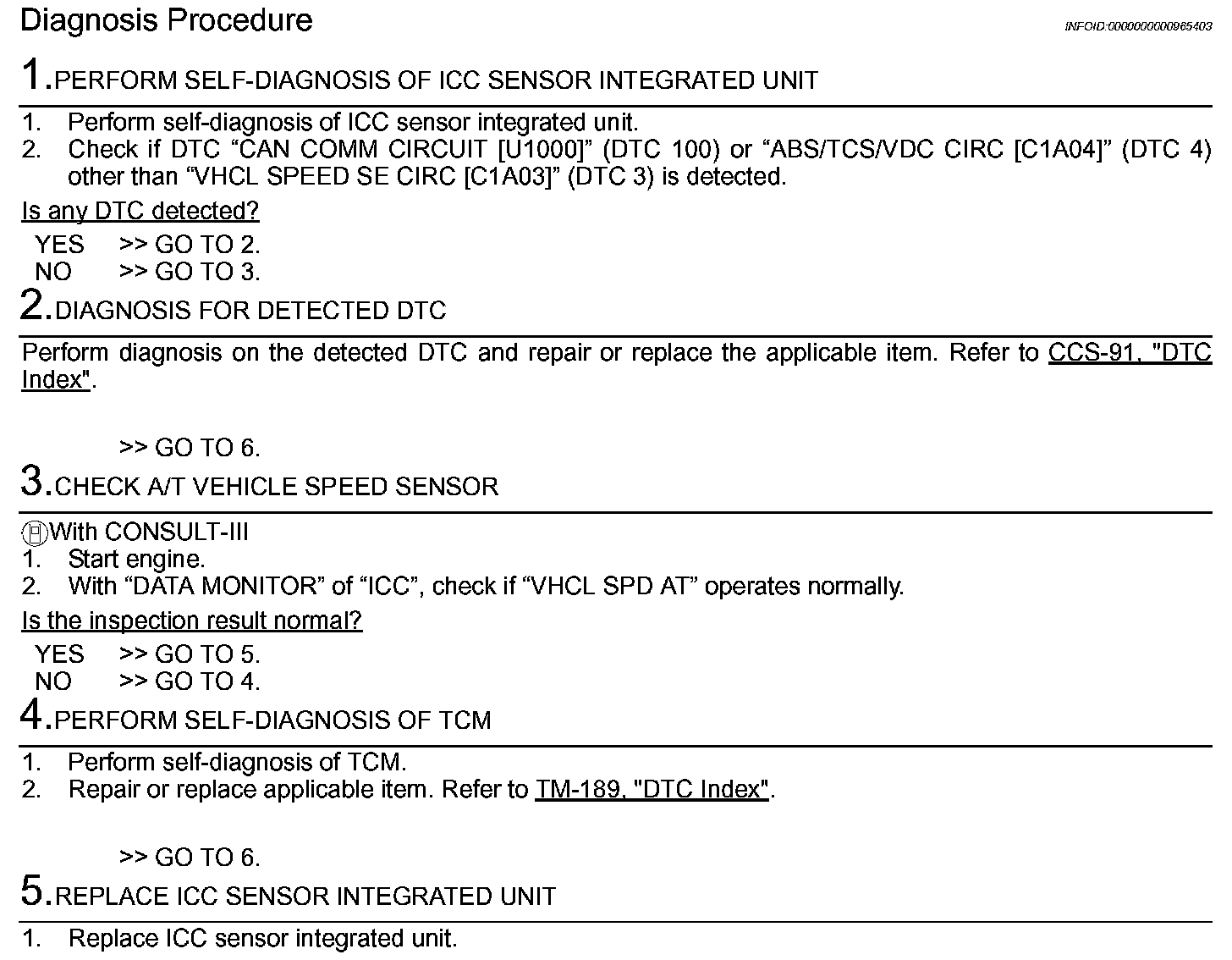

Diagnosis Procedure
