C1A16
C1A16 RADAR STAINDescription
ICC sensor integrated unit irradiates laser beam, and receives reflected laser beam to measure distance from preceding vehicle.
DTC Logic
DTC DETECTION LOGIC
Step 1-6:
Step 6 (Continued):

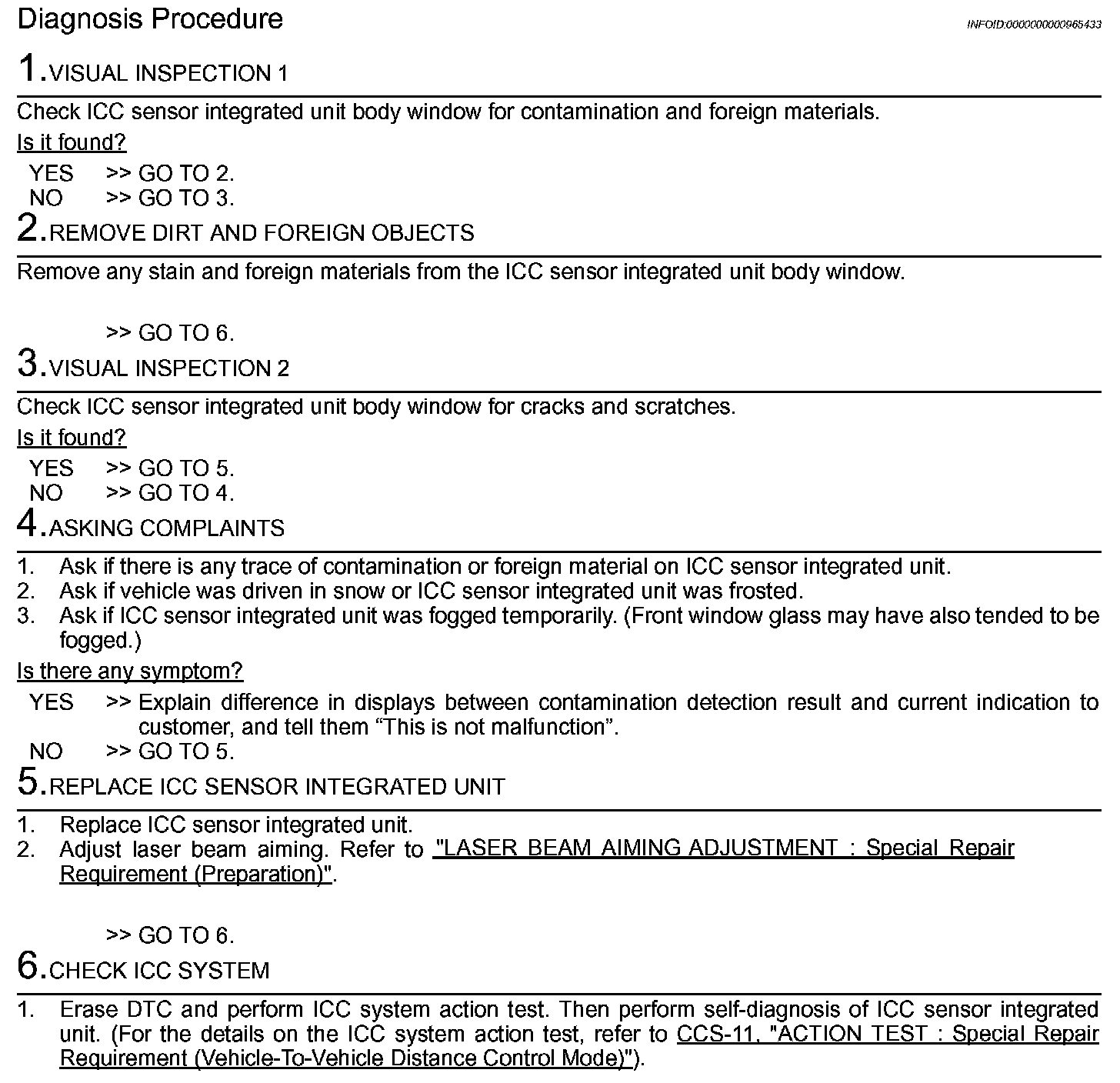

Diagnosis Procedure
Description
ICC sensor integrated unit irradiates laser beam, and receives reflected laser beam to measure distance from preceding vehicle.
DTC Logic
DTC DETECTION LOGIC
Diagnosis Procedure
