C1A24
C1A24 NP RANGEDescription
Park/neutral position switch signal is transmitted by TCM to ICC sensor integrated unit with CAN communication (A/T).
NOTE:
If DTC C1A24 is detected along with DTC U1000 or U0402, first diagnose the DTC U1000 or U0402.
- DTC U1000: Refer to: "Diagnosis Procedure". U1000
- DTC U0402: Refer to "Diagnosis Procedure". U0402

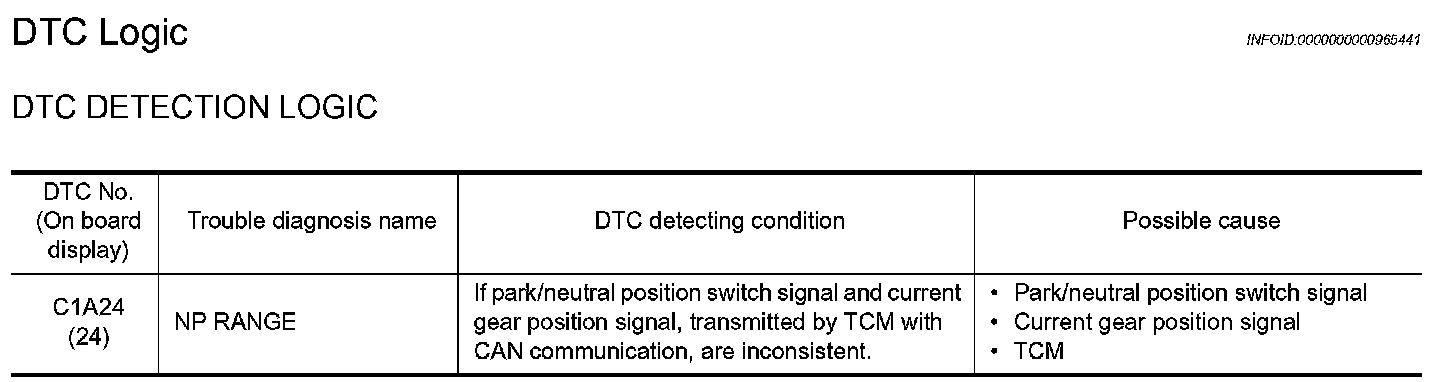

DTC Logic
DTC DETECTION LOGIC

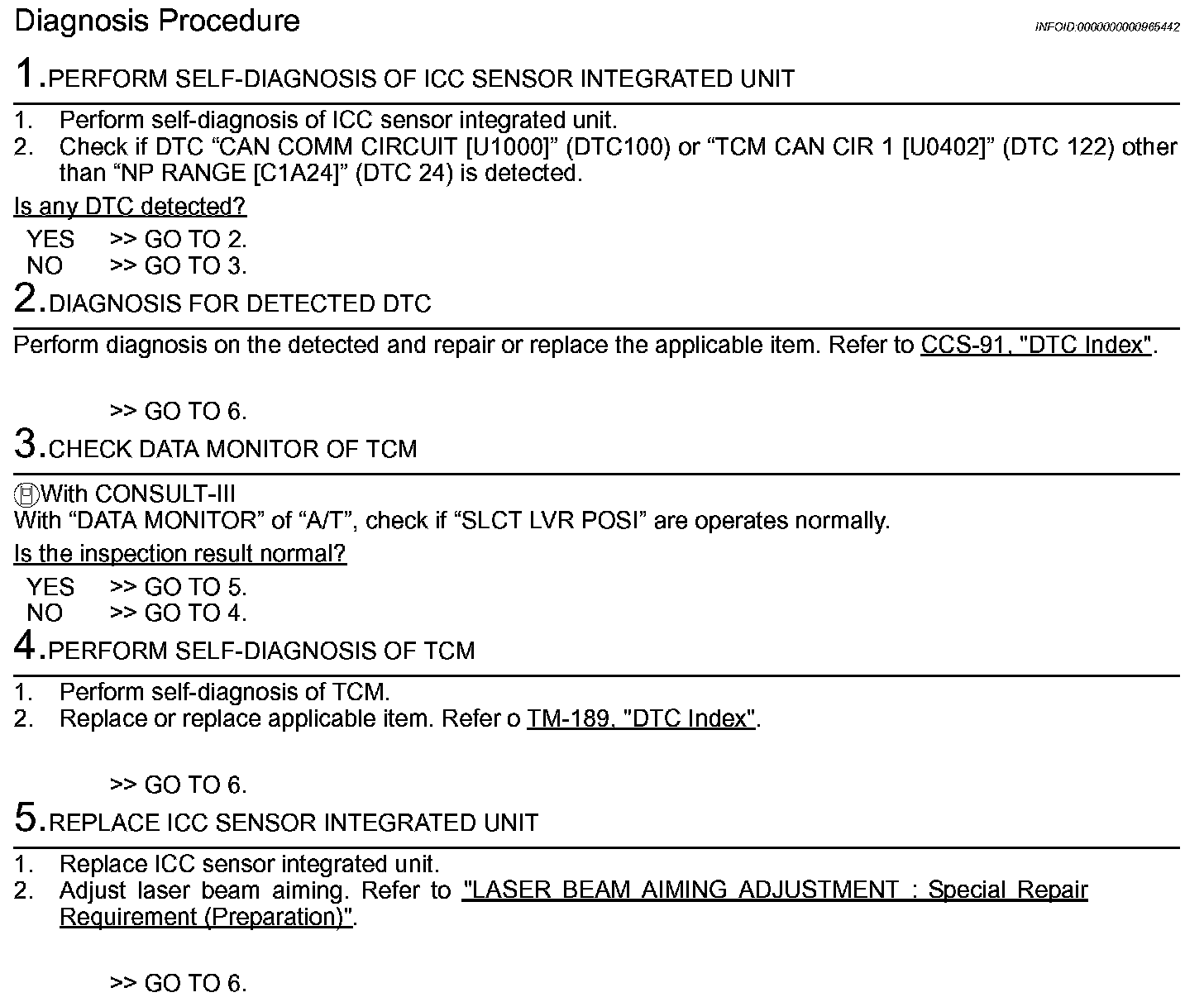

Step 1-5:

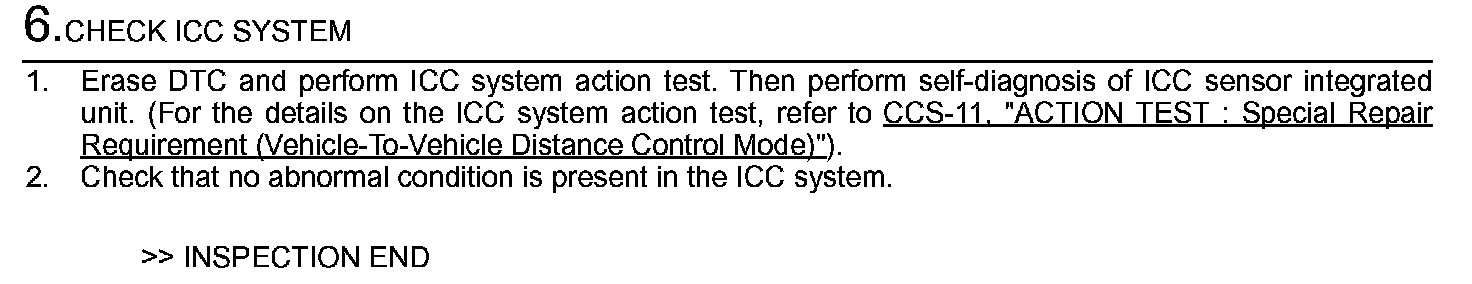

Step 6:
Diagnosis Procedure
