P0615

P0615 START SIGNAL

Description
TCM prohibits cranking other than at "P" or "N" position.

DTC Logic

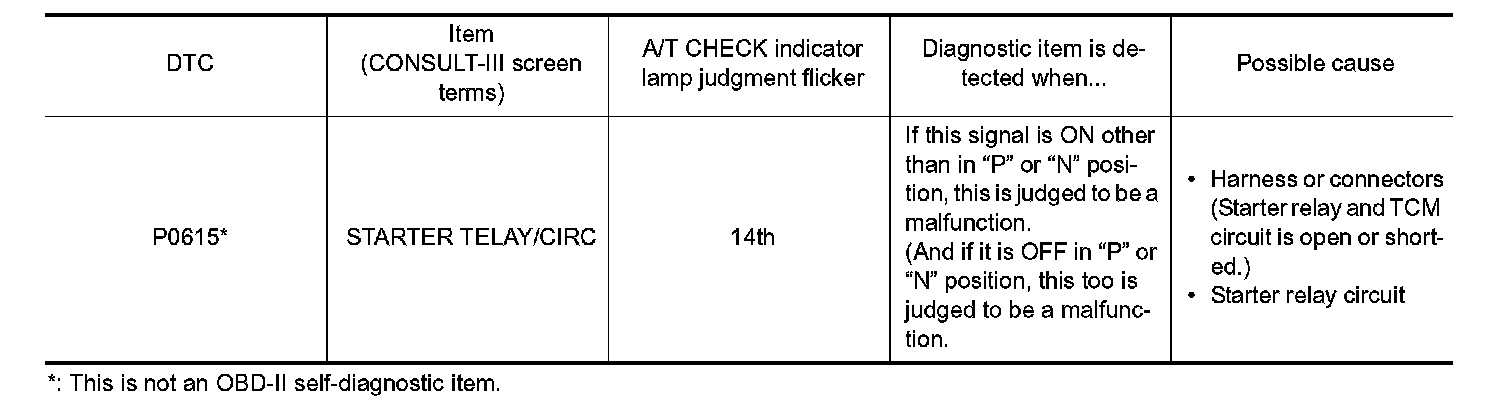

DTC DETECTION LOGIC

P0615:

DTC CONFIRMATION PROCEDURE

NOTE: If "DTC CONFIRMATION PROCEDURE" has been previously performed, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

1. CHECK DTC DETECTION

With CONSULT-III
1. Start the engine.
2. Select "DATA MONITOR".
STARTER RELAY
3. Drive vehicle for at least 2 consecutive seconds.
Is "P0615 STARTER RELAY/CIRC" detected?
YES >> Go to TM-121, "Diagnosis Procedure".
NO >> Check Intermittent incident.

Diagnosis Procedure

1. CHECK HARNESS BETWEEN A/T ASSEMBLY HARNESS CONNECTOR AND IPDM E/R CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector and IPDM E/R connector.
3. Check the continuity between A/T assembly harness connector and IPDM E/R connector.





4. If OK, check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.

2. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM.
2. Disconnect A/T assembly harness connector and TCM connector.
3. Check continuity between A/T assembly harness connector and TCM connector.





4. If OK, check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.

3. CHECK STARTER RELAY
Check starter relay.
Is the inspection result normal?
YES >> Replace the control valve with TCM.
NO >> Repair or replace damaged parts.
