P0643

P0643 SENSOR POWER SUPPLY

DTC Logic

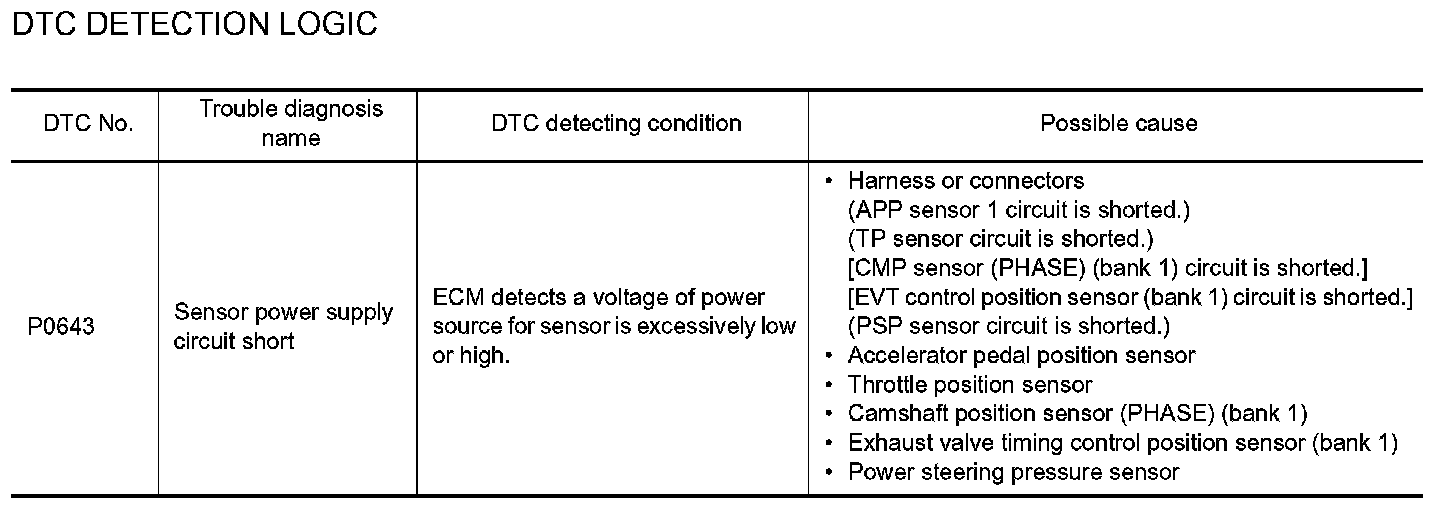

DTC DETECTION LOGIC

Step 1-2:

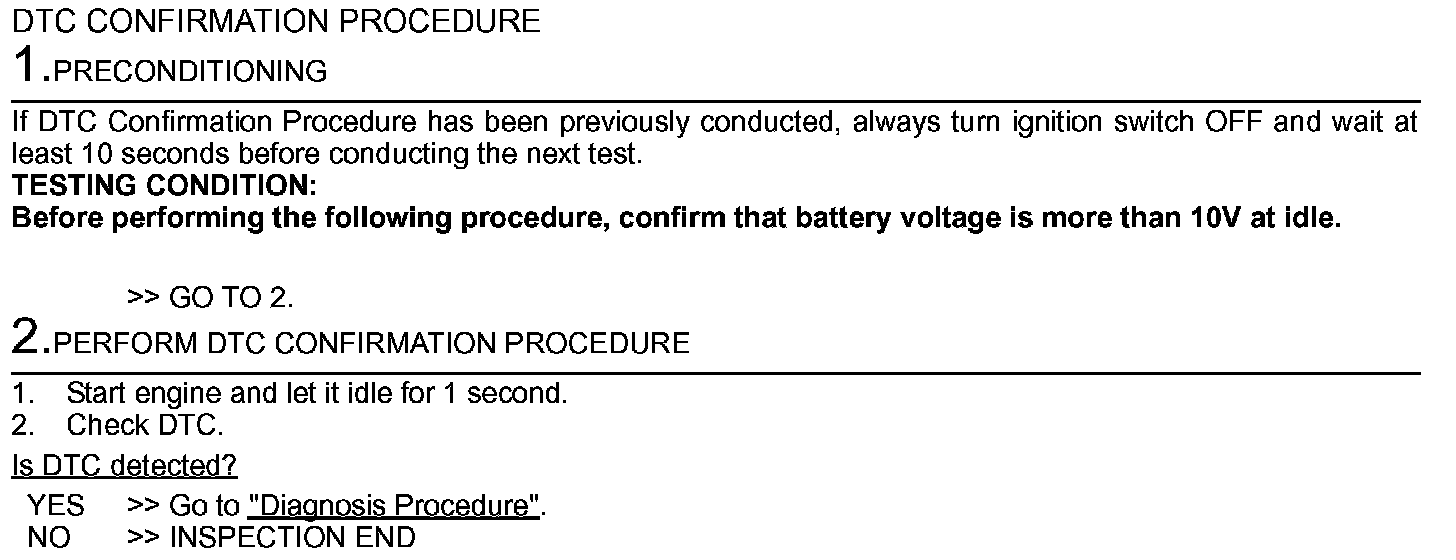

DTC CONFIRMATION PROCEDURE

Step 1-2:




Step 3-9:




Diagnosis Procedure
