Outside Key Antenna

Exploded View EXT-13:

Rear Bumper

Exploded View DLK-207:

Front Door Lock

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View
Refer to DLK-207, "FRONT DOOR LOCK : Exploded View".

DRIVER SIDE : Removal and Installation

REMOVAL
Remove the front outside handle LH.

INSTALLATION
Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View
Refer to DLK-207, "FRONT DOOR LOCK : Exploded View".

PASSENGER SIDE : Removal and Installation

REMOVAL
Remove the front outside handle RH.

INSTALLATION
Install in the reverse order of removal.

REAR BUMPER

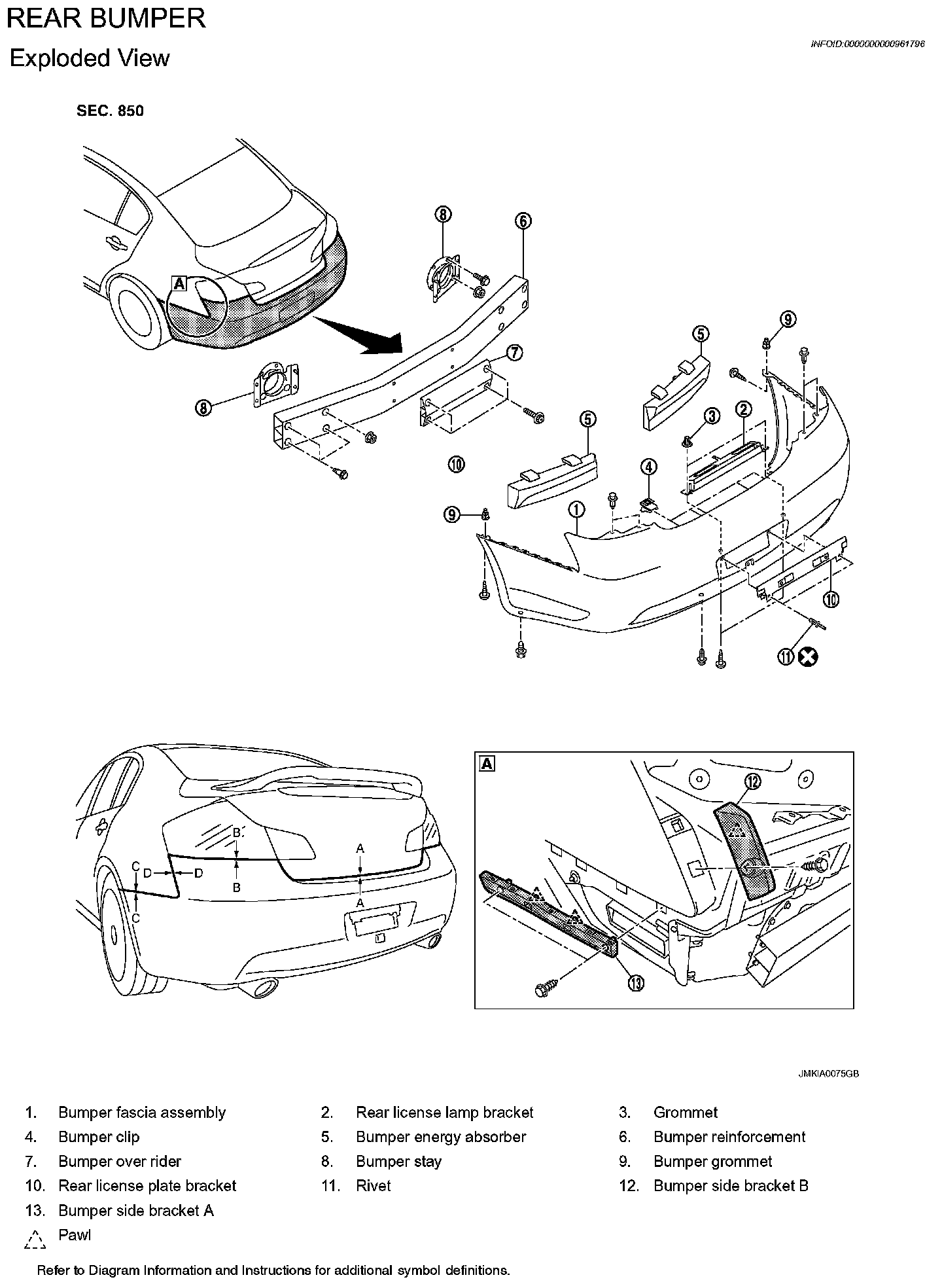

REAR BUMPER : Exploded View
Refer to Exploded View EXT-13.

REAR BUMPER : Removal and Installation

REMOVAL
1. Remove the rear bumper.

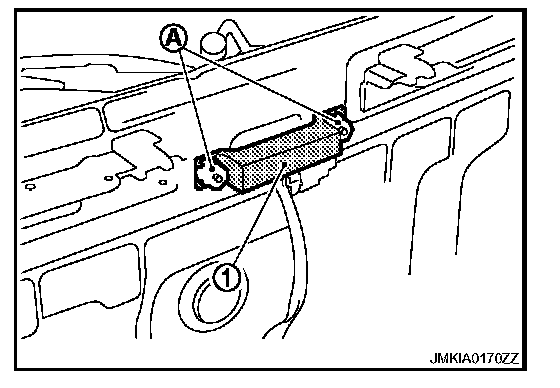

2. Remove the outside key antenna (rear bumper) mounting nuts (A), and then remove outside key antenna (rear bumper) (1).

INSTALLATION
Install in the reverse order of removal.
