Cellular Phone: Service and Repair

TEL ADAPTER UNIT

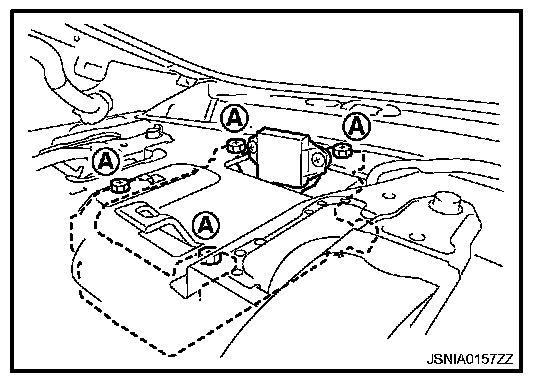

Exploded View AV-310:

Exploded View

Removal and Installation

REMOVAL
1. Remove trunk front finisher.
2. Remove rear parcel shelf finisher.




3. Remove screw (A) from inside the cabin, and remove TEL adapter unit and TEL antenna as a single unit from trunk room side.
4. Remove bracket screws and remove TEL adapter unit and satellite radio tuner.

INSTALLATION
Installation is the reverse order of removal.
