Side Support System

SIDE SUPPORT SYSTEM

SIDE SUPPORT SYSTEM : System Description

OUTLINE
- While operating the side support switch, the pump located inside side support unit operates and adjust the air pressure in seat cushion and seatback side support.
- It is possible to soften the side support, by allowing some air to escape, by deflating the solenoid located inside side support.
- It is possible to adjust seat cushion and seatback differently while inflating or deflating solenoid located inside support unit.

NOTE: The side support system is controlled independently with no link to the automatic drive positioner system.

SIDE SUPPORT SYSTEM : Component Description

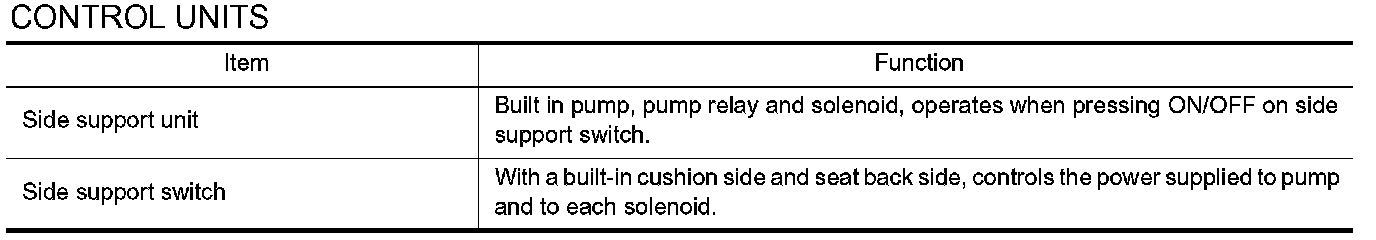

CONTROL UNITS
