Symptom Related Diagnostic Procedures
SYMPTOM DIAGNOSISCOMBINATION SWITCH SYSTEM SYMPTOMS

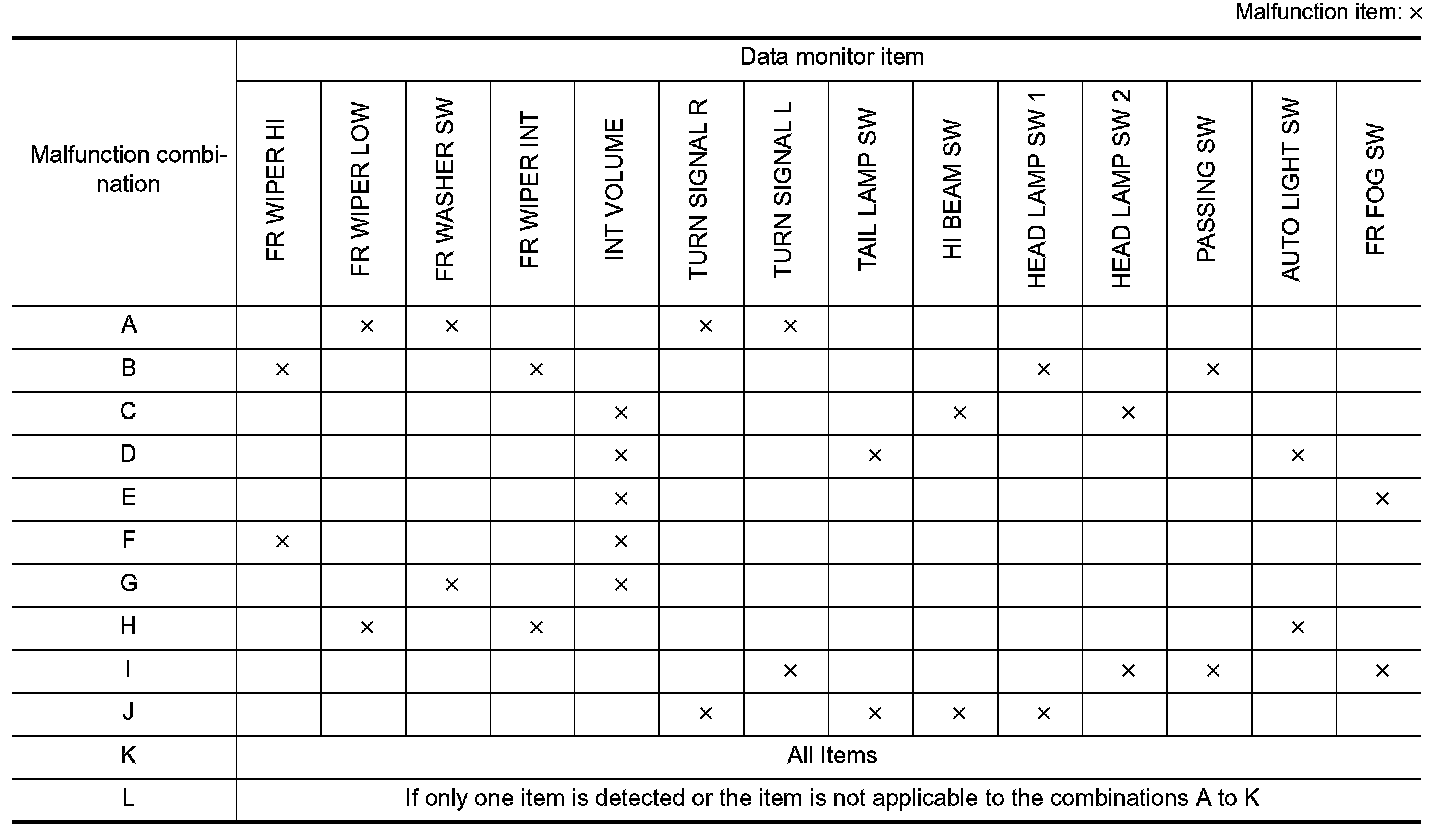

Symptom Matrix Chart
1. Perform Data Monitor of CONSULT-III to check for any malfunctioning item.
2. Check the malfunction combinations.
3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
