Front Fender: Service and Repair

FRONT FENDER

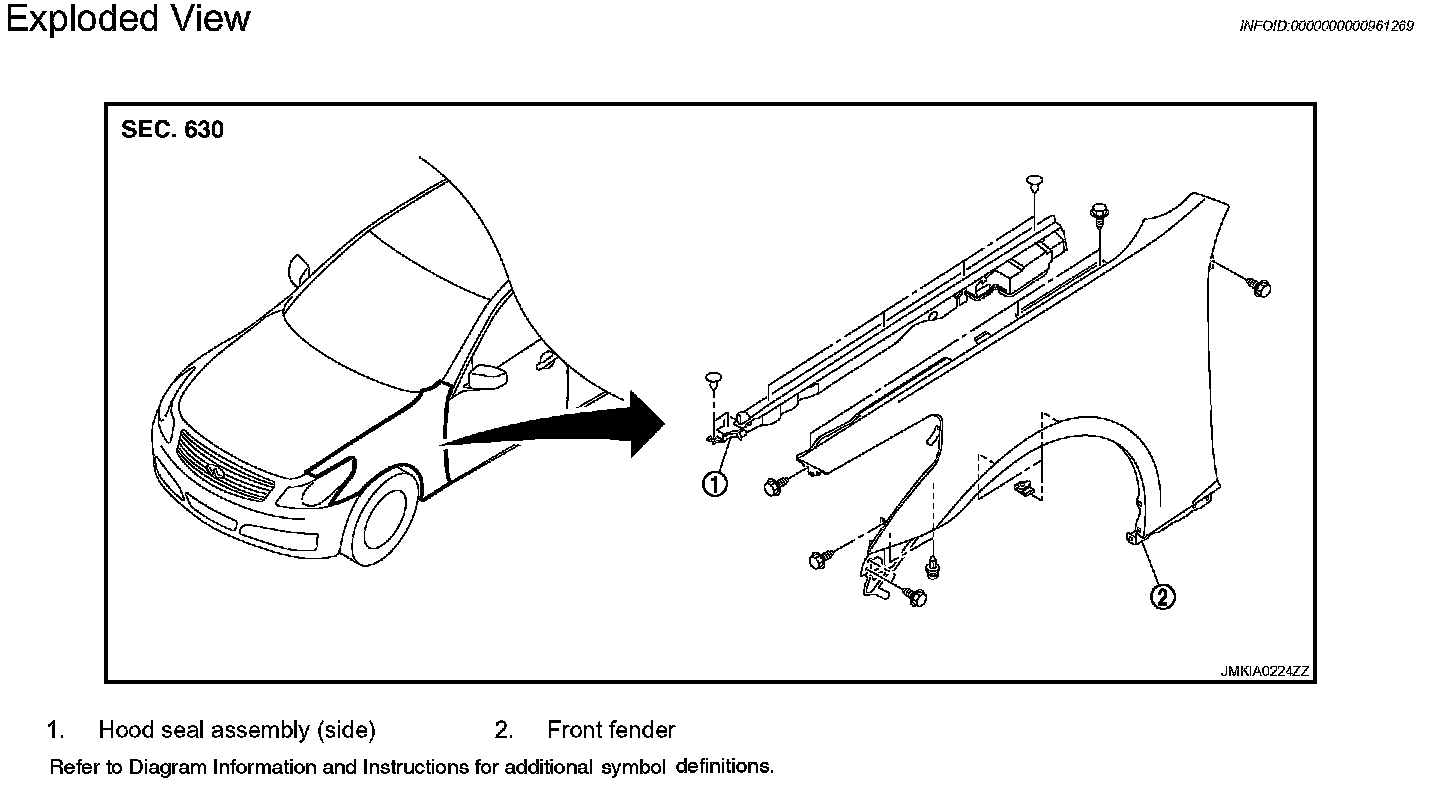

Exploded View DLk-199:

Exploded View

Removal and Installation

REMOVAL
1. Remove the front bumper.
2. Remove the hood seal assembly (side).
3. Remove the head-lamp.
4. Remove the front fender protector.
5. Remove the center mudguard.
6. Remove the mounting bolt and remove the front fender.

CAUTION: While removing use a shop cloth to protect body from damaging.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint (the body color) onto the head of the front fender mounting bolts.
- After installing, check front fender adjustment. Refer to "HOOD ASSEMBLY : Adjustment" and "FRONT DOOR : Adjustment"
