Detention Switch

DETENTION SWITCH

Description
Detention switch is installed on AT device. It is turned OFF when the AT selector lever is in P position. The driver seat control unit judges that the AT selector lever is in P position if continuity does not exist in this circuit.

Step 1:

Component Function Check

Step 1-3:

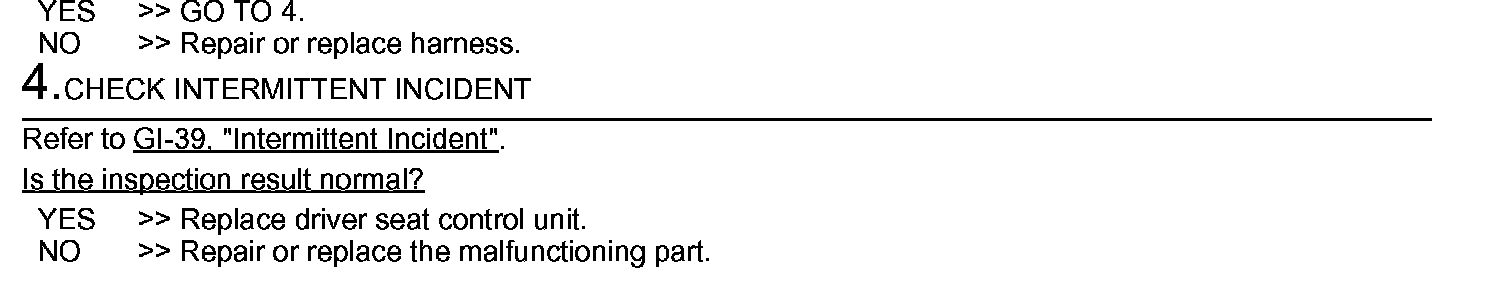

Step 3 (Continued)-4:

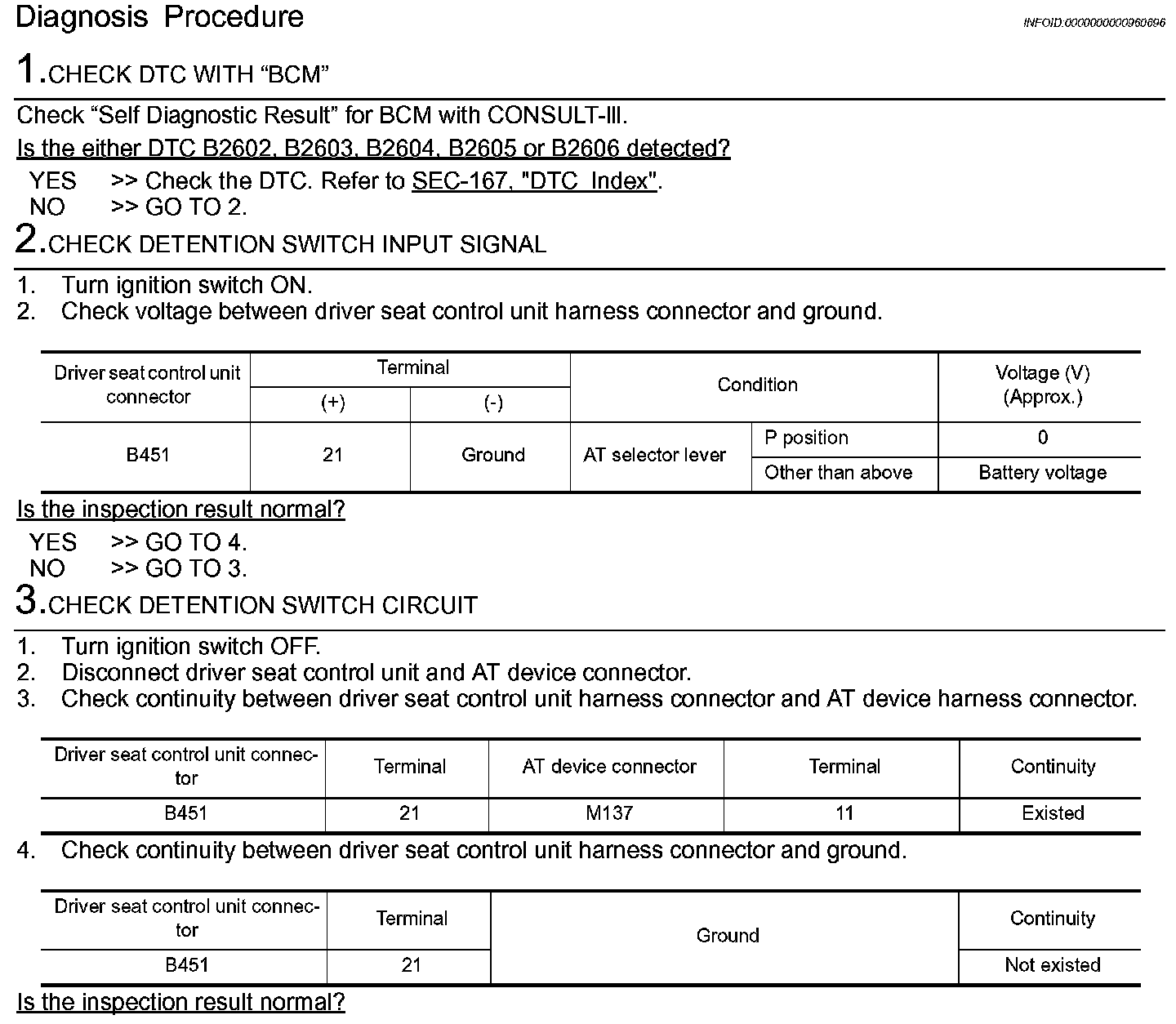

Diagnosis Procedure
