Diagnosis System (Driver Seat Control Unit)

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

Diagnosis Description
The auto drive positioner system can be checked and diagnosed for component operation with CONSULT-III.




DIAGNOSTIC MODE

CONSULT-III Function

SELF-DIAGNOSIS RESULTS
Refer to ADP-156, "DTC Index". Driver Seat Control Unit

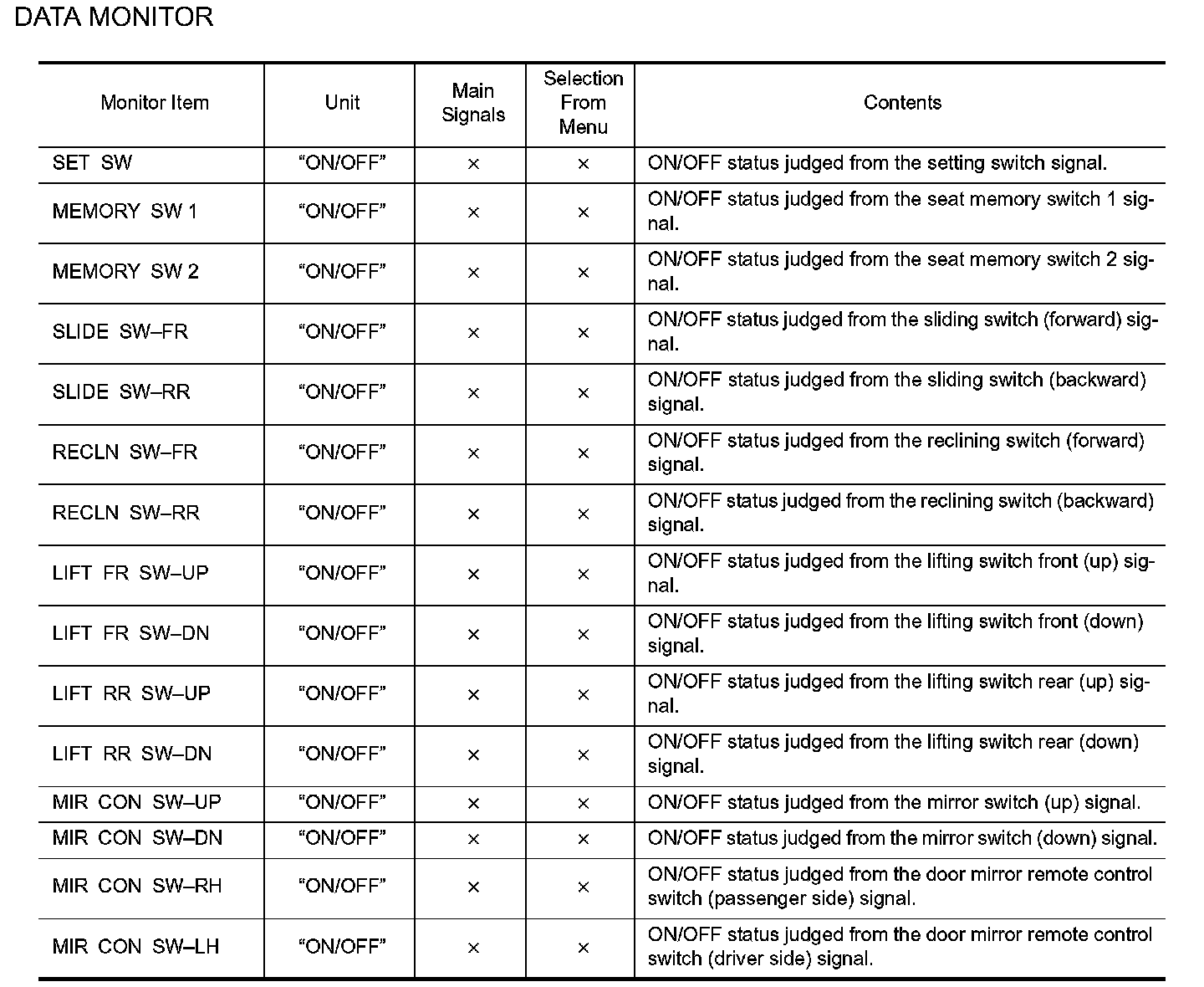

DATA MONITOR

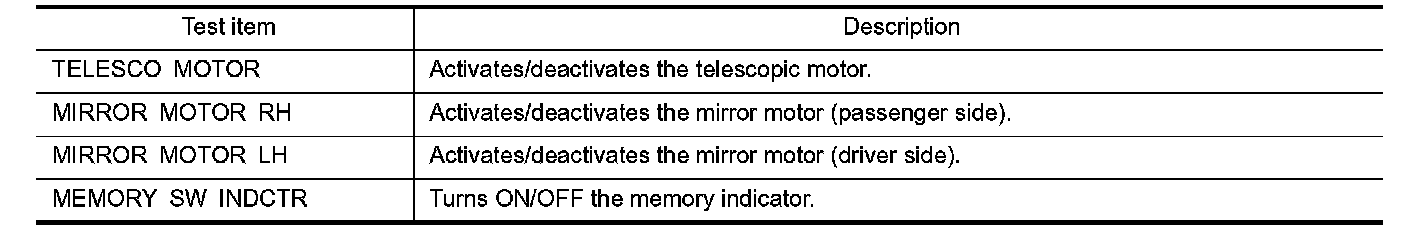

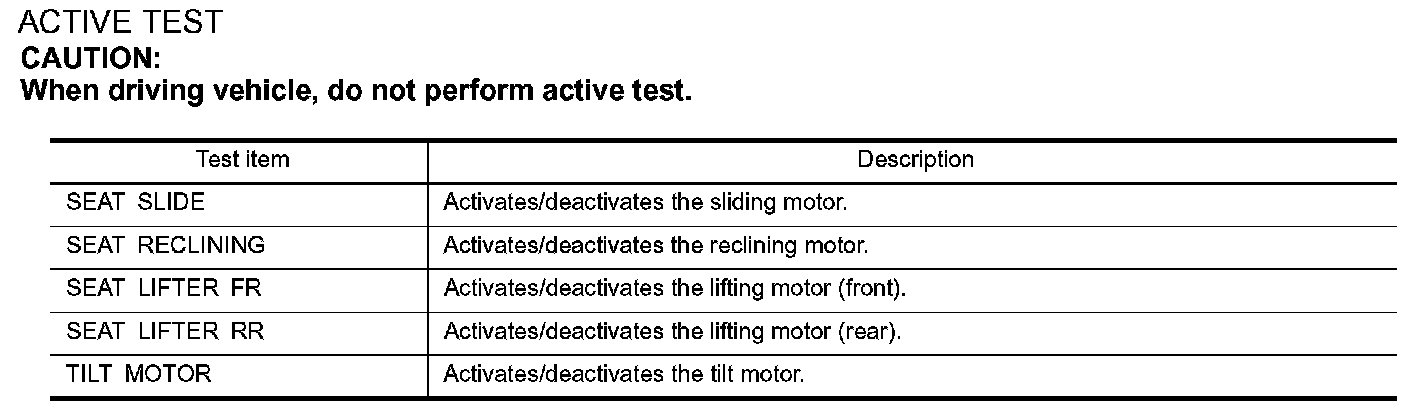

ACTIVE TEST




WORK SUPPORT
