Diagnosis Description

DIAGNOSIS SYSTEM (ICC SENSOR INTEGRATED UNIT)

Diagnosis Description
The ICC system includes the on board self-diagnosis function that allows the technician to check for any trouble codes on the ICC system display by operating the ICC steering switch.

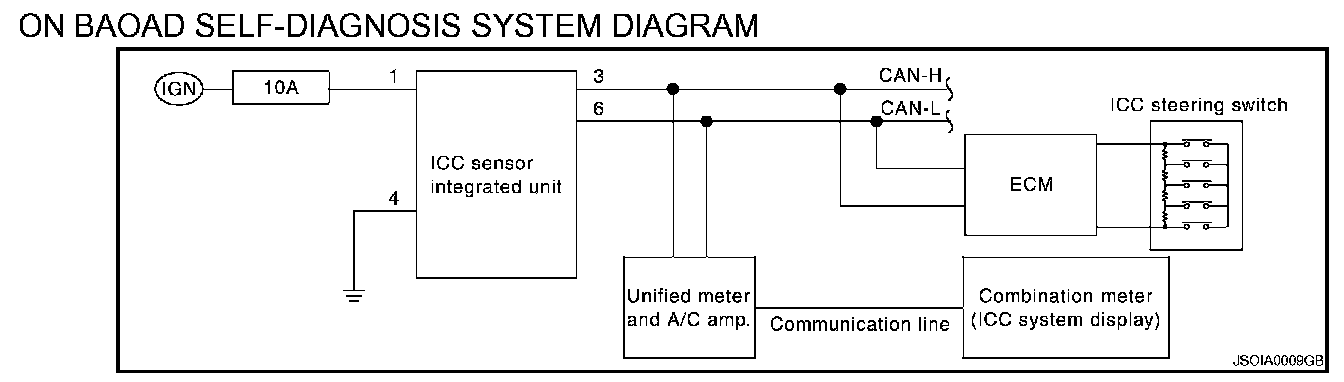

ON BOARD SELF-DIAGNOSIS SYSTEM DIAGRAM
