LASER BEAM AIMING ADJUSTMENT

LASER BEAM AIMING ADJUSTMENT : Description

OUTLINE OF LASER BEAM AIMING ADJUSTMENT
Adjust the laser beam aiming every time the ICC sensor integrated unit is removed or installed.




1. Set up the ICC target board [SST: KV99110100 (J-45718)].

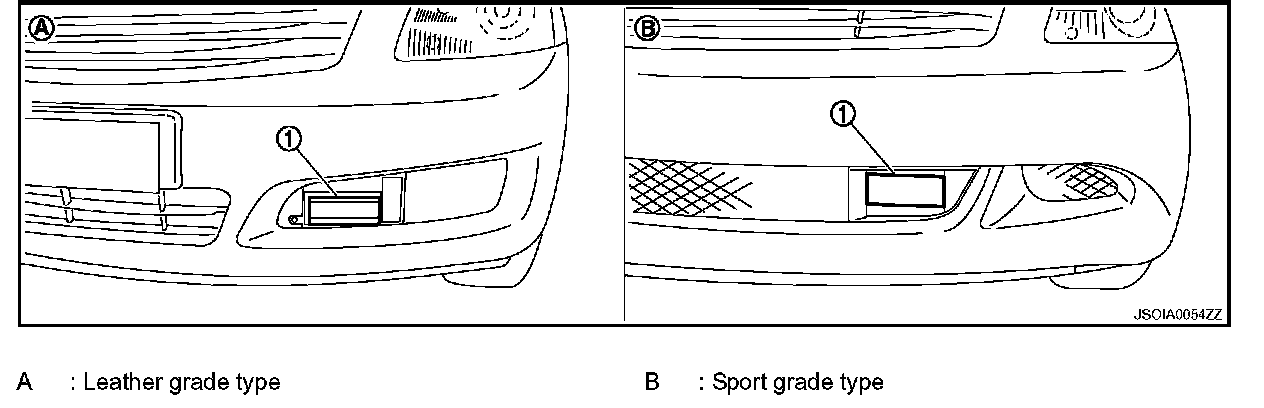

NOTE: The location of the ICC sensor integrated unit (1) differs according to the vehicle grade. So the ICC target board setting position varies accordingly.

2. Adjust the sensor following the procedure on CONSULT-III. (Turn manually the screw for up-down position adjustment. ICC sensor integrated unit automatically adjust the right-left position.)

CAUTIONARY POINTS FOR LASER BEAM AIMING

CAUTION:
- Adjust laser beam aiming at a horizontal place as far as 12 m (39 ft) forward the vehicle can be seen.
- Adjust laser beam aiming 5 seconds after starting engine.
- Never view ICC sensor integrated unit body window directly during laser beam aiming adjustment.
- Follow the CONSULT-III when adjusting the laser beam aiming (laser beam aiming adjustment cannot be operated without CONSULT-III).
- Never ride on vehicle during laser beam aiming adjustment.
- Idle and turn headlamps OFF during laser beam aiming adjustment.




LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Preparation)

Step 1:

Step 1 (Continued)-2:

Step 2 (Continued)-4:

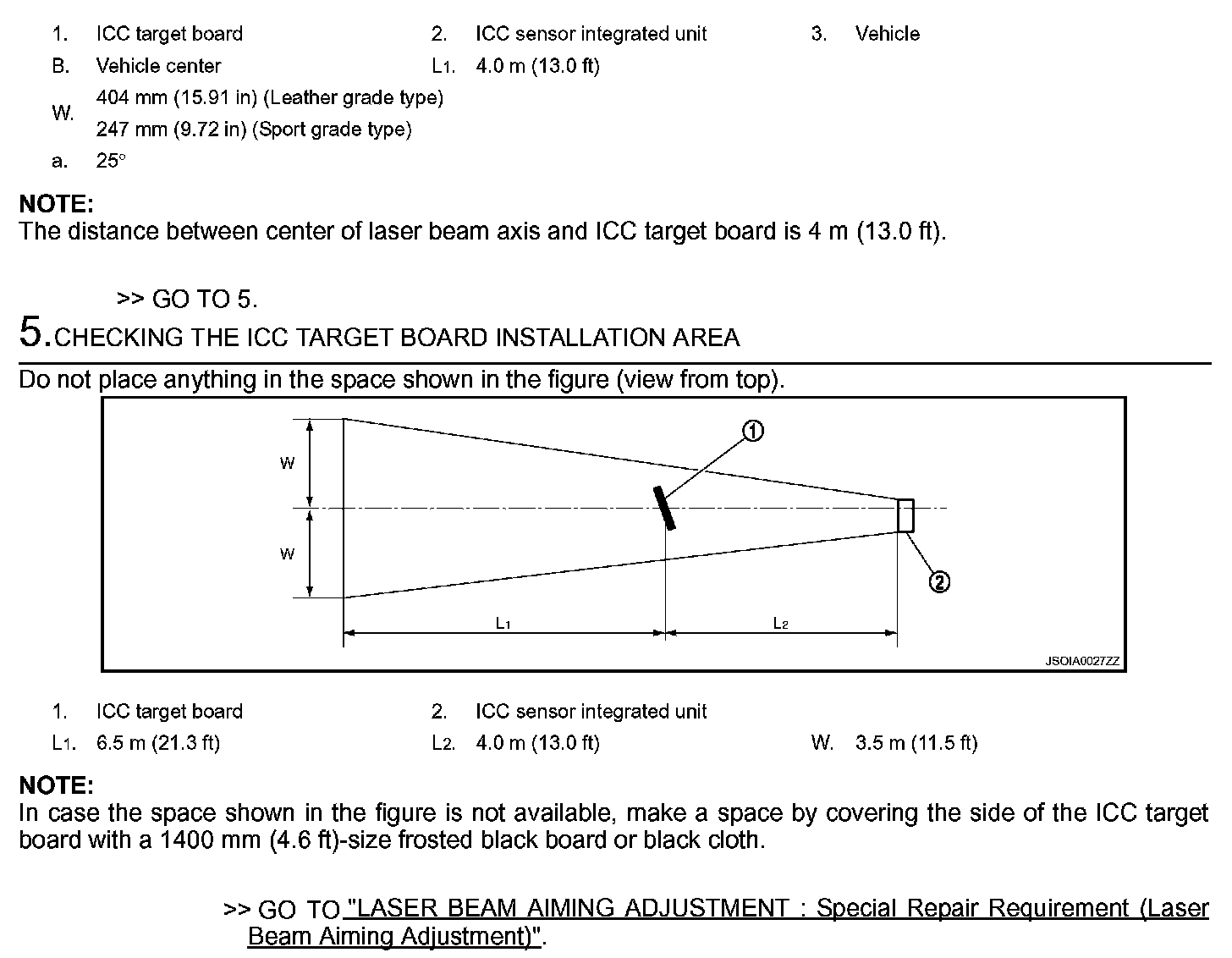

Step 4 (Continued)-5:

LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Setting The ICC Target Board)

Step 1:

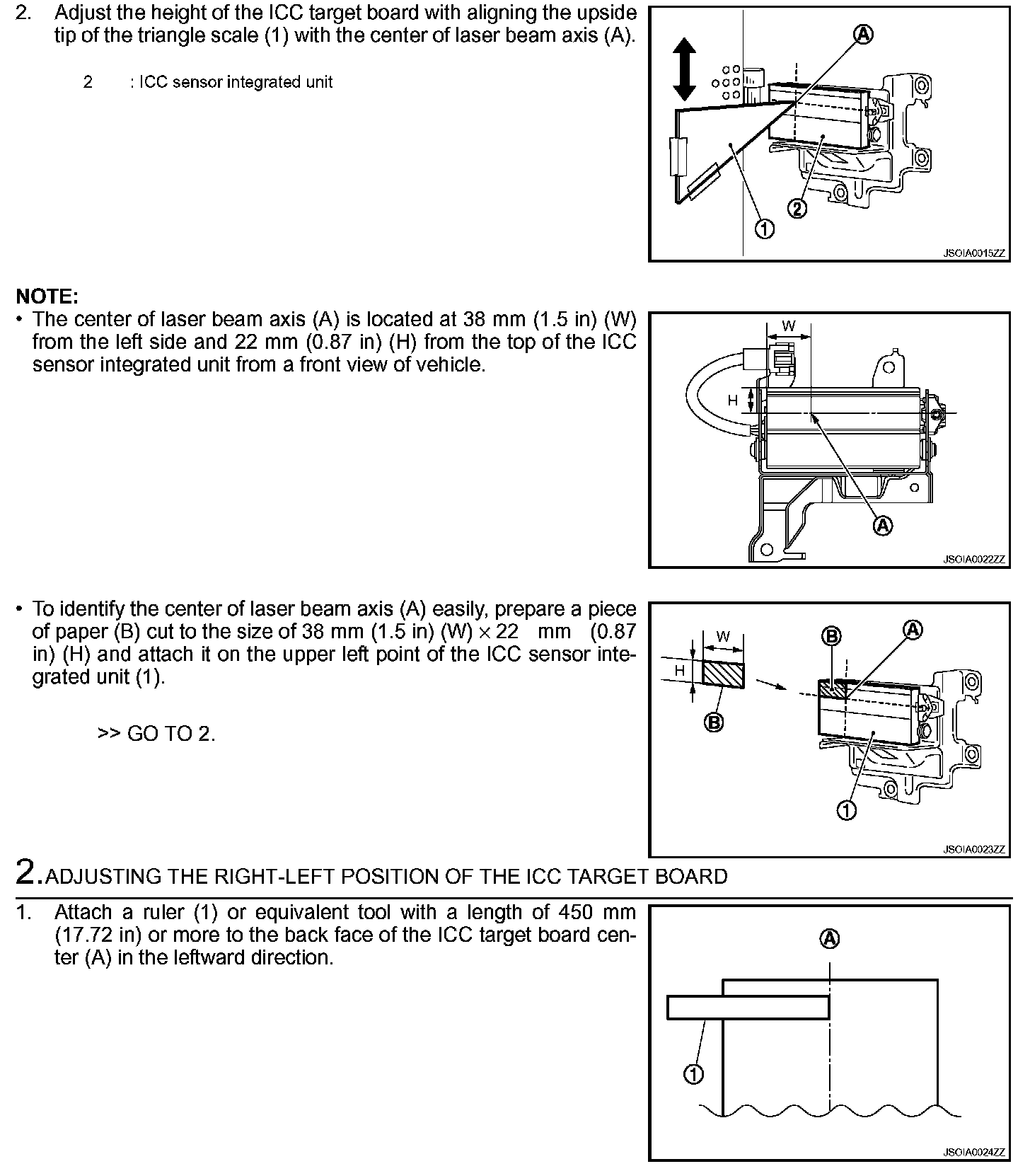

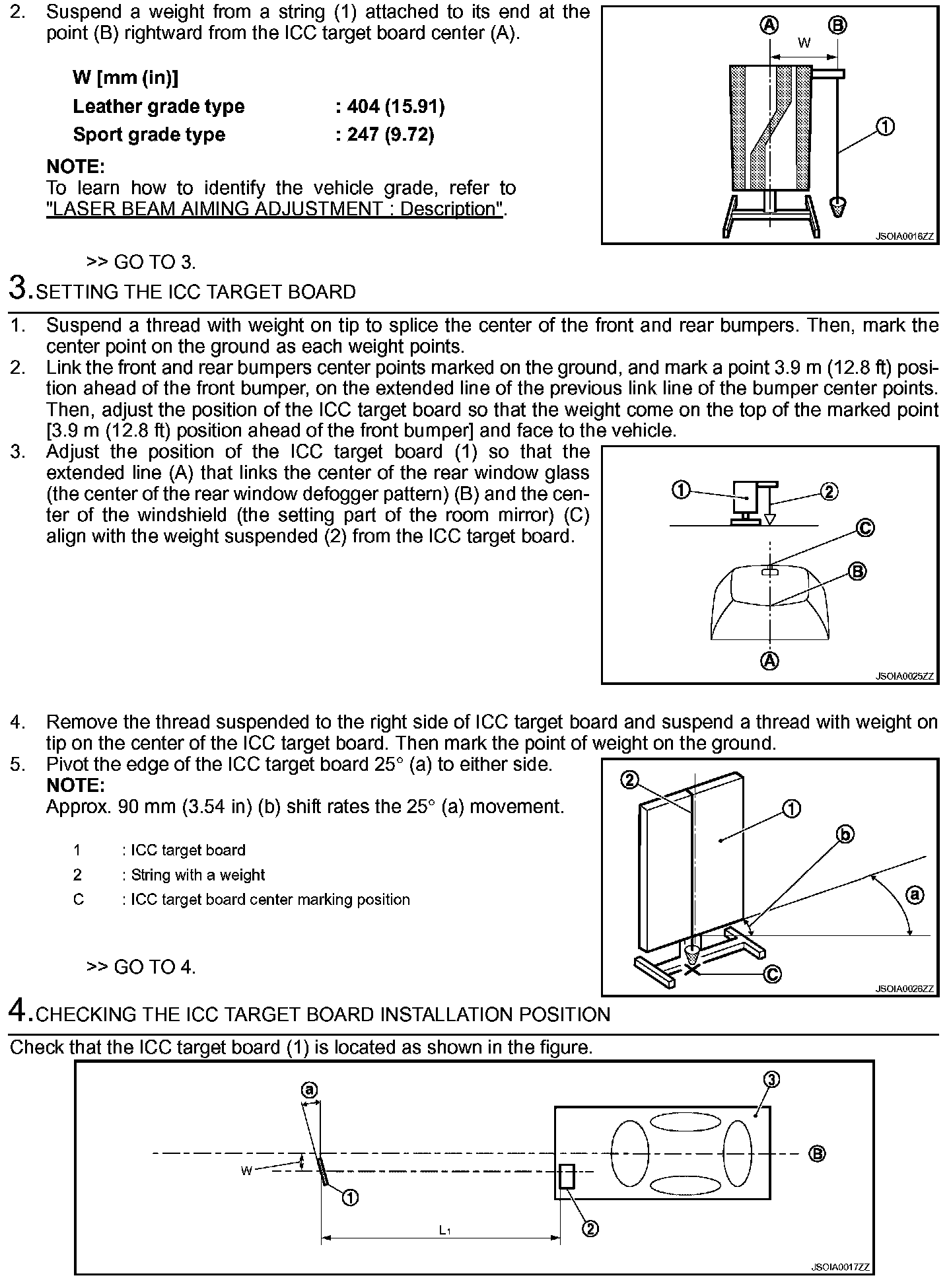

Step 1 (Continued)-3:

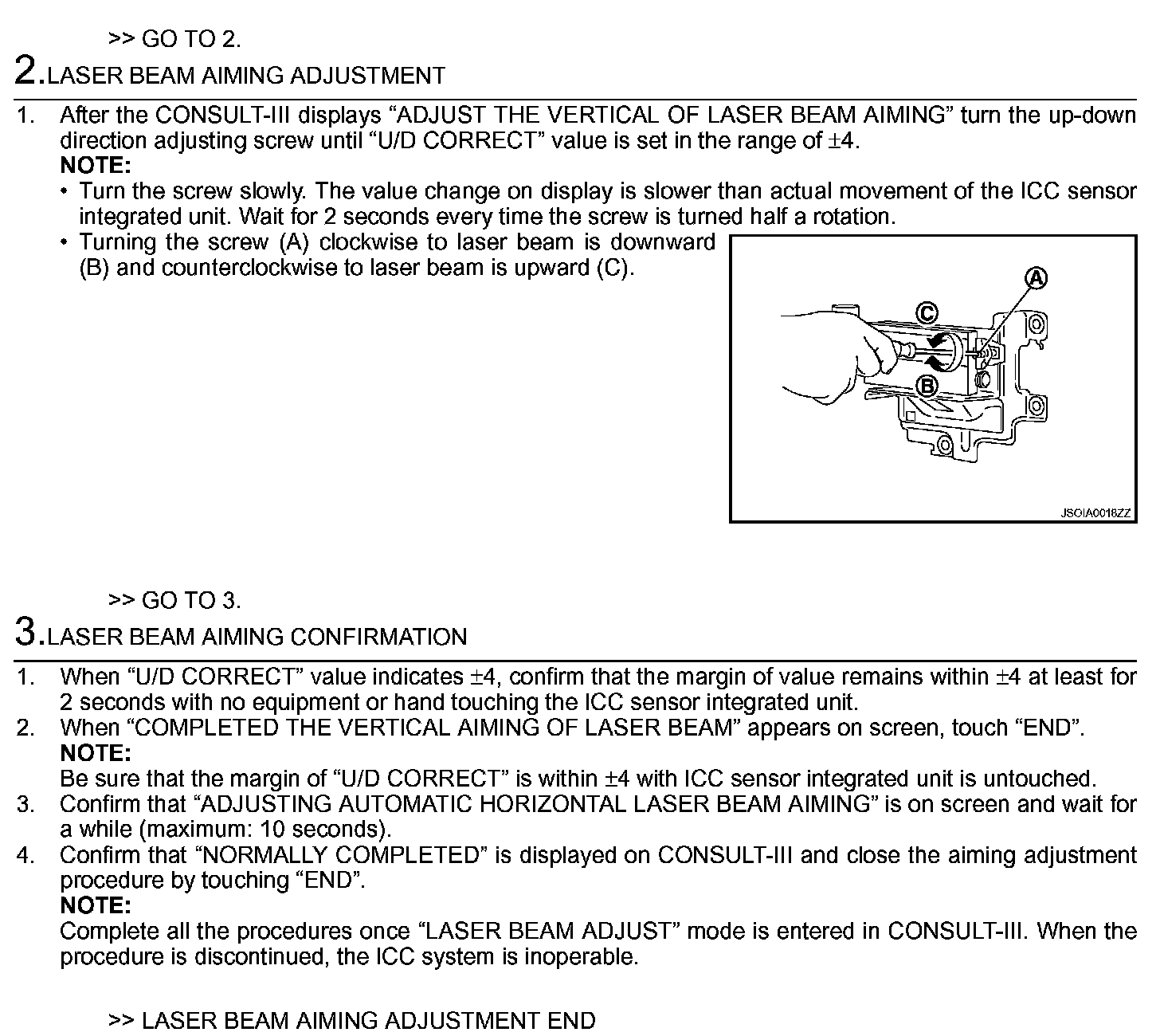

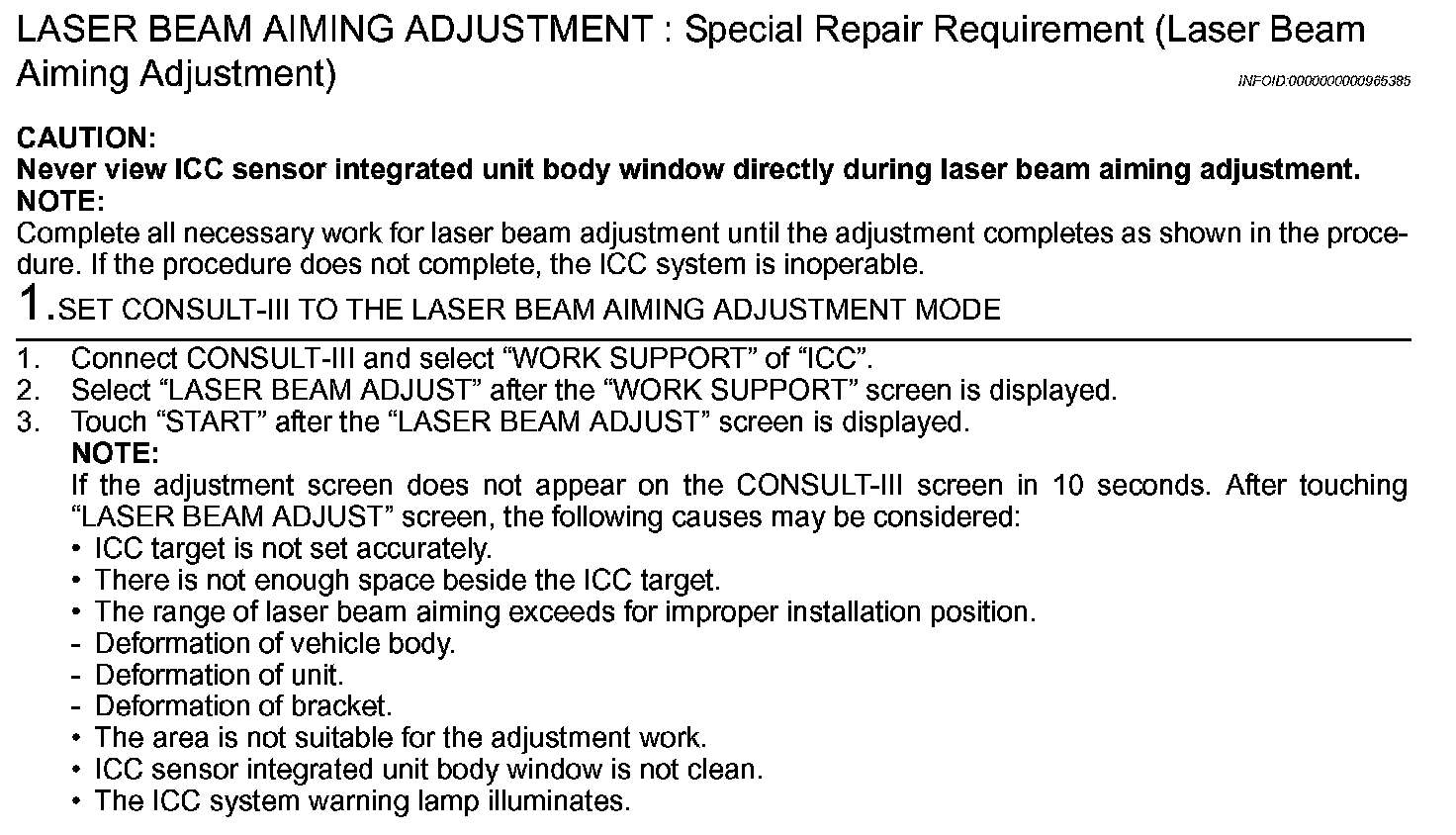

LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Laser Beam Aiming Adjustment)
