Cellular Phone

TEL ADAPTER UNIT

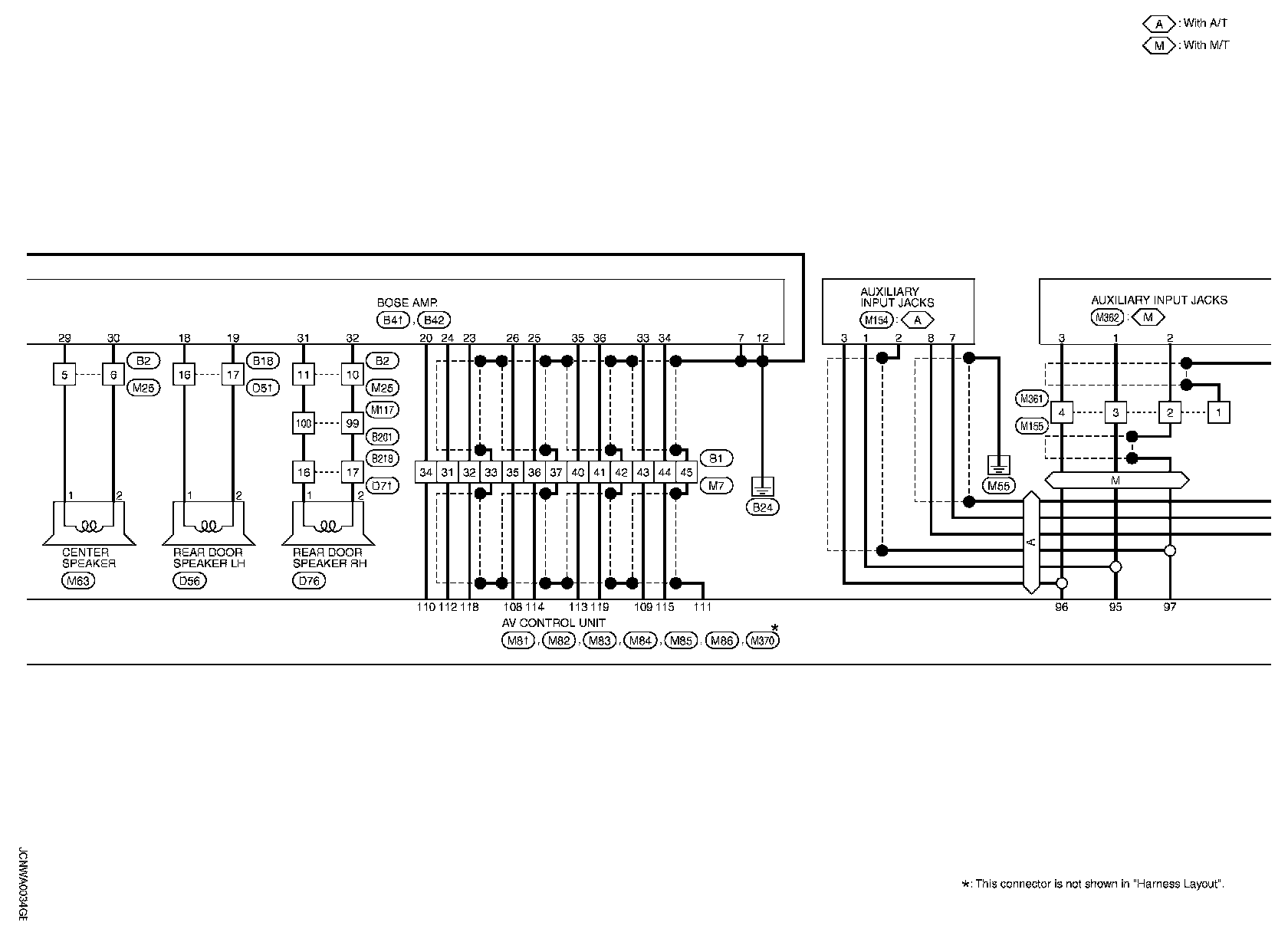

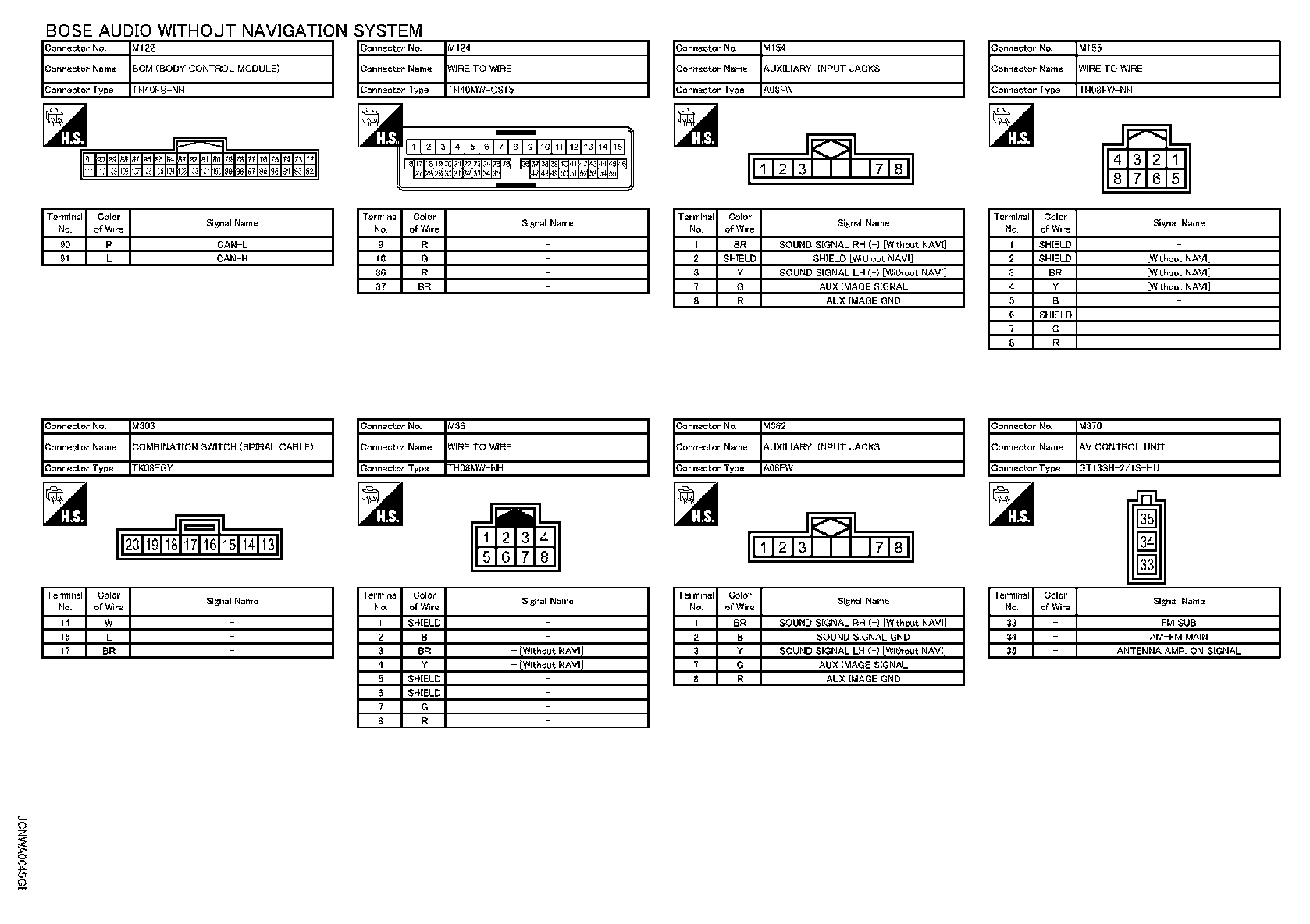

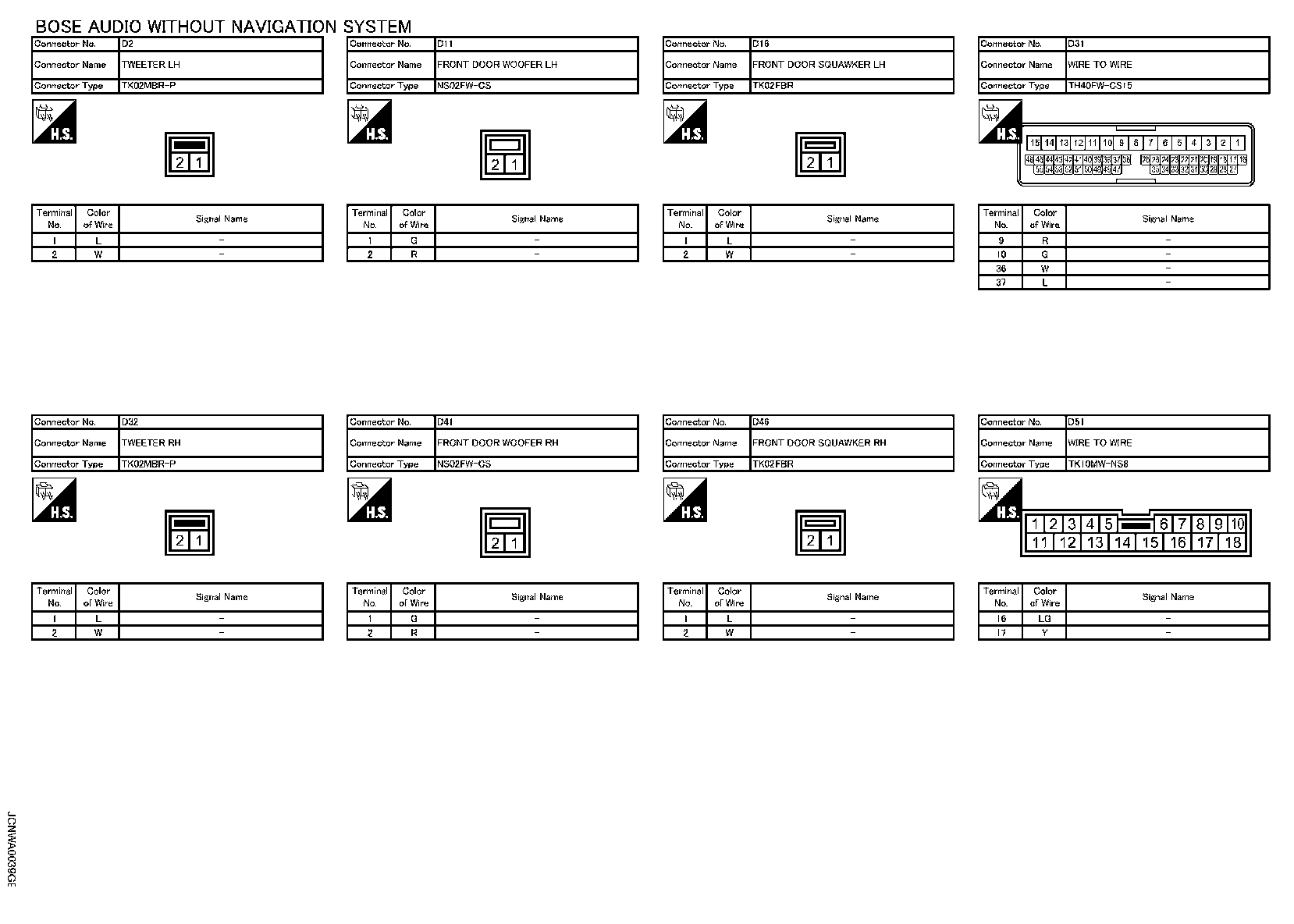

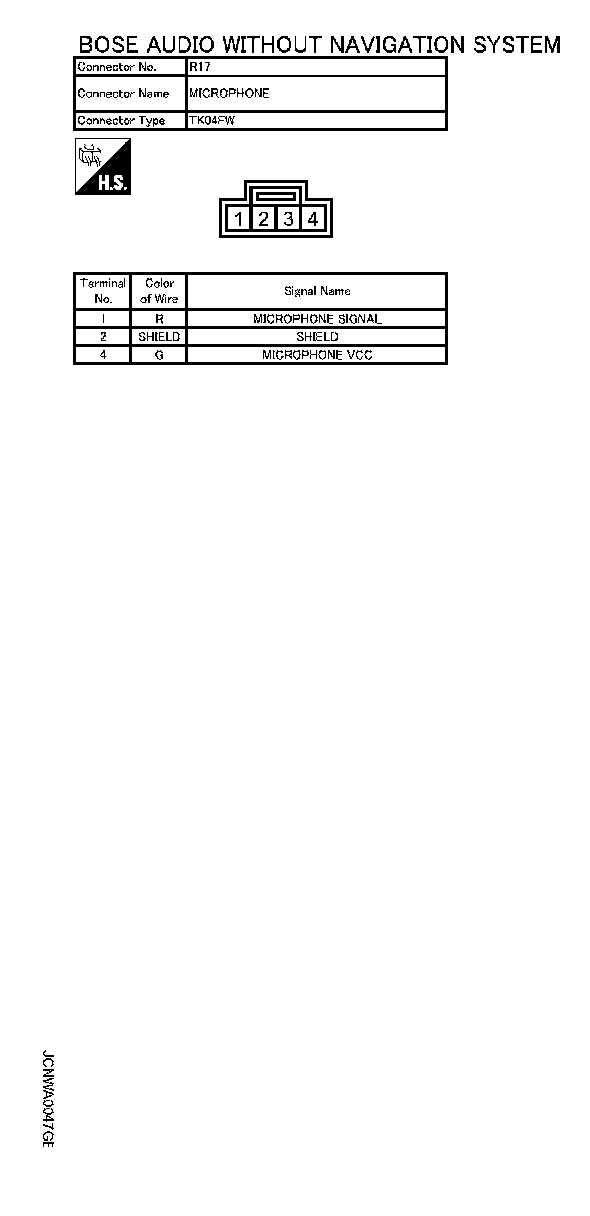

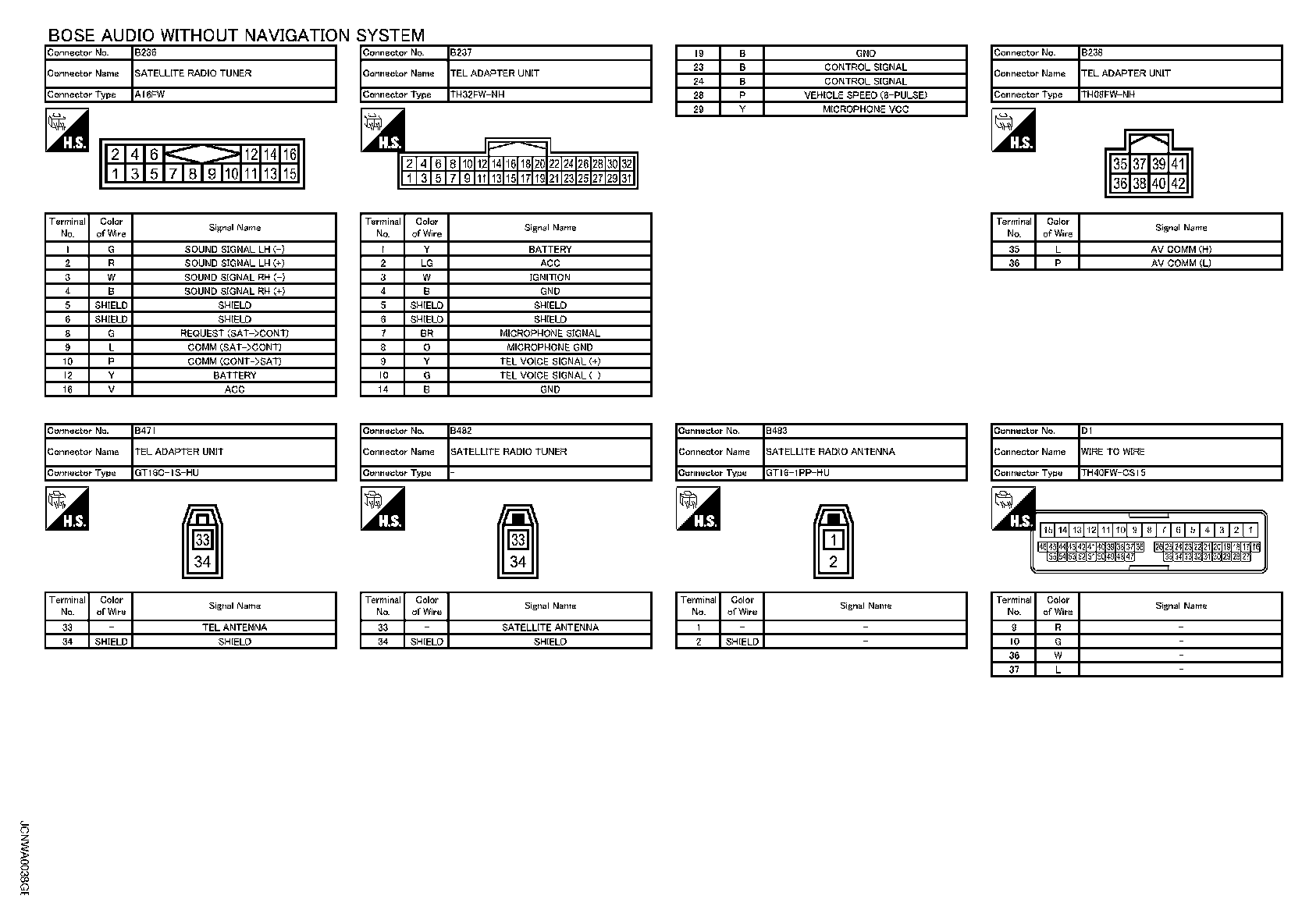

Wiring Diagram - Bose Audio Without Navigation System (Part 1):

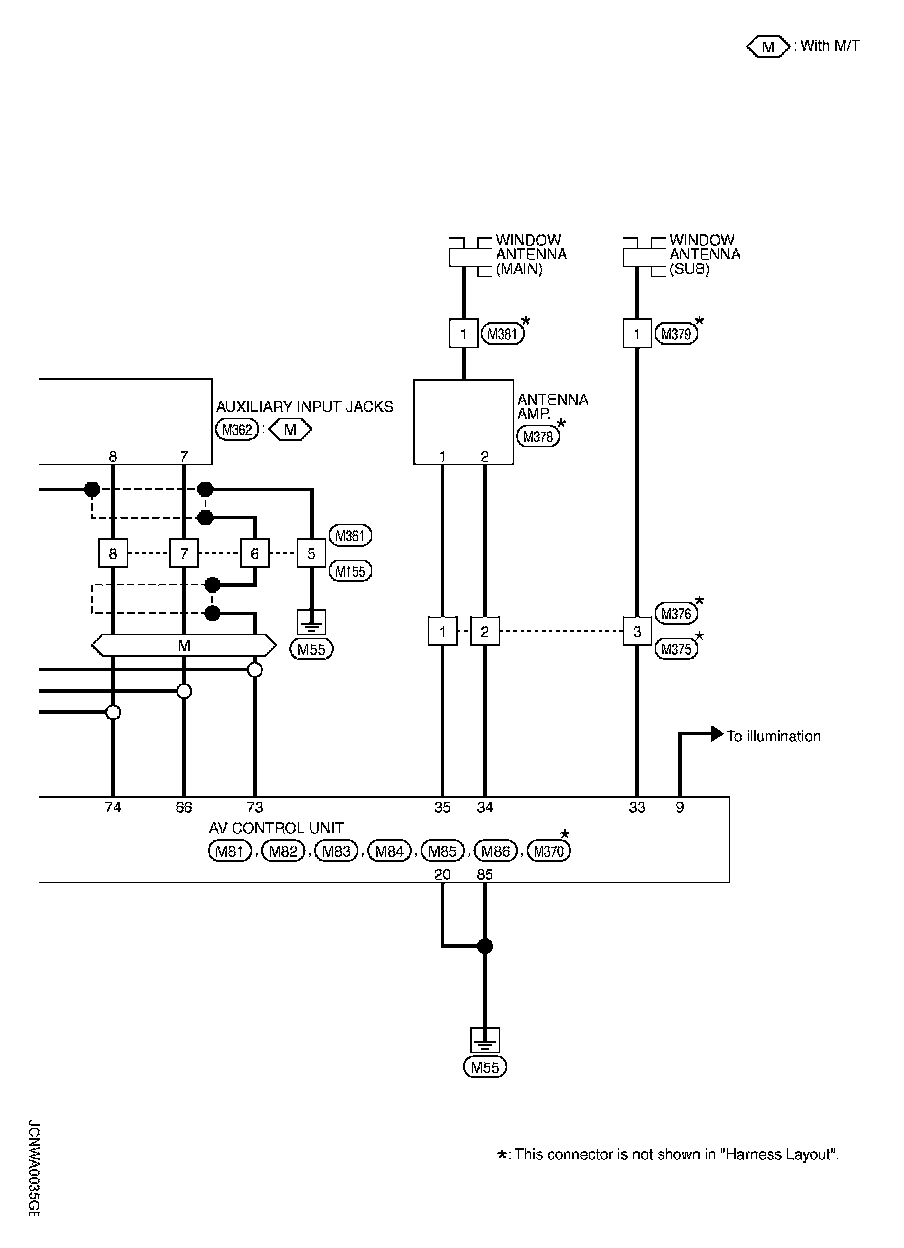

Wiring Diagram - Bose Audio Without Navigation System (Part 2):

Wiring Diagram - Bose Audio Without Navigation System (Part 3):

Wiring Diagram - Bose Audio Without Navigation System (Part 4):

Wiring Diagram - Bose Audio Without Navigation System (Part 5):

Wiring Diagram - Bose Audio Without Navigation System (Part 6):

Wiring Diagram - Bose Audio Without Navigation System (Part 7):

Wiring Diagram - Bose Audio Without Navigation System (Part 8):

Wiring Diagram - Bose Audio Without Navigation System (Part 9):

Wiring Diagram - Bose Audio Without Navigation System (Part 10):

Wiring Diagram - Bose Audio Without Navigation System (Part 11):

Wiring Diagram - Bose Audio Without Navigation System (Part 12):

Wiring Diagram - Bose Audio Without Navigation System (Part 13):

Wiring Diagram - Bose Audio Without Navigation System (Part 14):

Wiring Diagram - Bose Audio Without Navigation System (Part 15):

Wiring Diagram - Bose Audio Without Navigation System (Part 16):

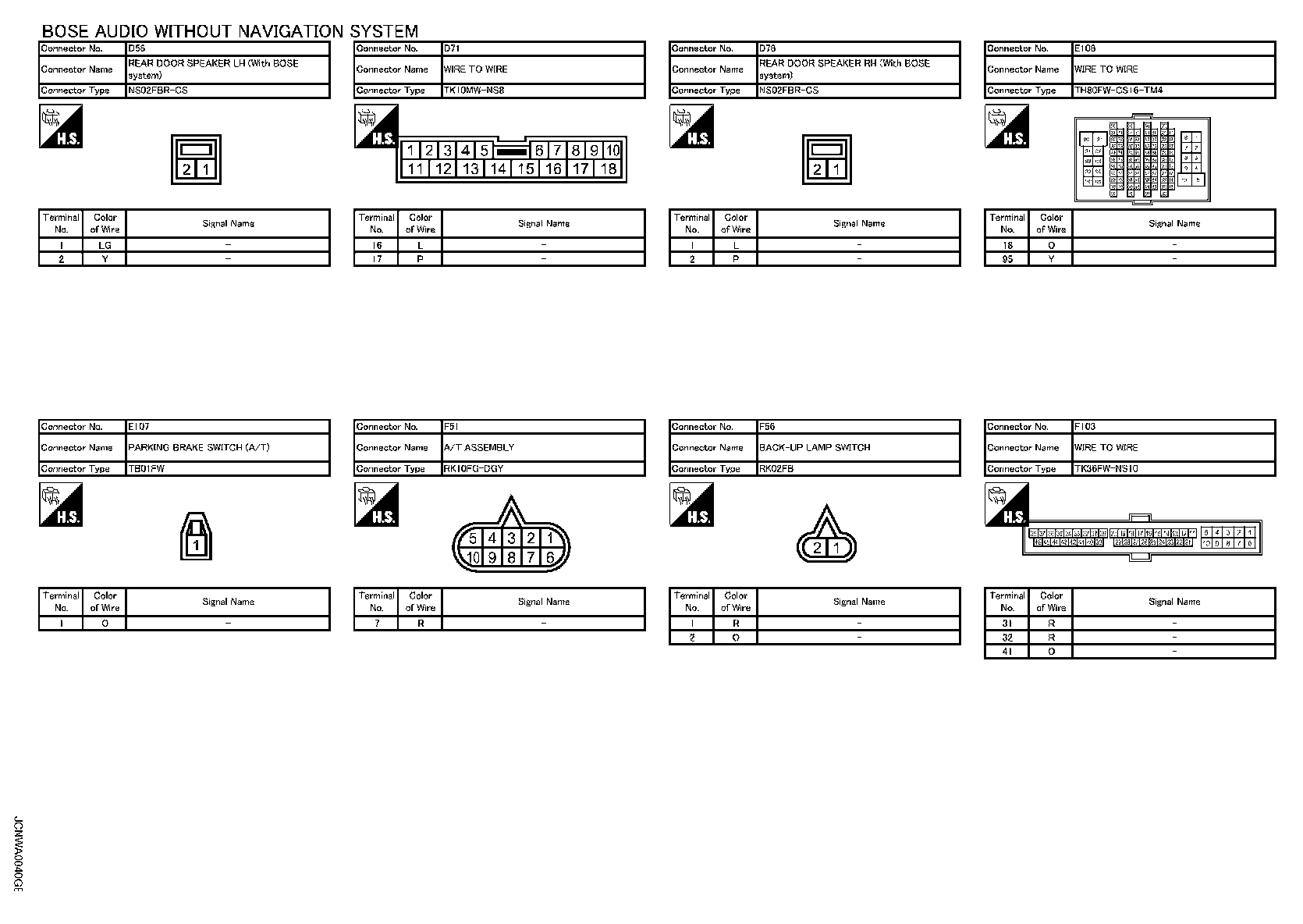

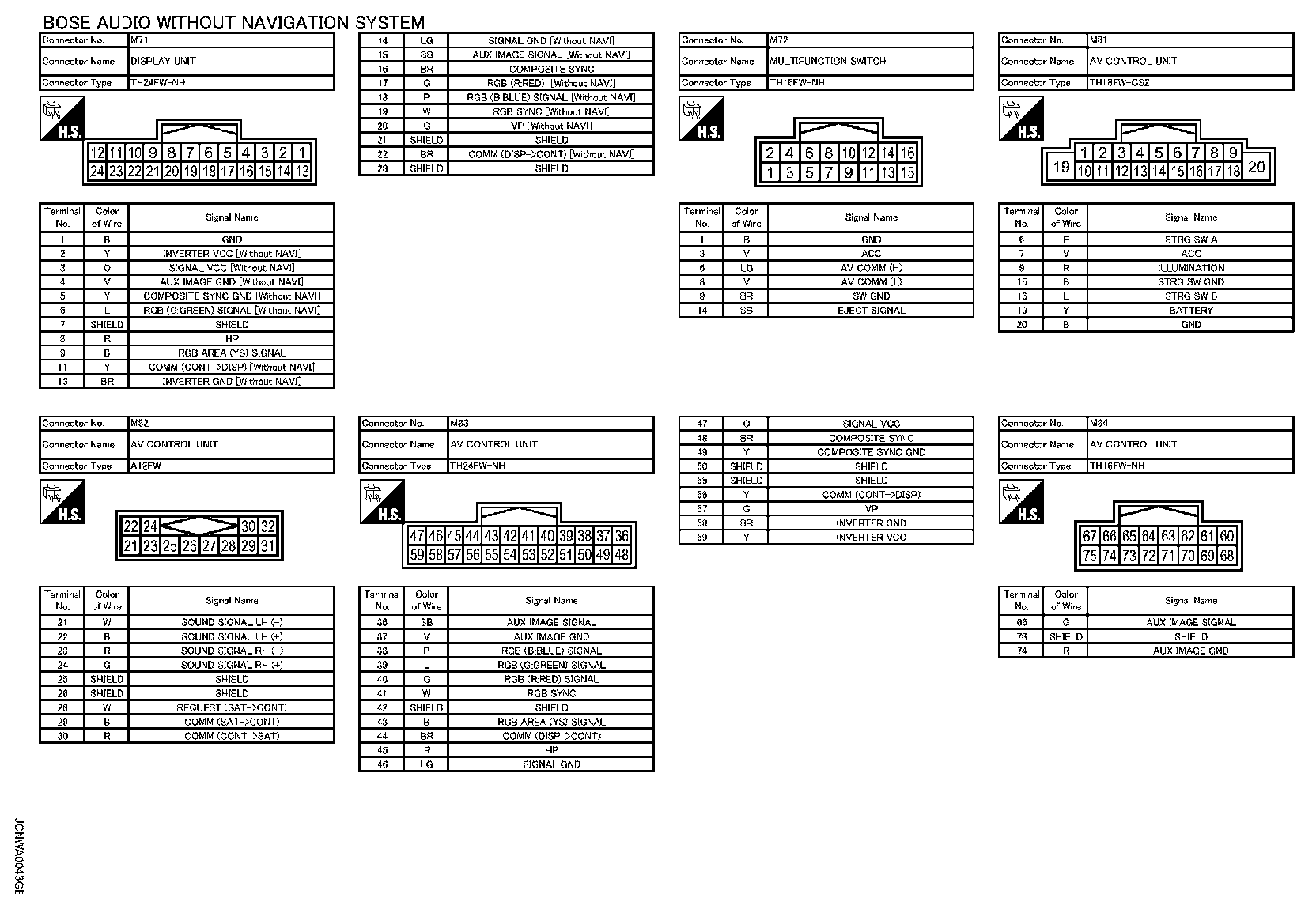

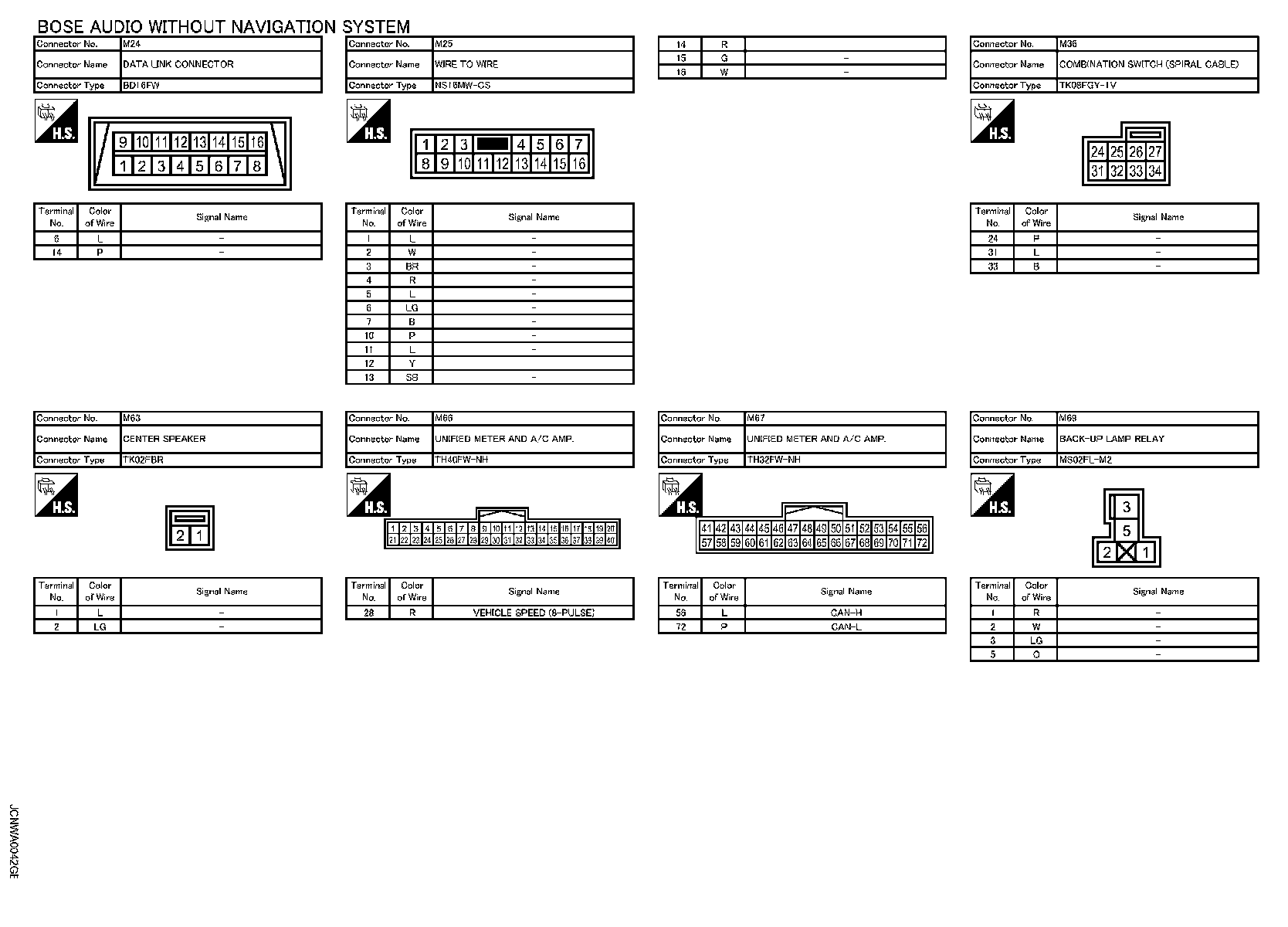

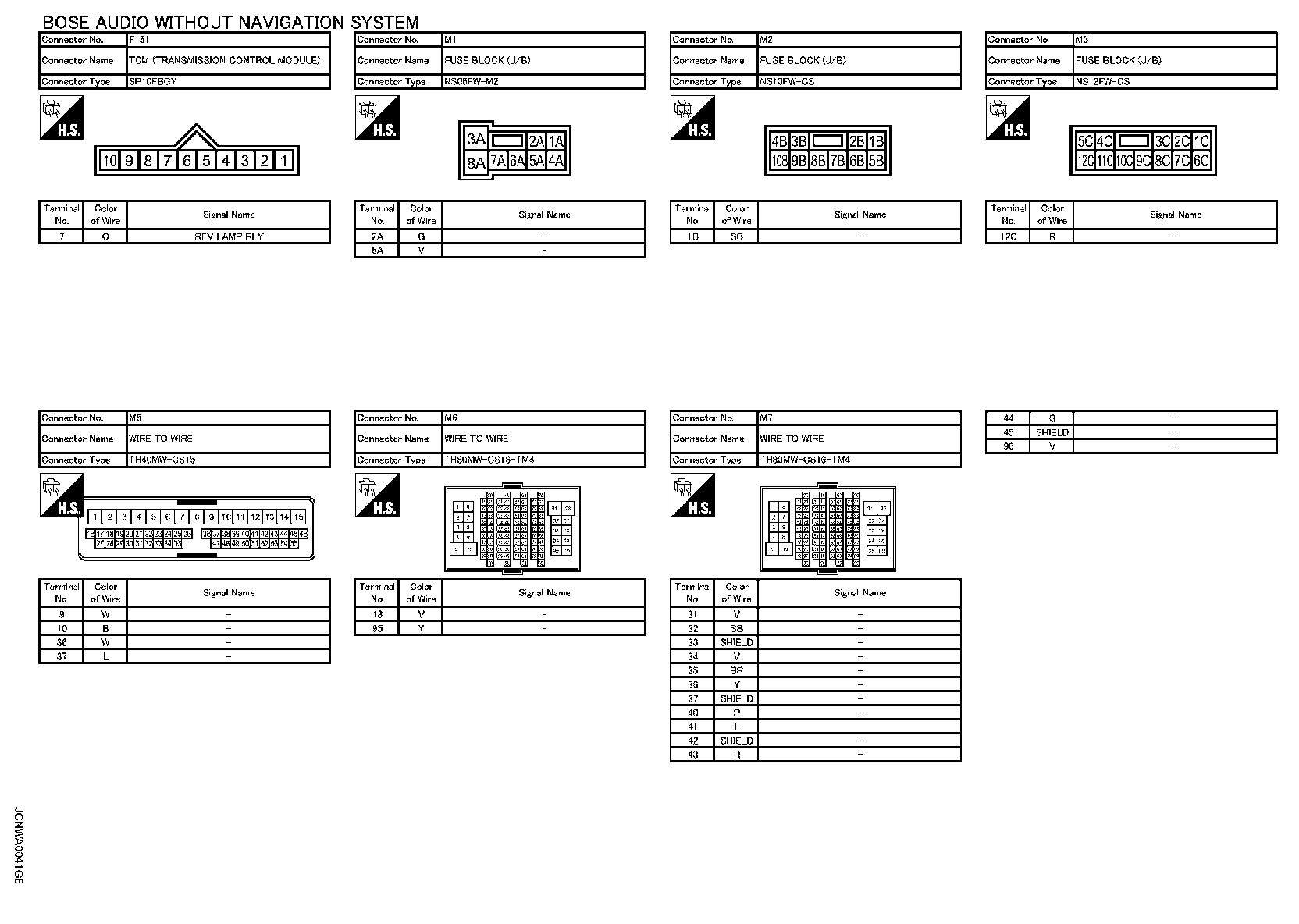

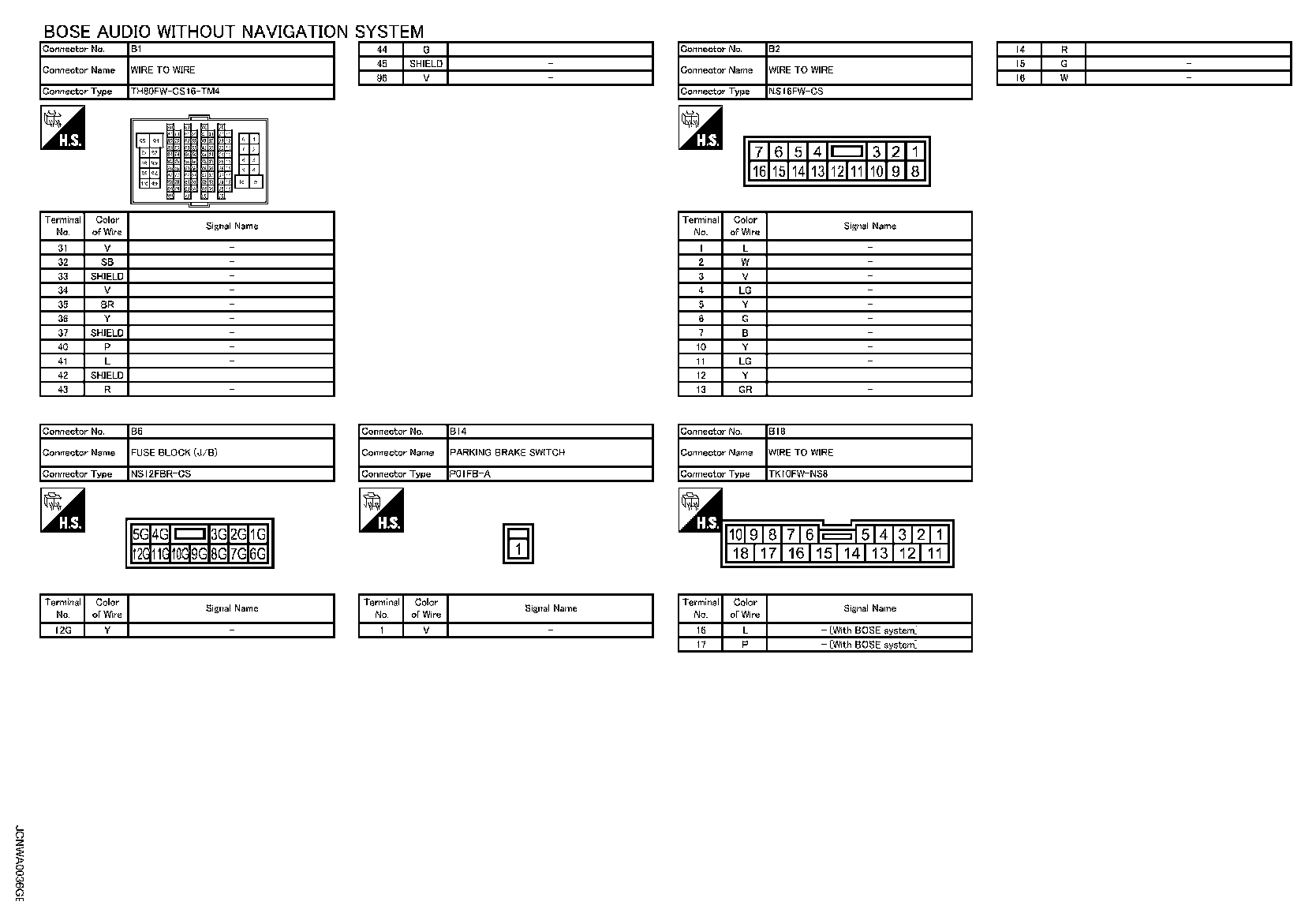

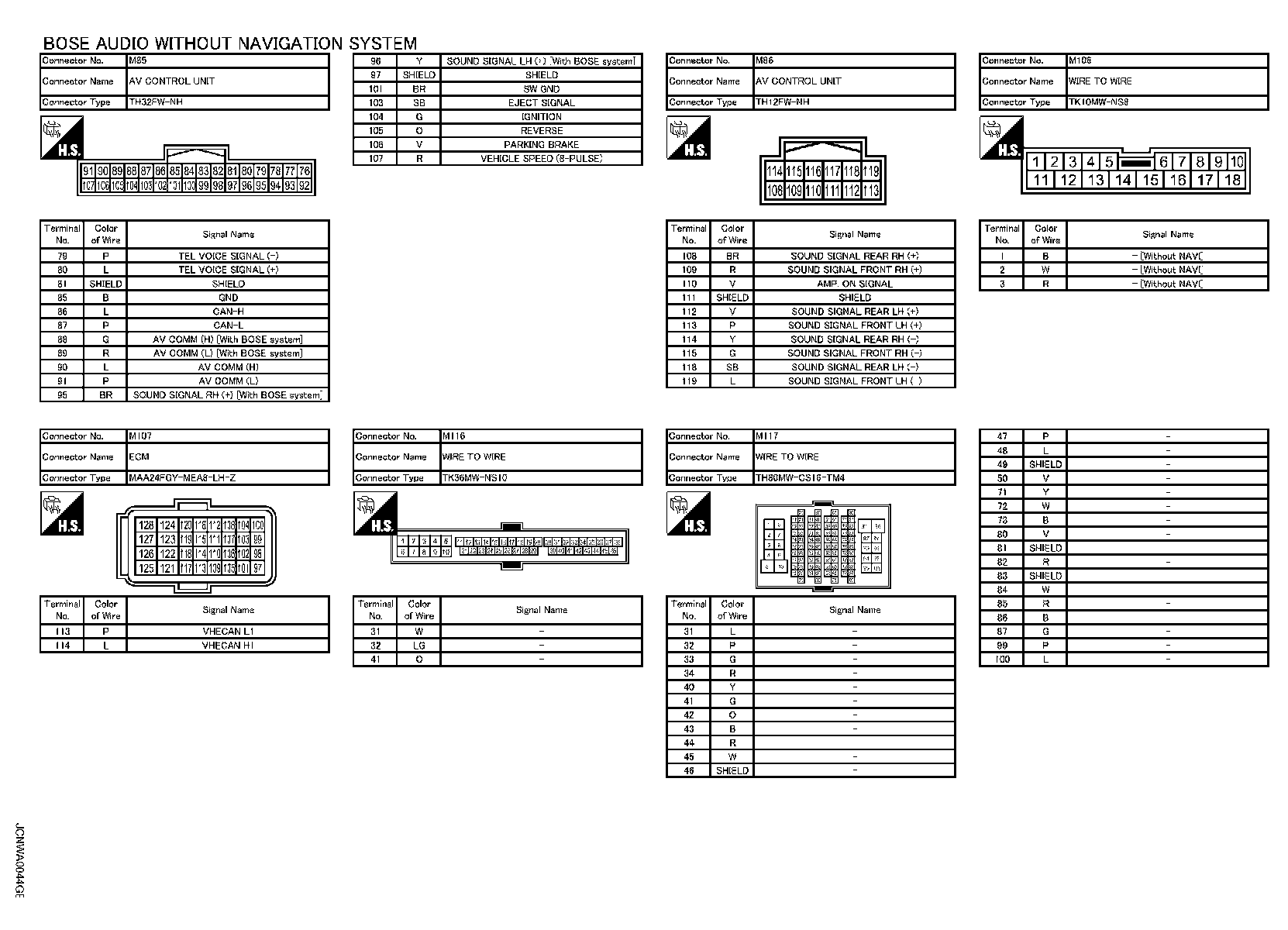

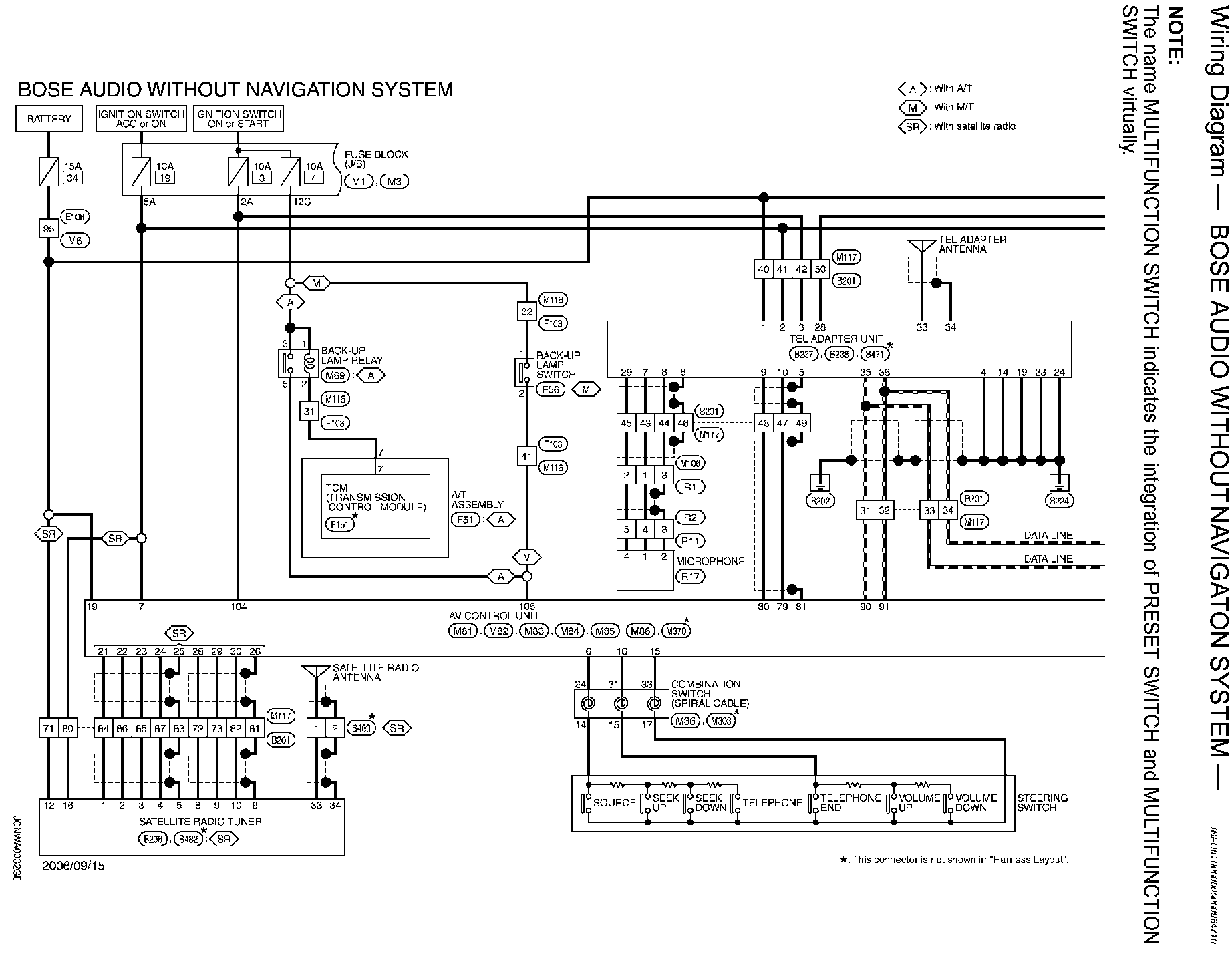

Wiring Diagram - BOSE AUDIO WITHOUT NAVIGATION SYSTEM
