System Diagram
CHARGING SYSTEM

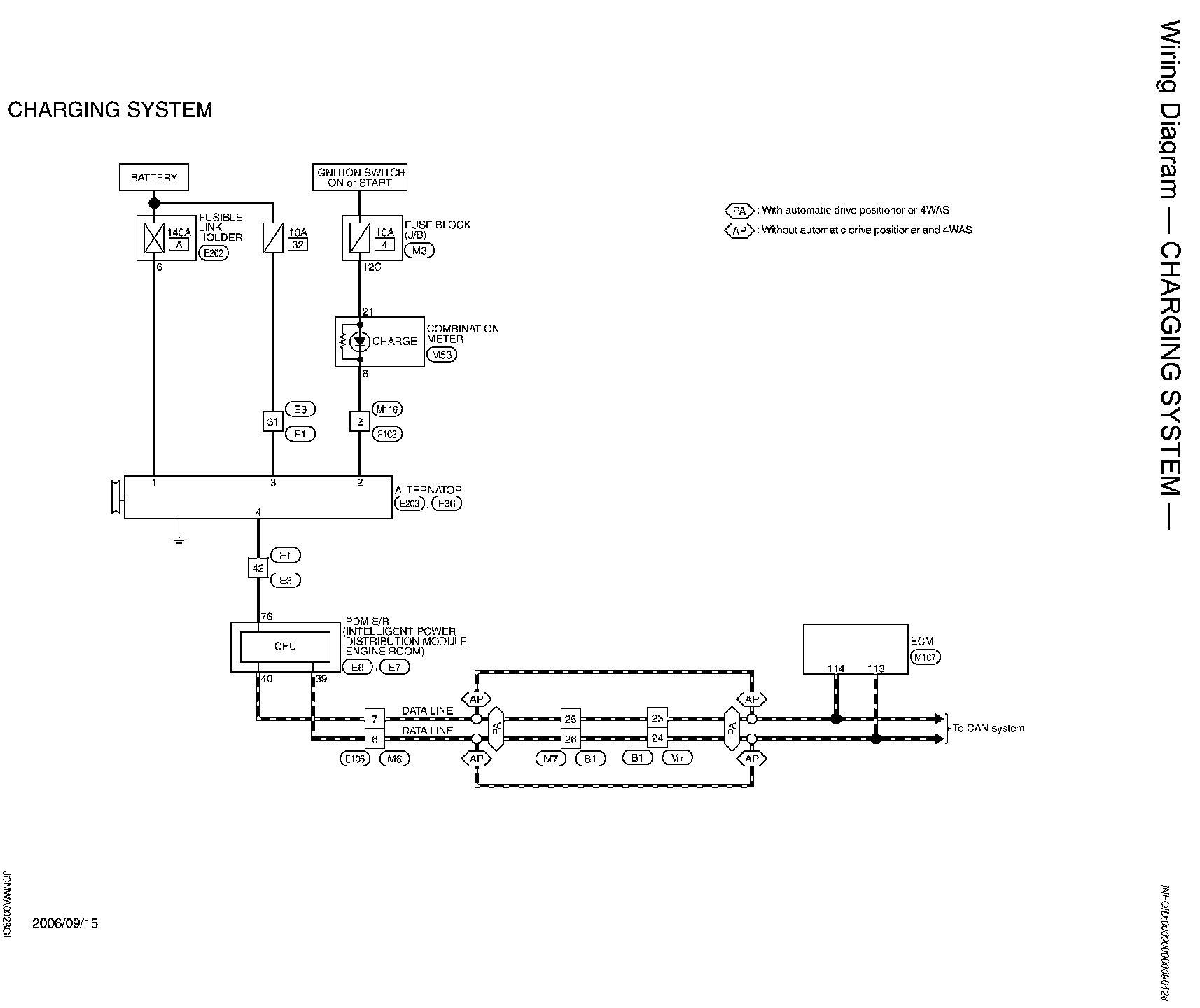

Wiring Diagram - Charging System (Part 1):

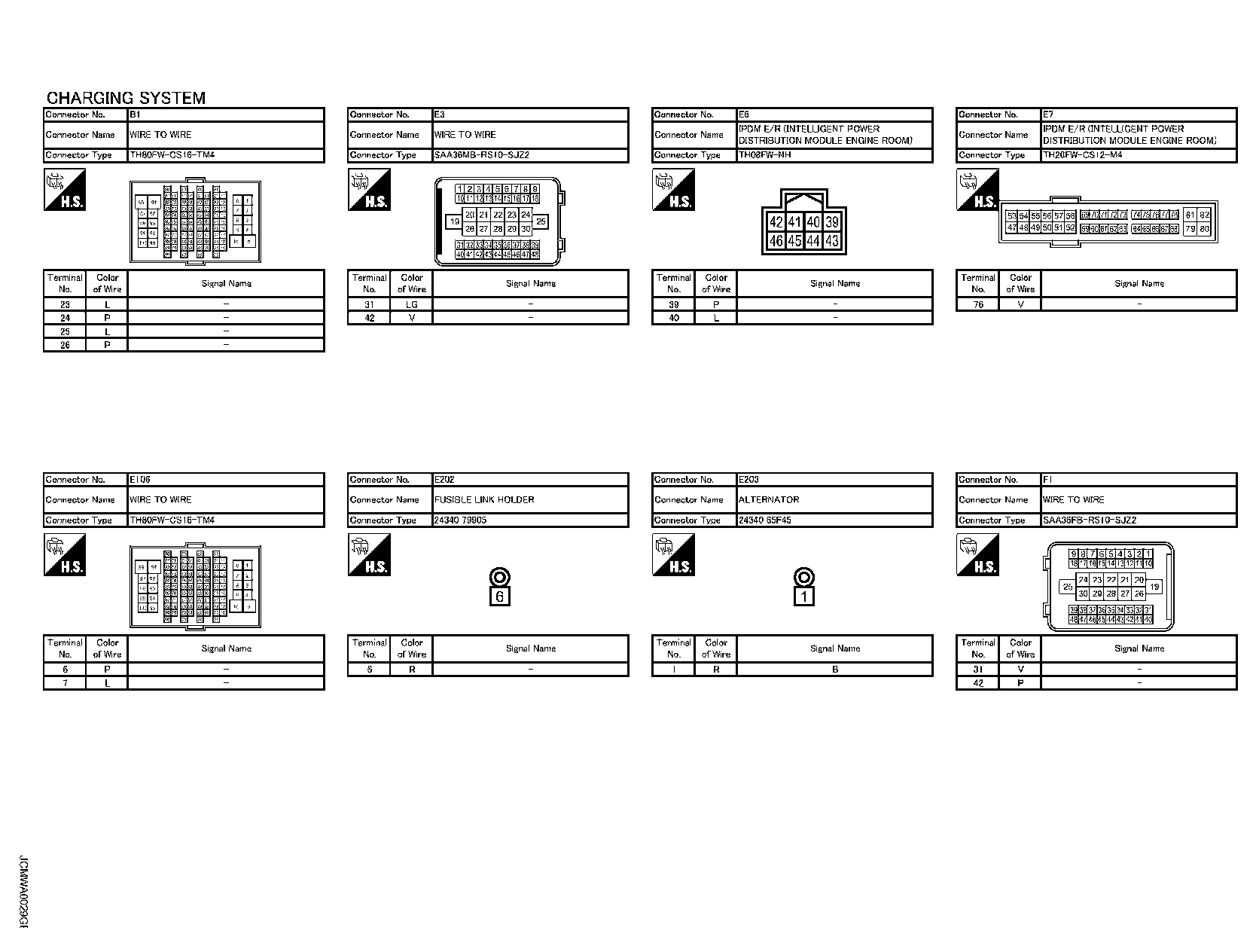

Wiring Diagram - Charging System (Part 2):
Wiring Diagram - Charging System (Part 3):
Wiring Diagram -
CHARGING SYSTEM
