Cigarette Lighter

CIGARETTE LIGHTER

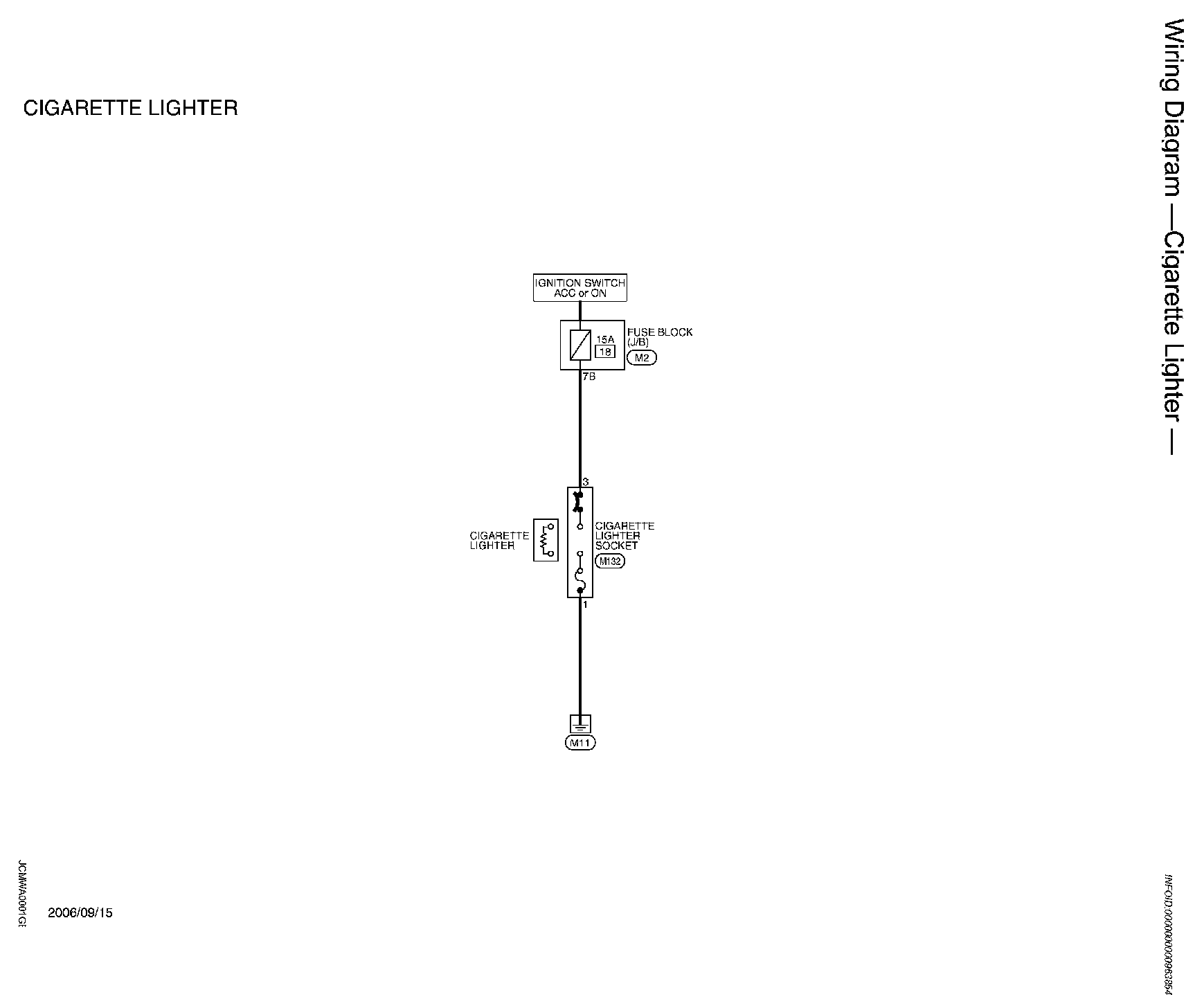

Wiring Diagram - Cigarette Lighter (Part 1):

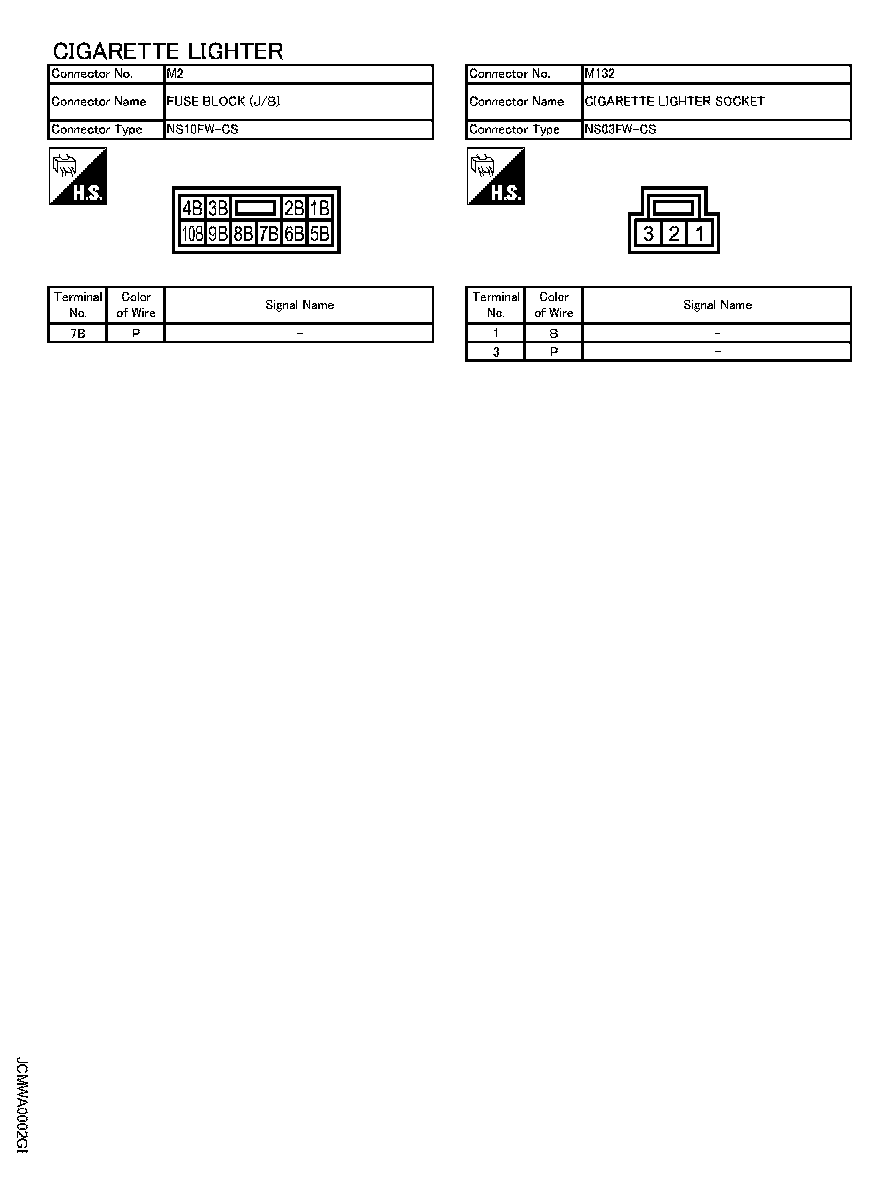

Wiring Diagram - Cigarette Lighter (Part 2):




Wiring Diagram - Cigarette Lighter -
