Power Door Lock System

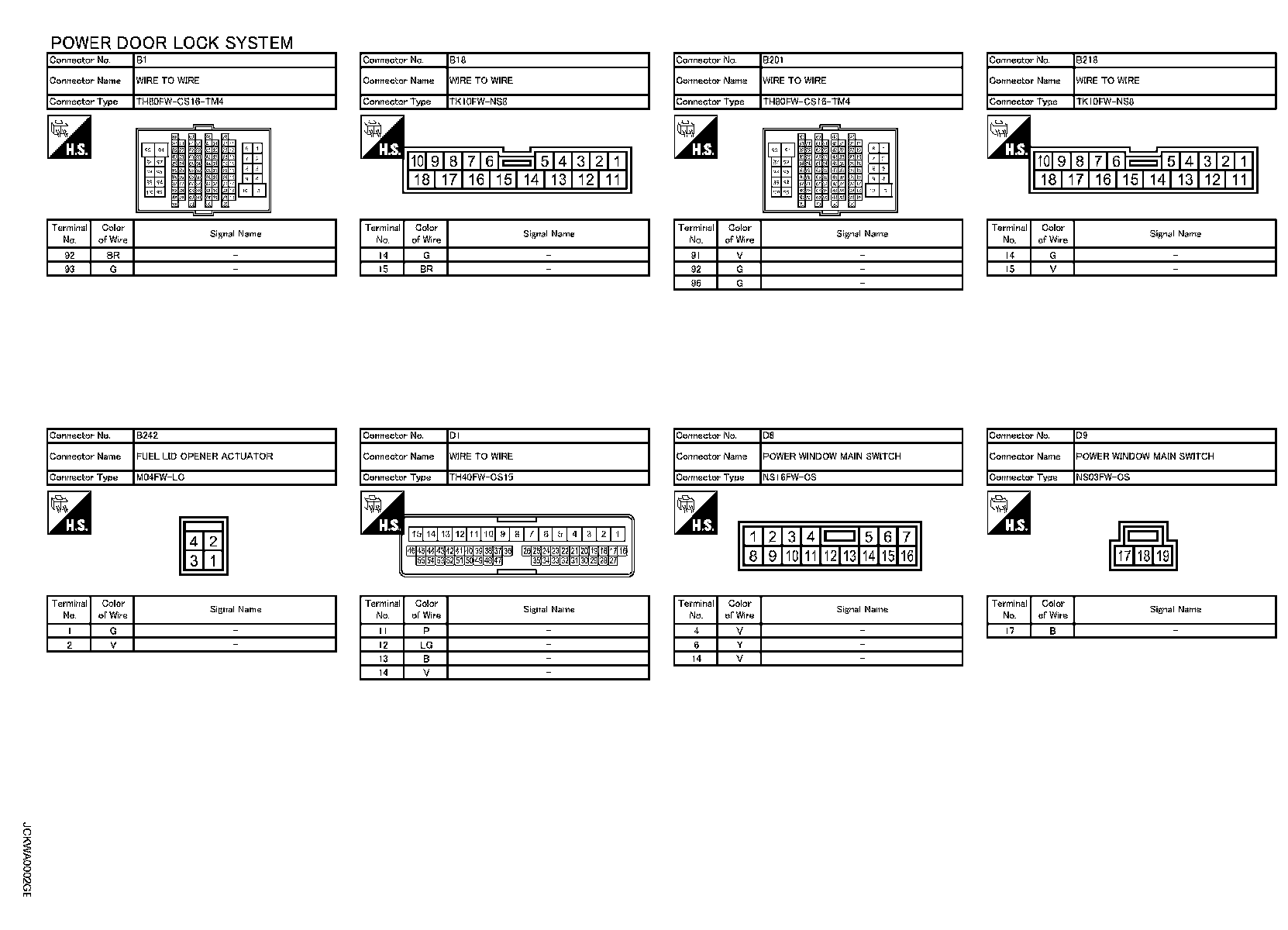

Wiring Diagram - Power Door Lock System (Part 1):

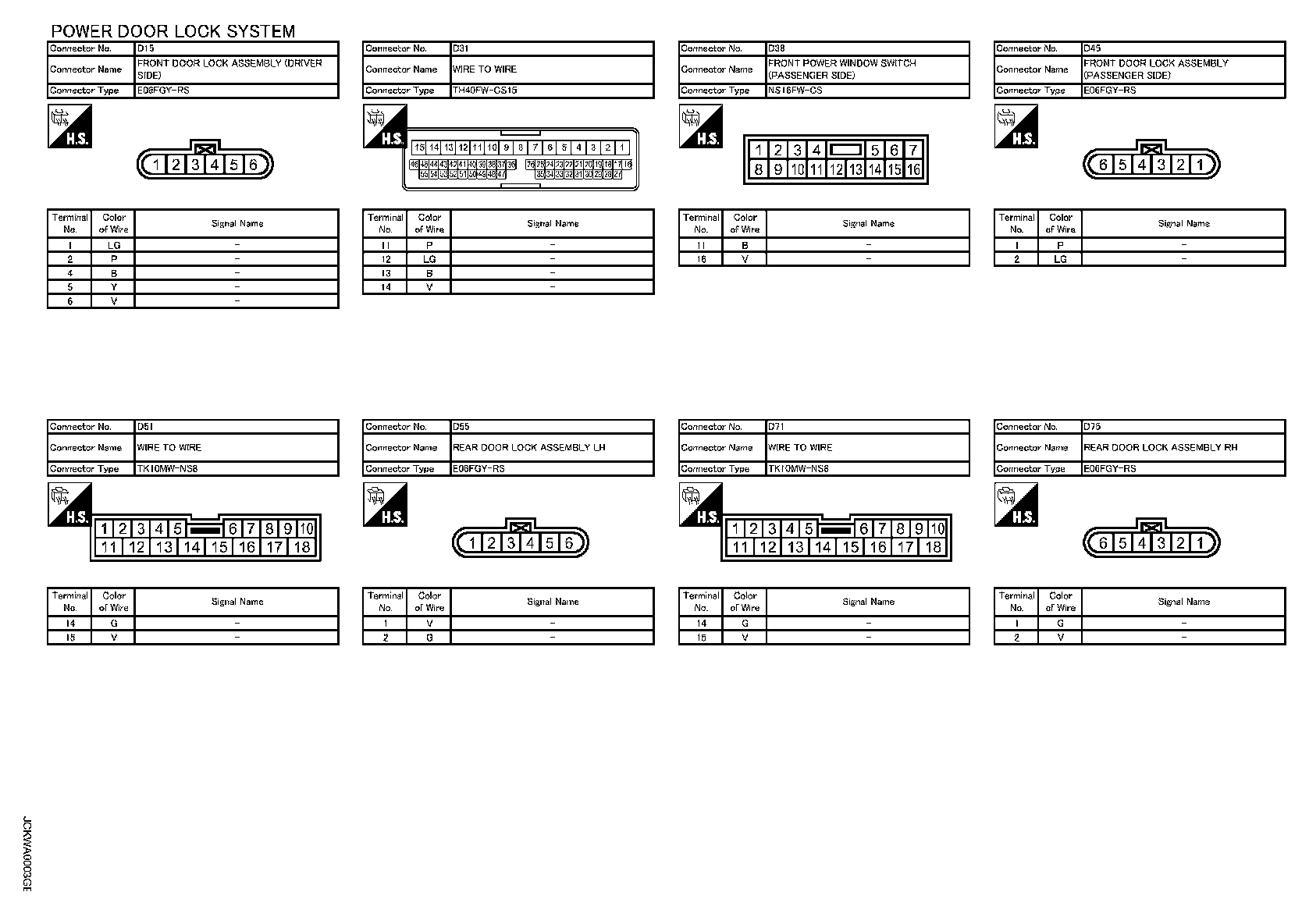

Wiring Diagram - Power Door Lock System (Part 2):

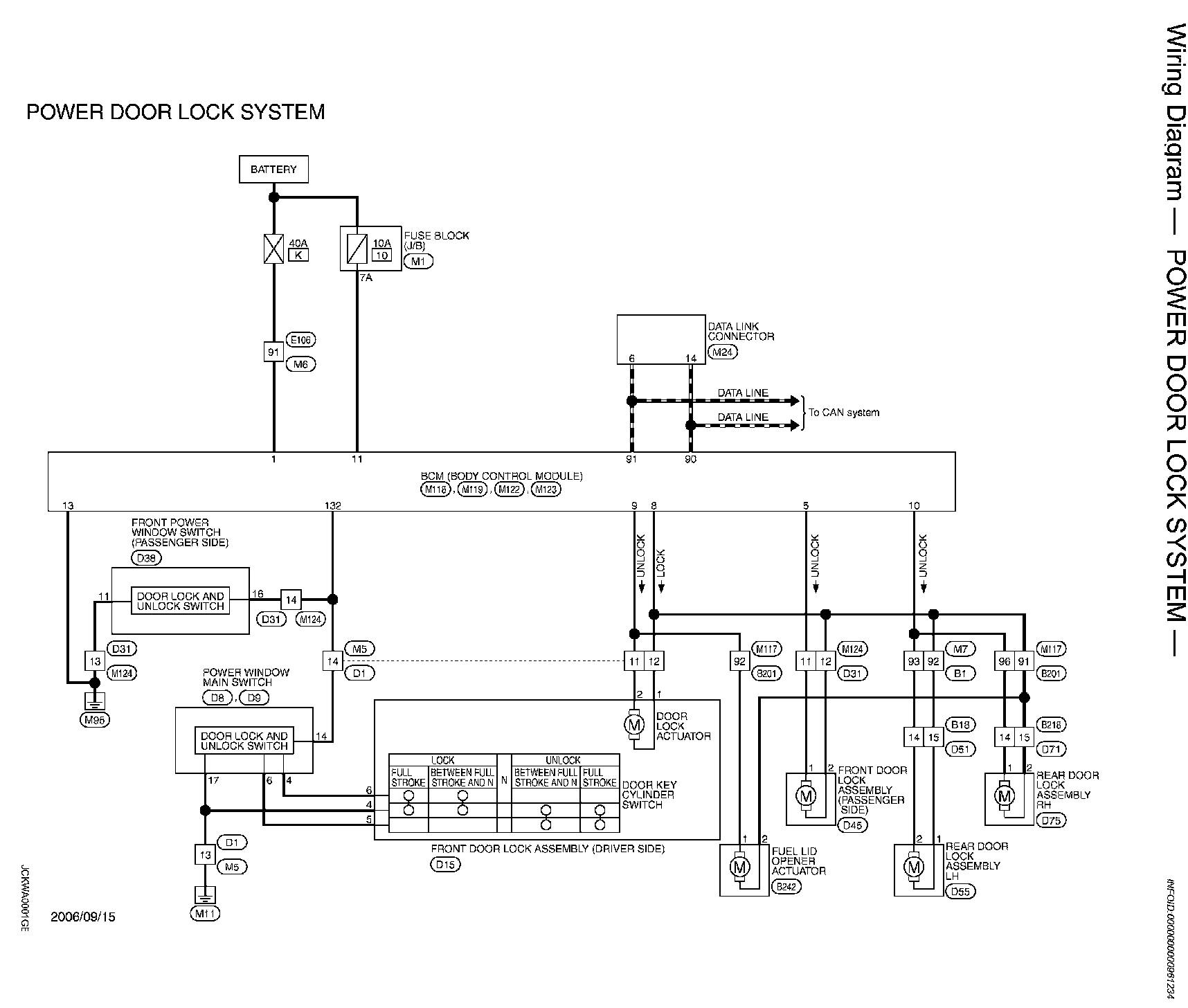

Wiring Diagram - Power Door Lock System (Part 3):

Wiring Diagram - Power Door Lock System (Part 4):

Wiring Diagram - Power Door Lock System (Part 5):
