Daytime Running Lamp

DAYTIME RUNNING LIGHT SYSTEM

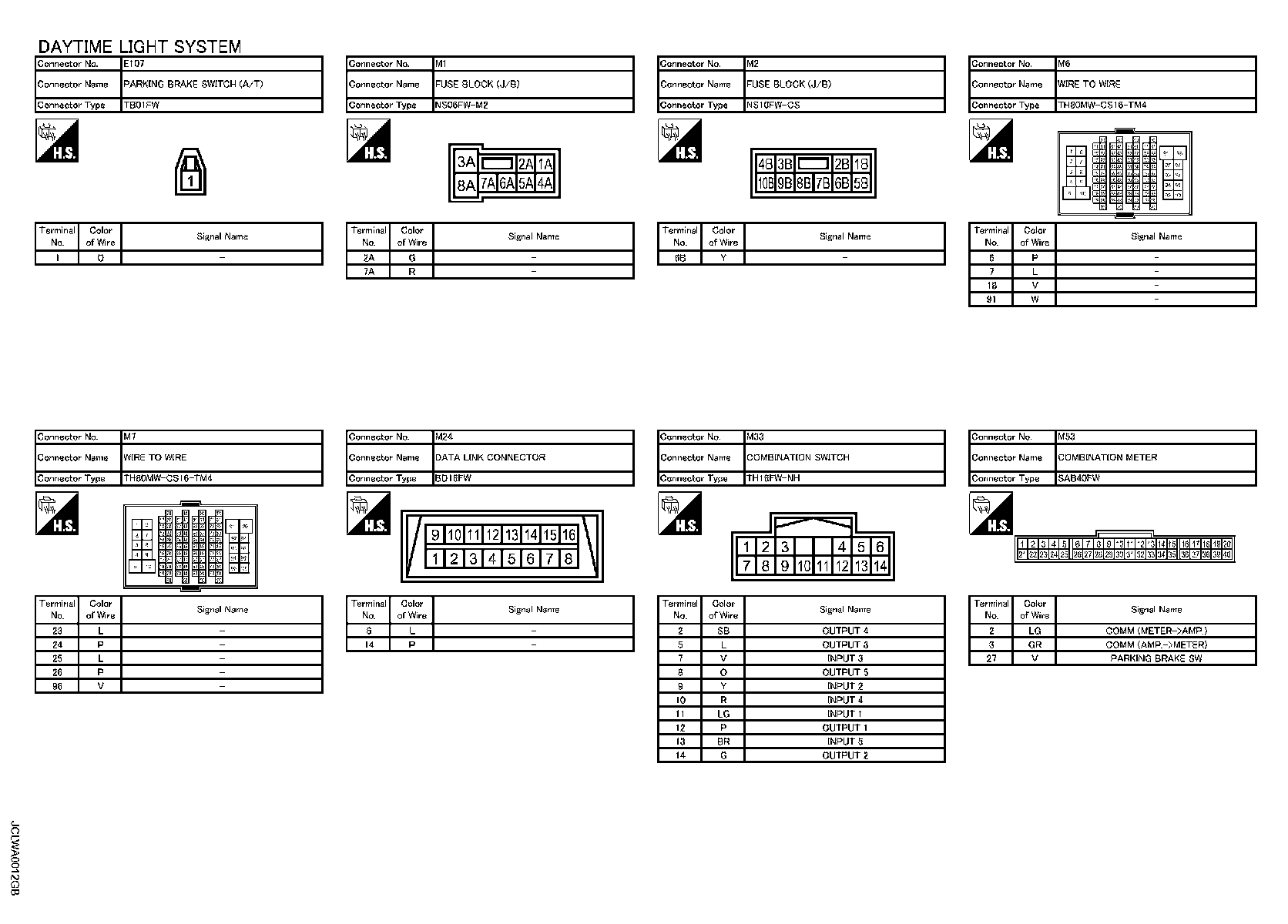

Wiring Diagram - Daytime Light System (Part 1):

Wiring Diagram - Daytime Light System (Part 2):

Wiring Diagram - Daytime Light System (Part 3):

Wiring Diagram - Daytime Light System (Part 4):

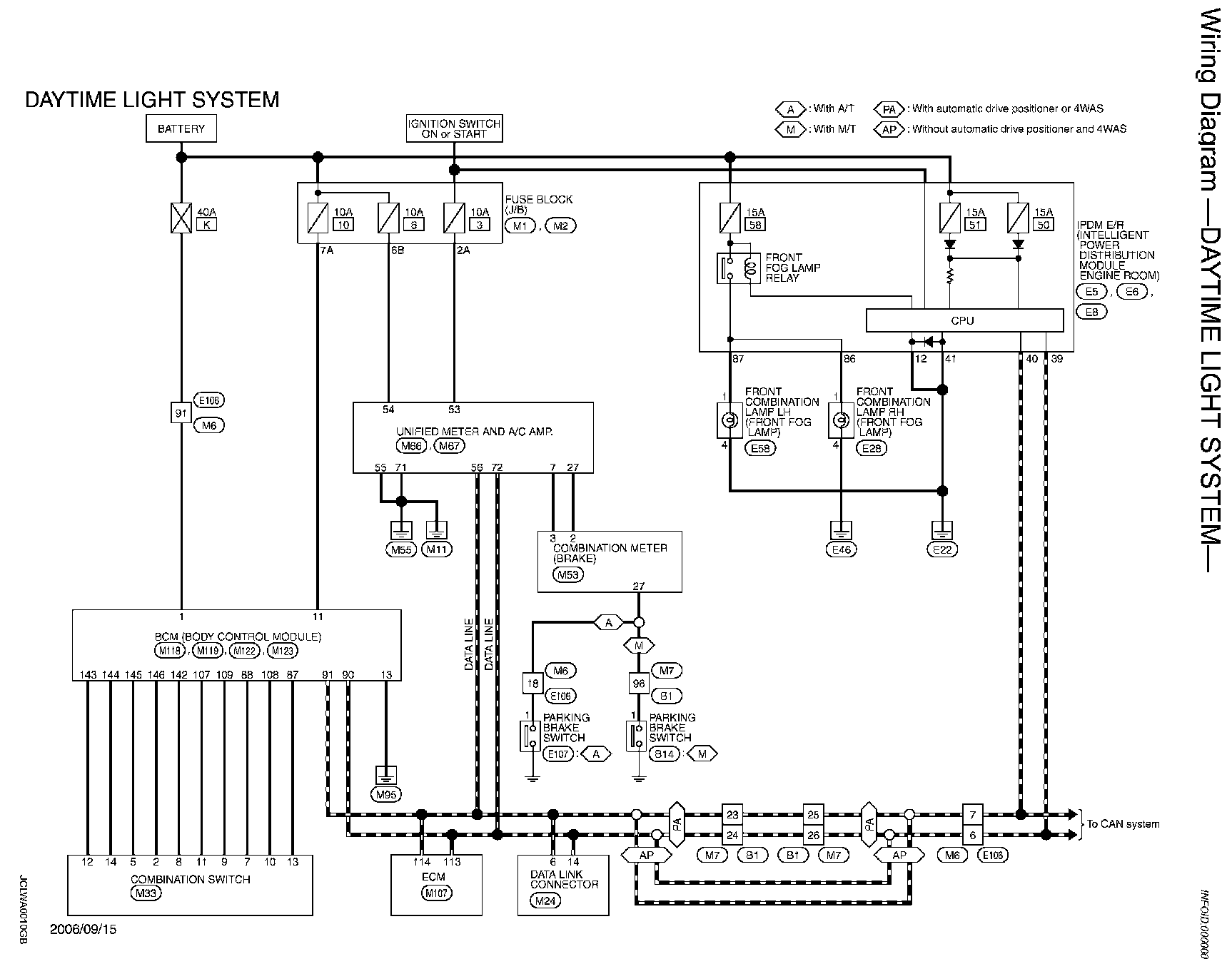

Wiring Diagram - DAYTIME LIGHT SYSTEM
