Tail Lamp

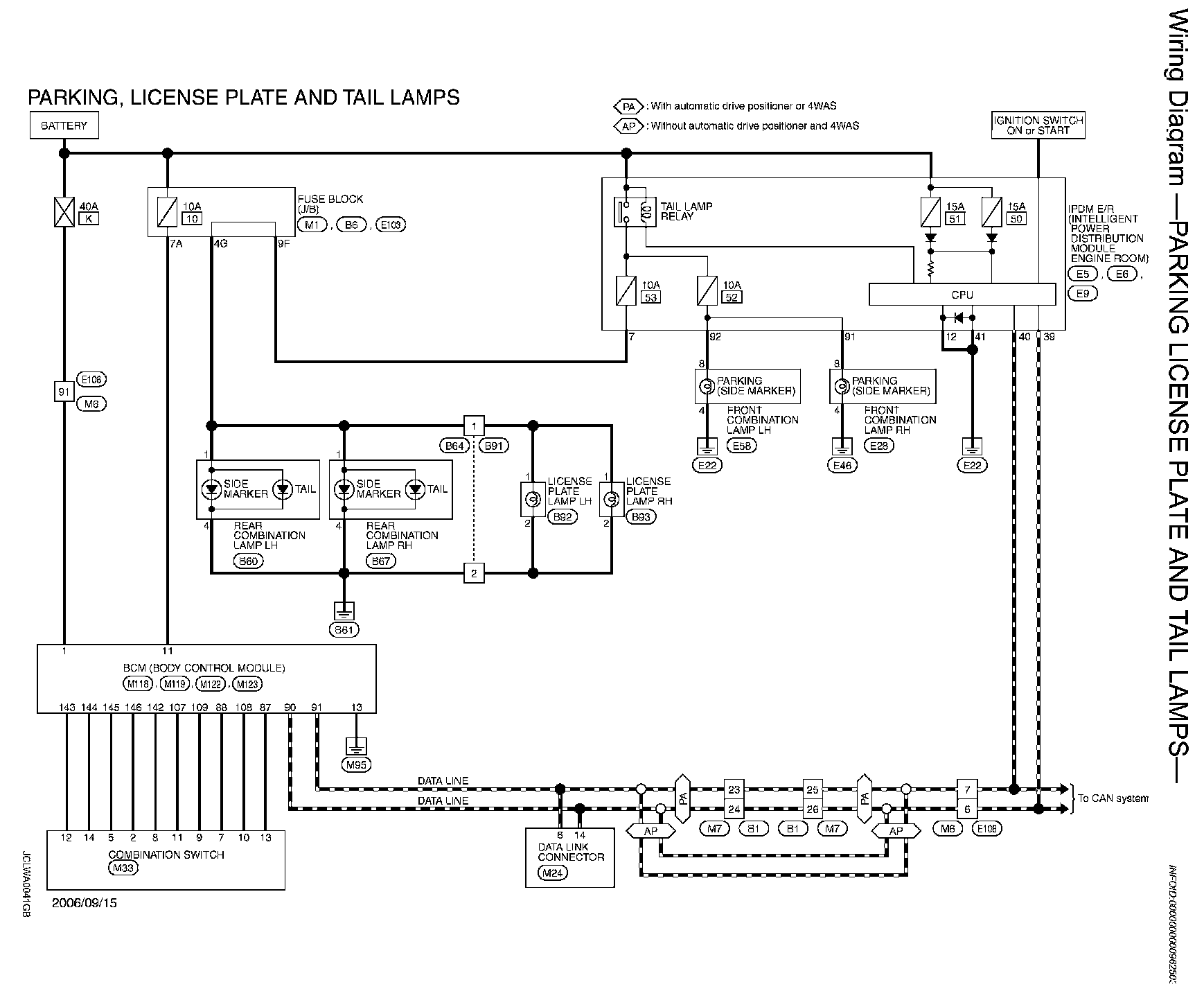

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEMWiring Diagram - Parking License Plate And Tail Lamps (Part 1):

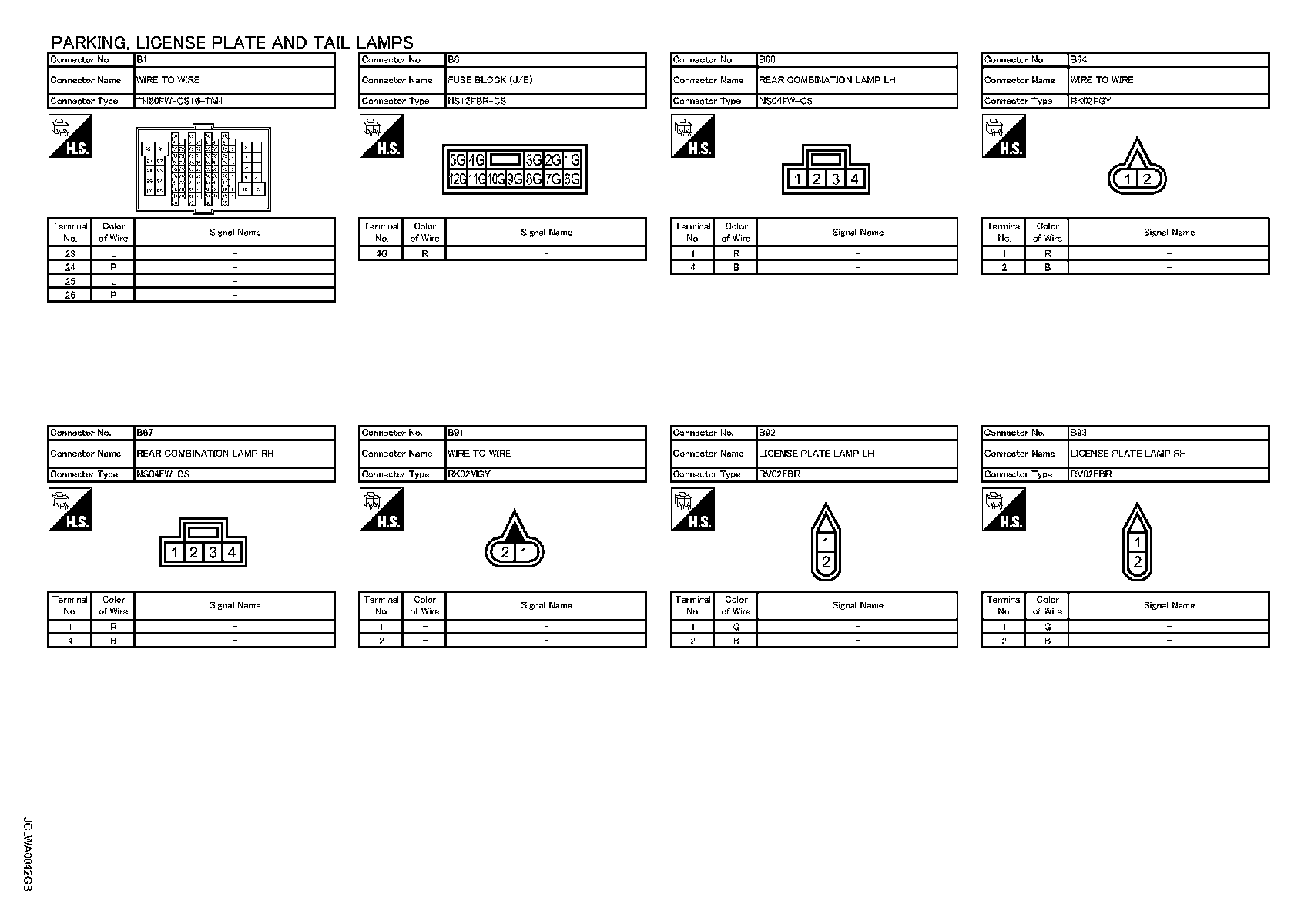

Wiring Diagram - Parking License Plate And Tail Lamps (Part 2):
Wiring Diagram - Parking License Plate And Tail Lamps (Part 3):
Wiring Diagram - Parking License Plate And Tail Lamps (Part 4):
Wiring Diagram- PARKING LICENSE PLATE AND TAIL LAMPS
