Turn Signals

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

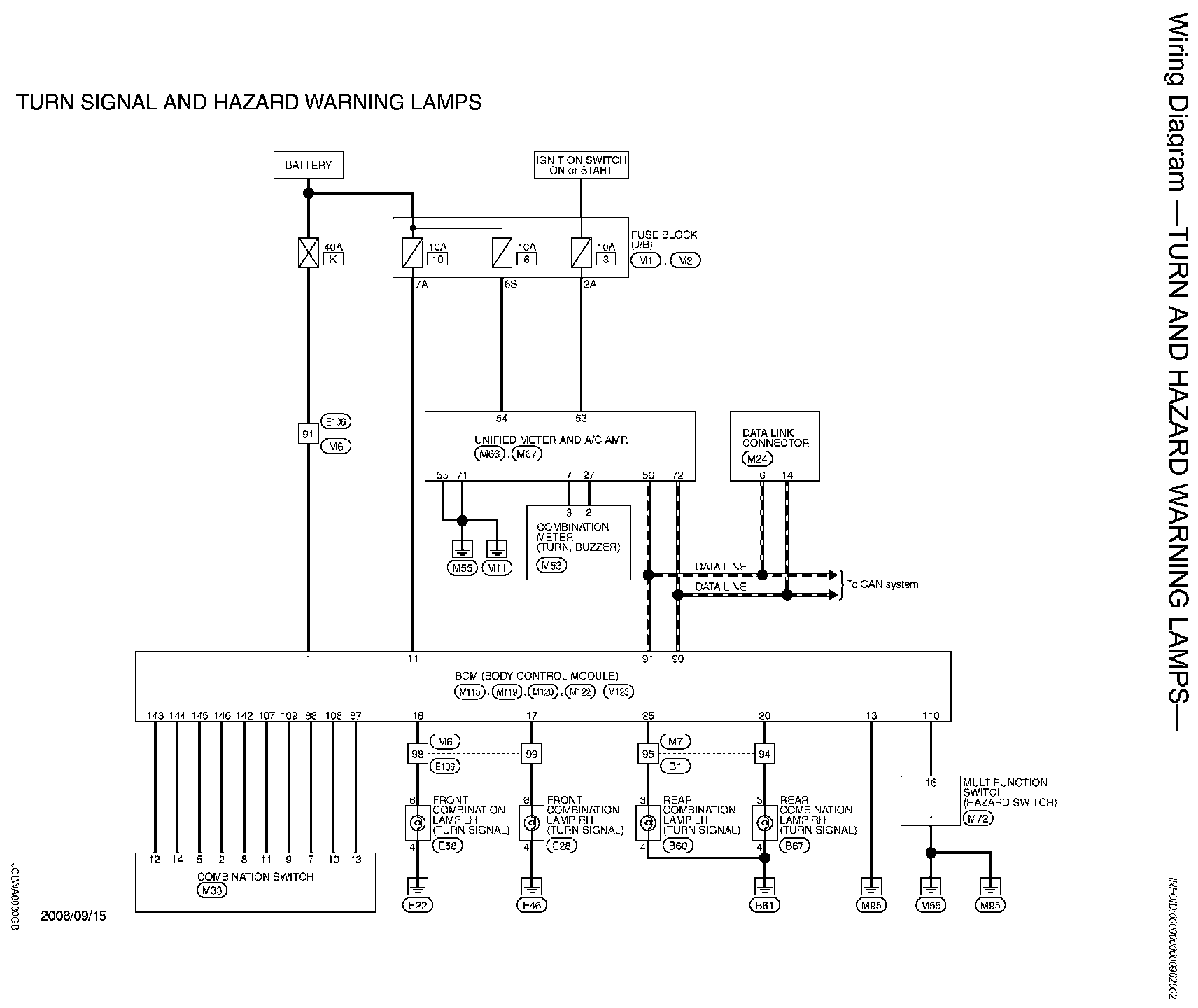

Wiring Diagram - Turn And Hazard Warning Lamps (Part 1):

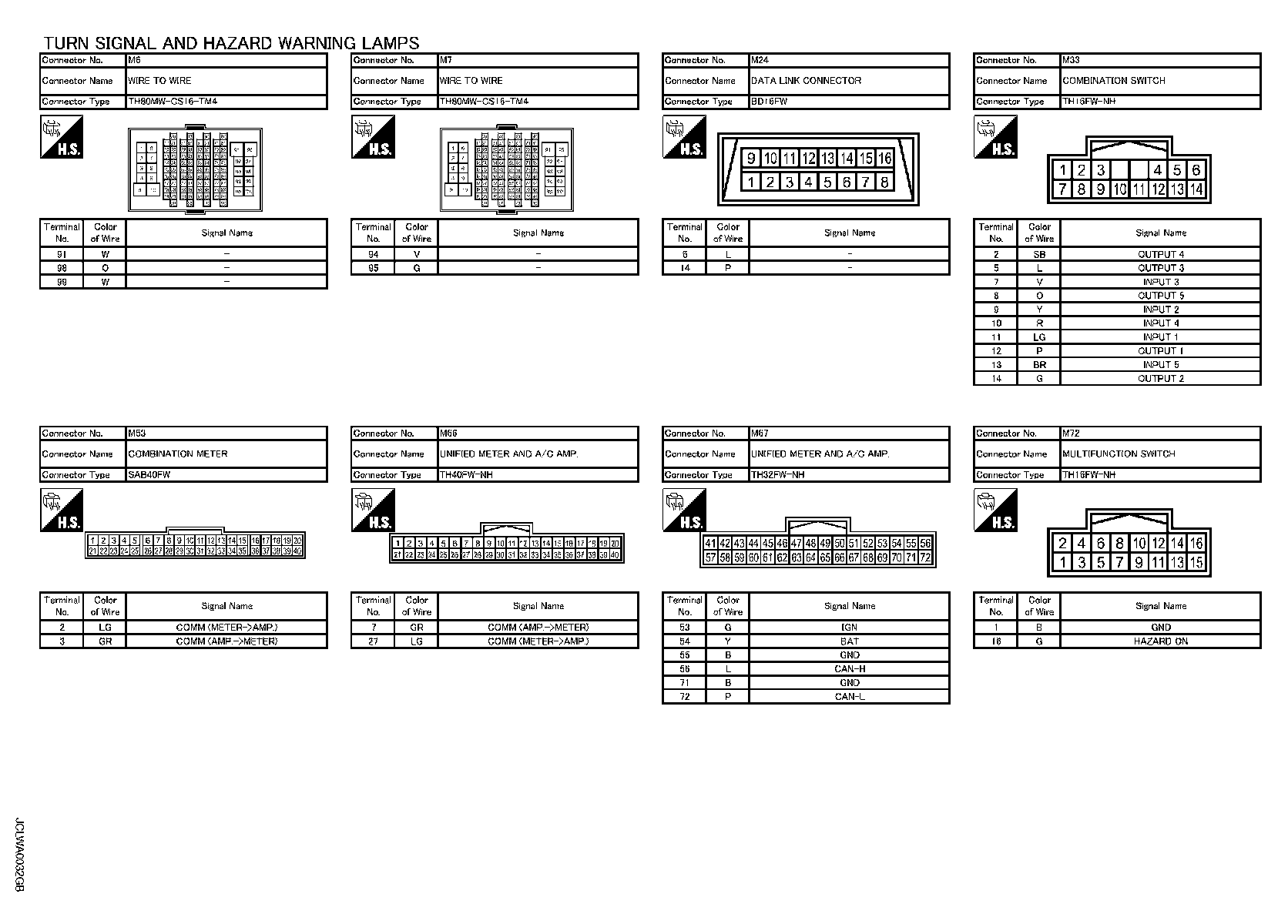

Wiring Diagram - Turn And Hazard Warning Lamps (Part 2):

Wiring Diagram - Turn And Hazard Warning Lamps (Part 3):

Wiring Diagram - Turn And Hazard Warning Lamps (Part 4):

Wiring Diagram - TURN AND HAZARD WARNING LAMPS
