Tilt and Telescopic System

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

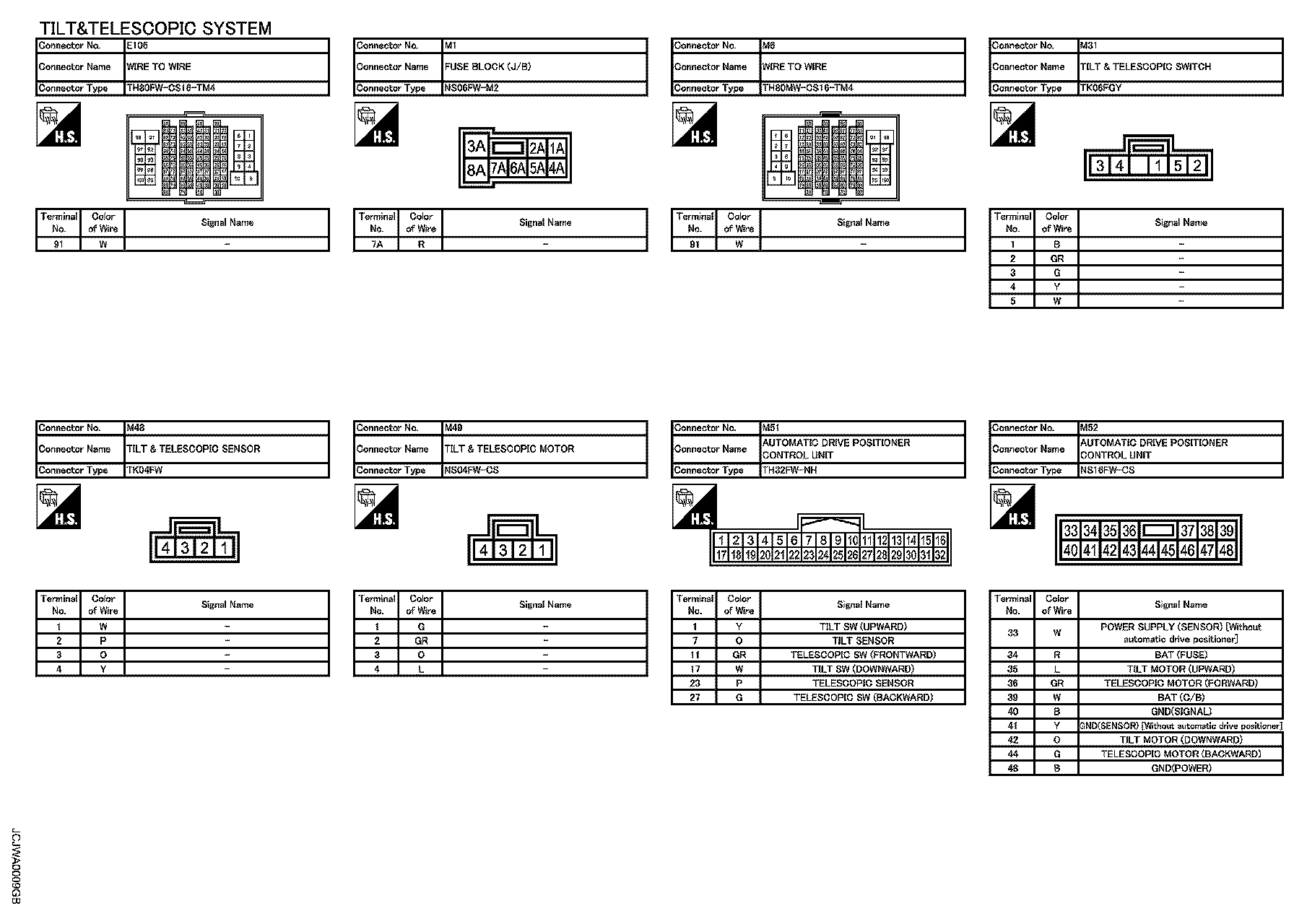

Wiring Diagram - TILT AND TELESCOPIC SYSTEM -

Wiring Diagram - Tilt And Telescopic System - Part 1:




Wiring Diagram - Tilt And Telescopic System - Part 2:




Wiring Diagram - Tilt And Telescopic System - Part 3:
