Parking Assist Control Module

CAMERA CONTROL UNIT

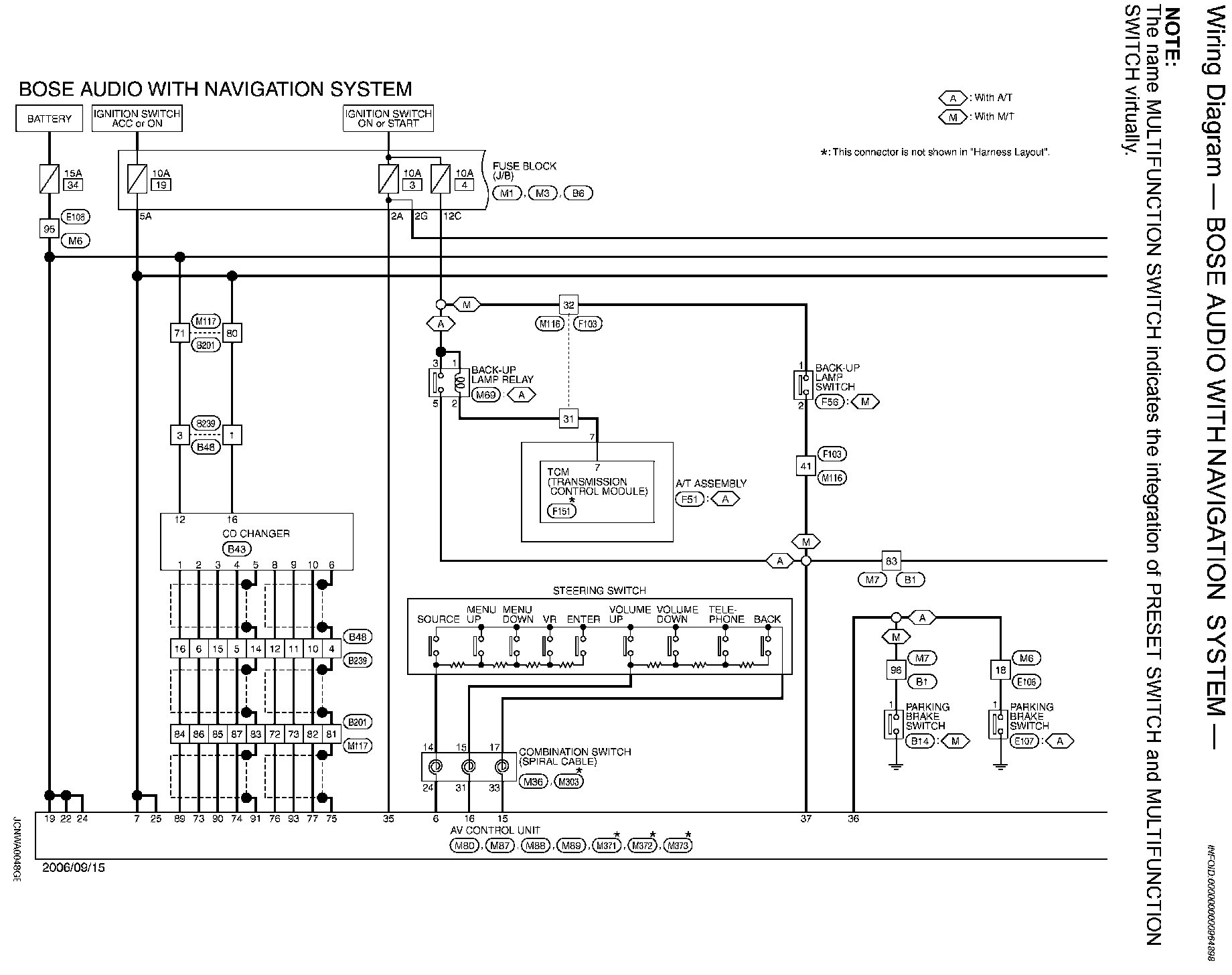

Wiring Diagram - Bose Audio With Navigation System (Part 1):

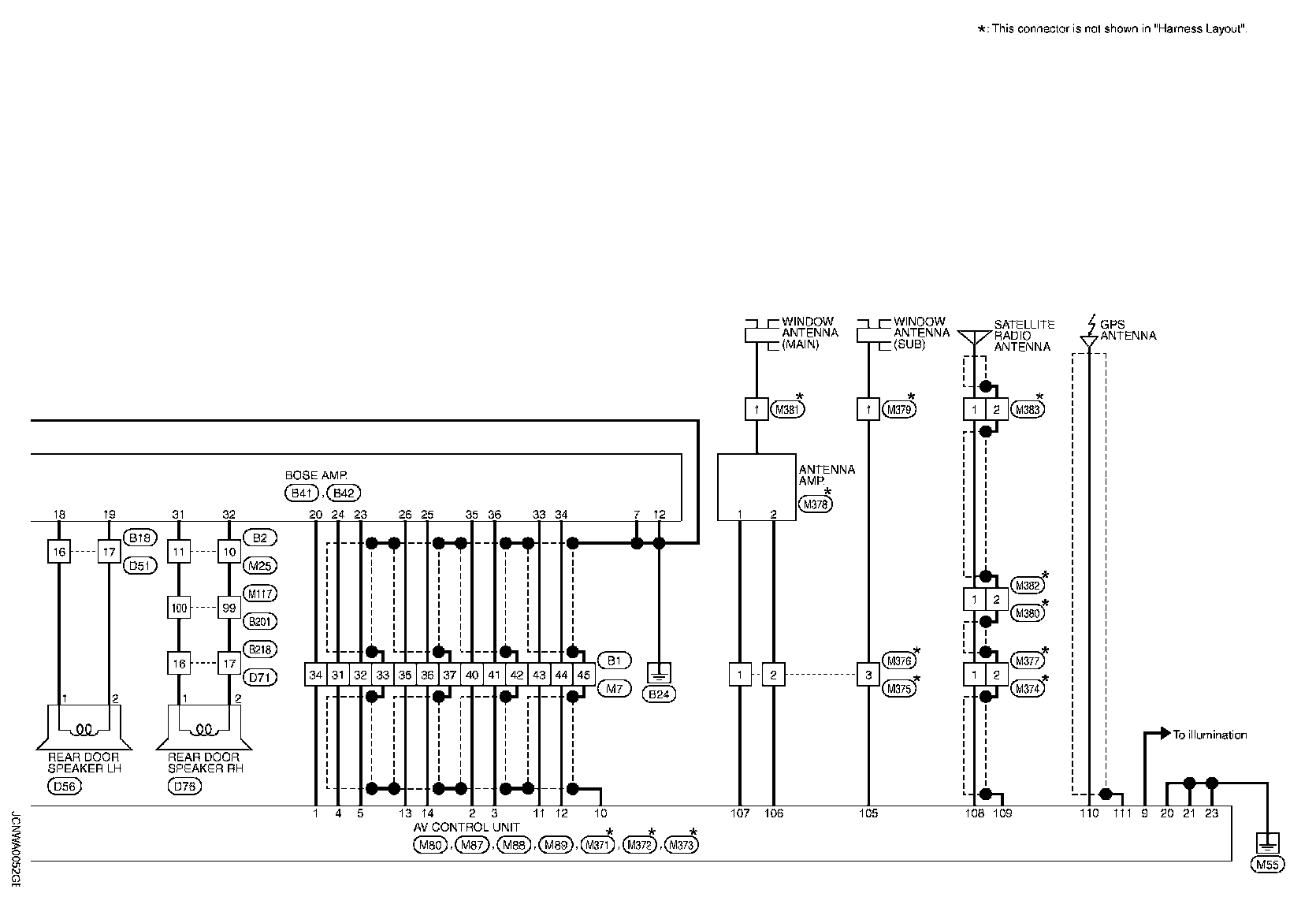

Wiring Diagram - Bose Audio With Navigation System (Part 2):

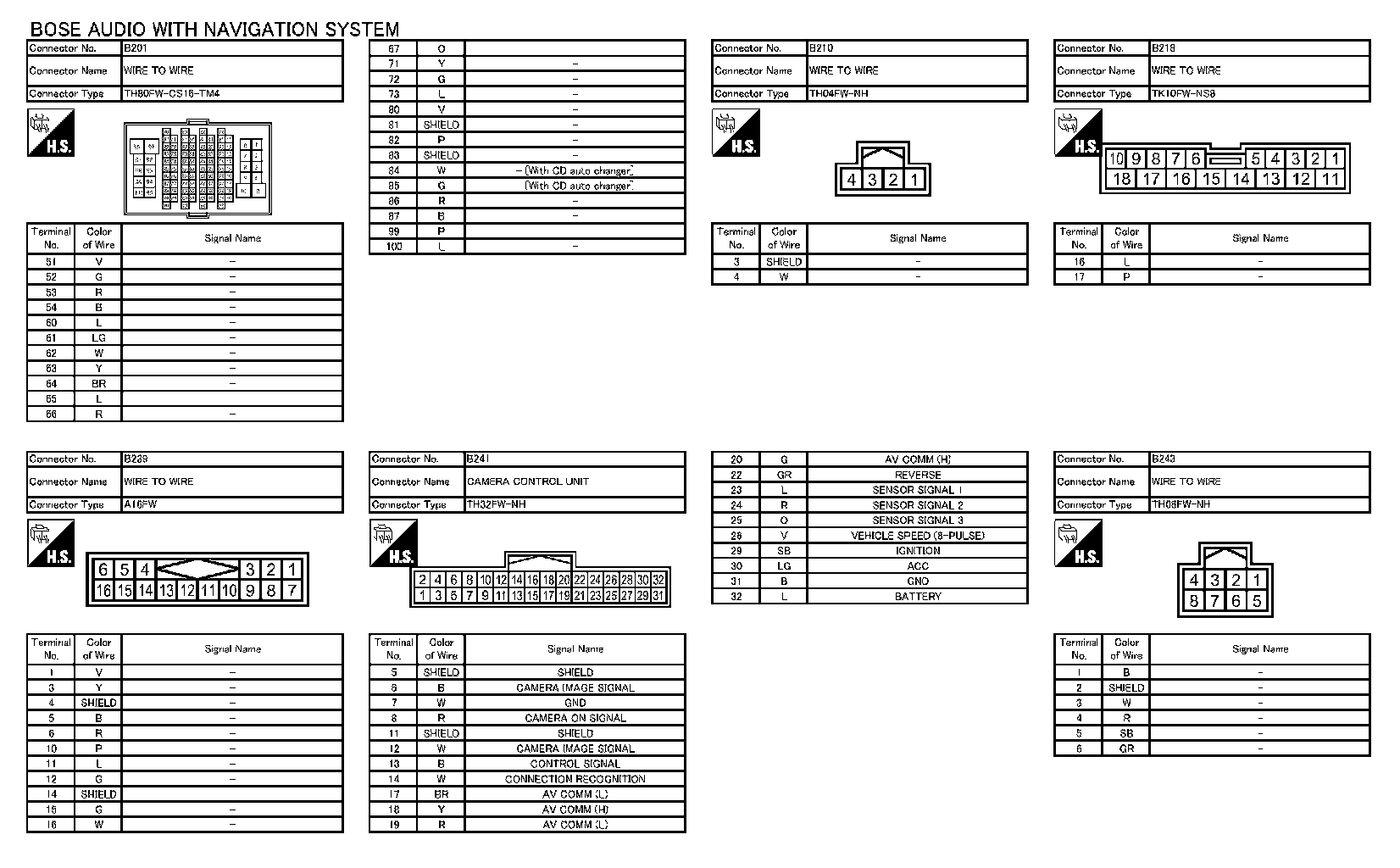

Wiring Diagram - Bose Audio With Navigation System (Part 3):

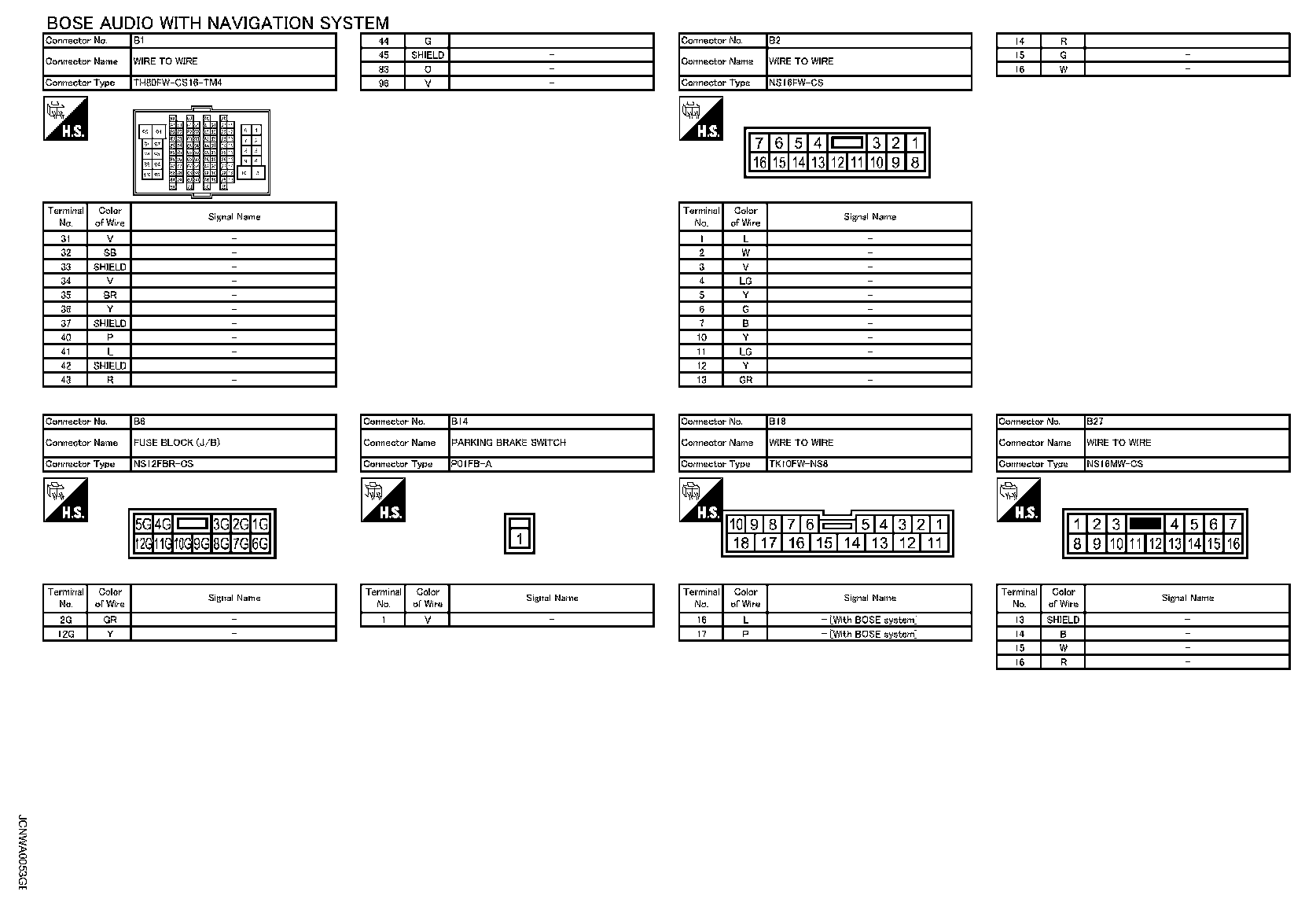

Wiring Diagram - Bose Audio With Navigation System (Part 4):

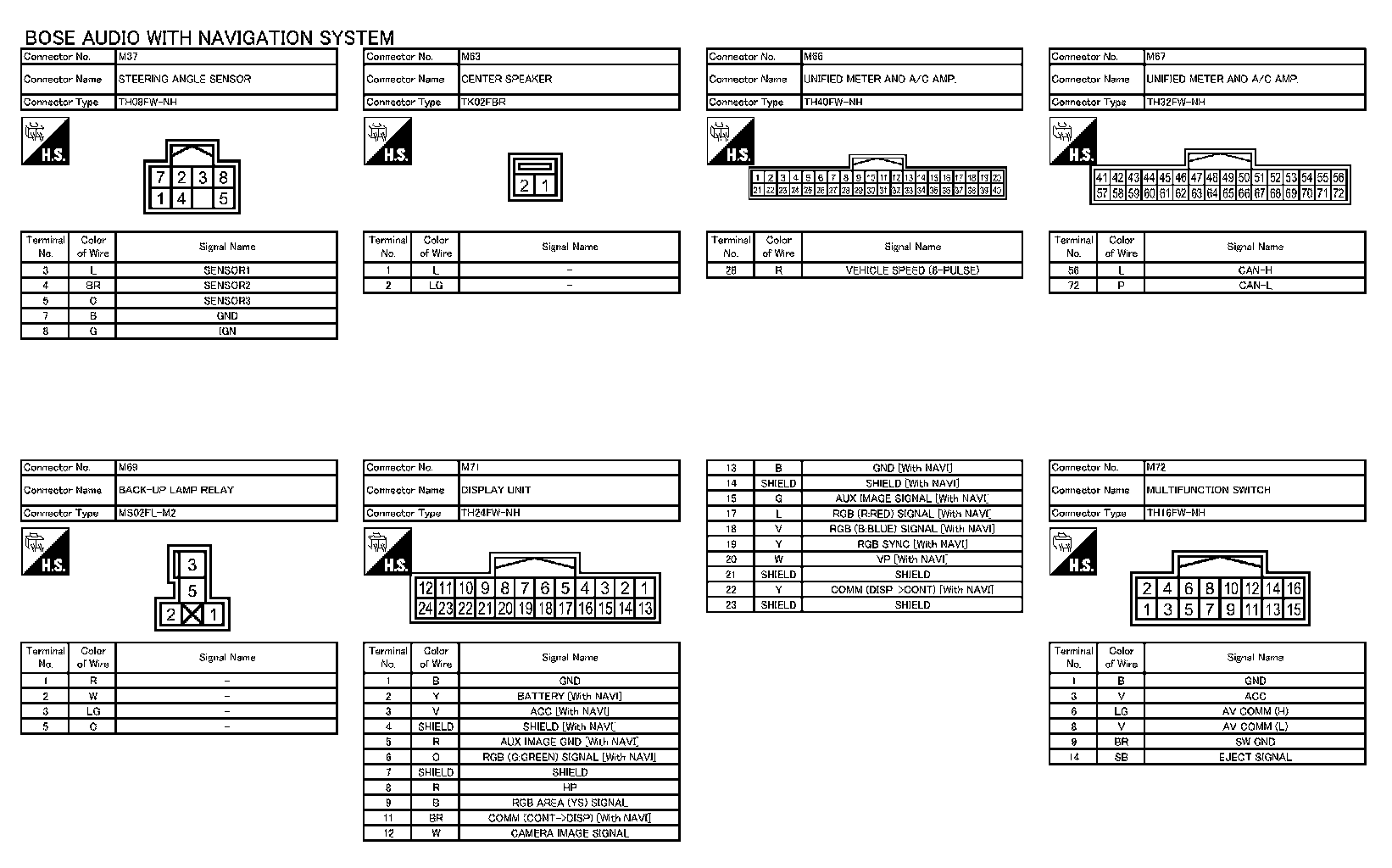

Wiring Diagram - Bose Audio With Navigation System (Part 5):

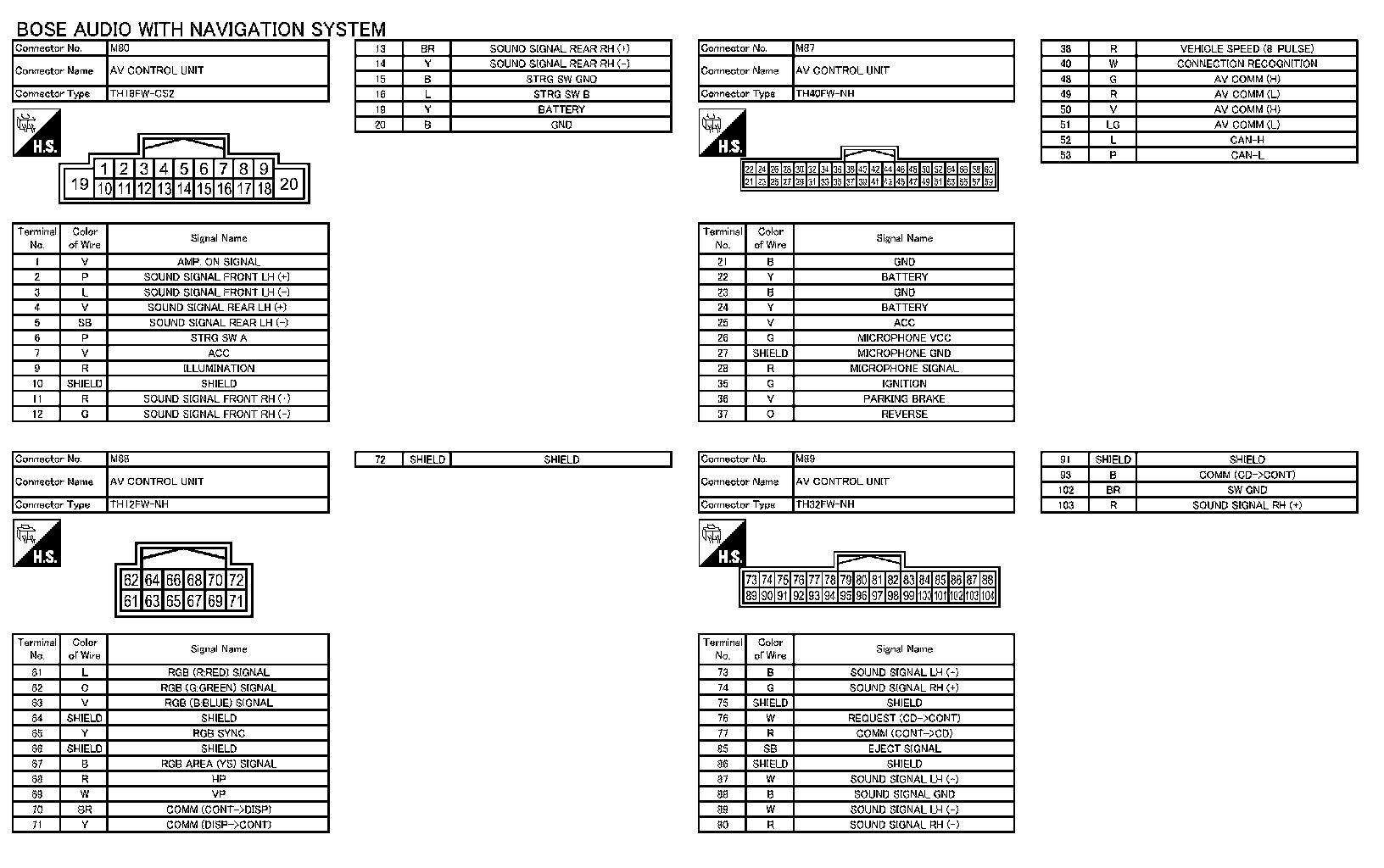

Wiring Diagram - Bose Audio With Navigation System (Part 6):

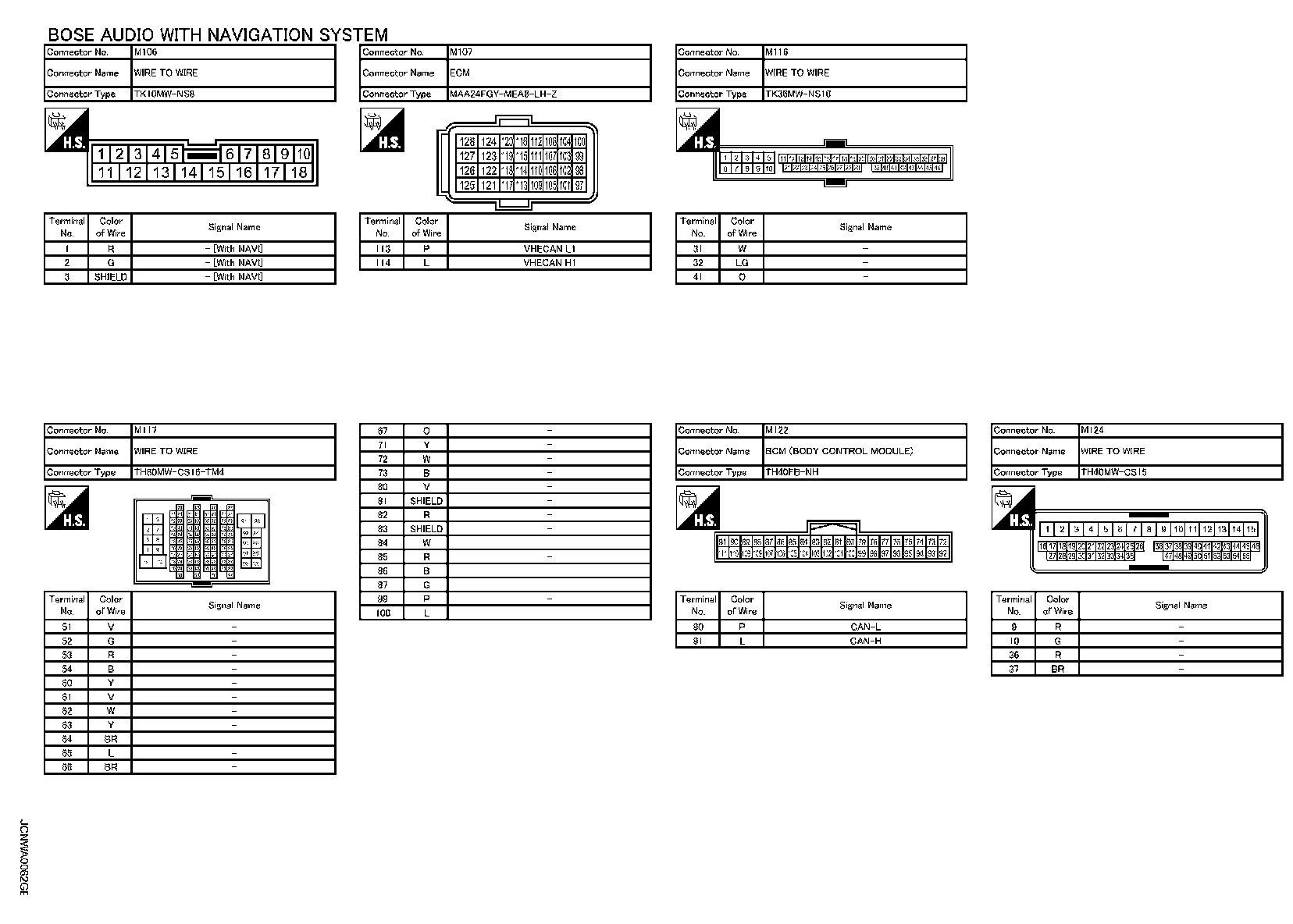

Wiring Diagram - Bose Audio With Navigation System (Part 7):

Wiring Diagram - Bose Audio With Navigation System (Part 8):

Wiring Diagram - Bose Audio With Navigation System (Part 9):

Wiring Diagram - Bose Audio With Navigation System (Part 10):

Wiring Diagram - Bose Audio With Navigation System (Part 11):

Wiring Diagram - Bose Audio With Navigation System (Part 11):

Wiring Diagram - Bose Audio With Navigation System (Part 12):

Wiring Diagram - Bose Audio With Navigation System (Part 13):

Wiring Diagram - Bose Audio With Navigation System (Part 14):

Wiring Diagram - Bose Audio With Navigation System (Part 15):

Wiring Diagram - Bose Audio With Navigation System (Part 16):

Wiring Diagram - Bose Audio With Navigation System (Part 17):

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM
