Auxiliary Power Outlet
POWER SOCKET

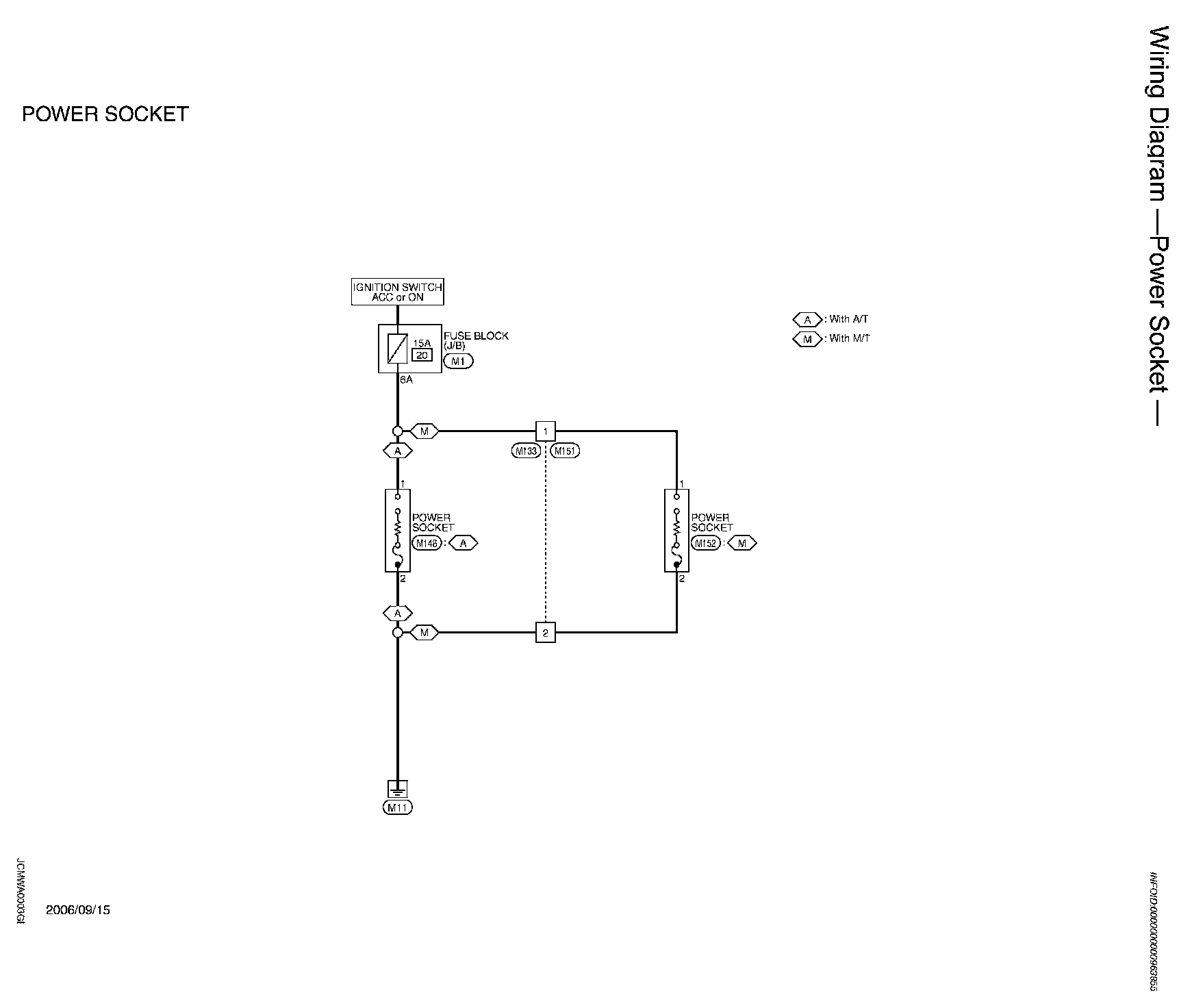

Wiring Diagram - Power Socket (Part 1):

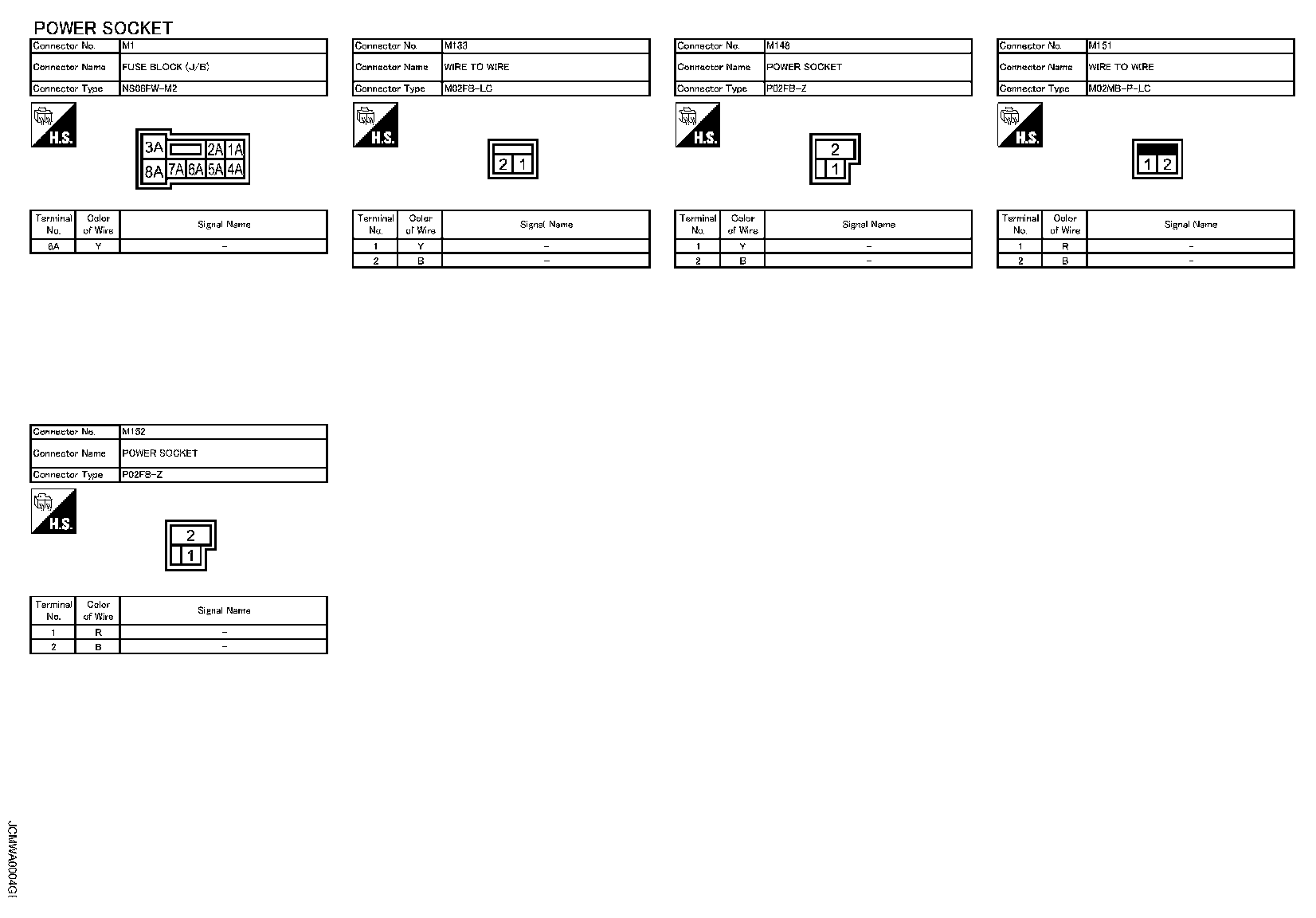

Wiring Diagram - Power Socket (Part 2):
Wiring Diagram - Power Socket -
