Information Bus

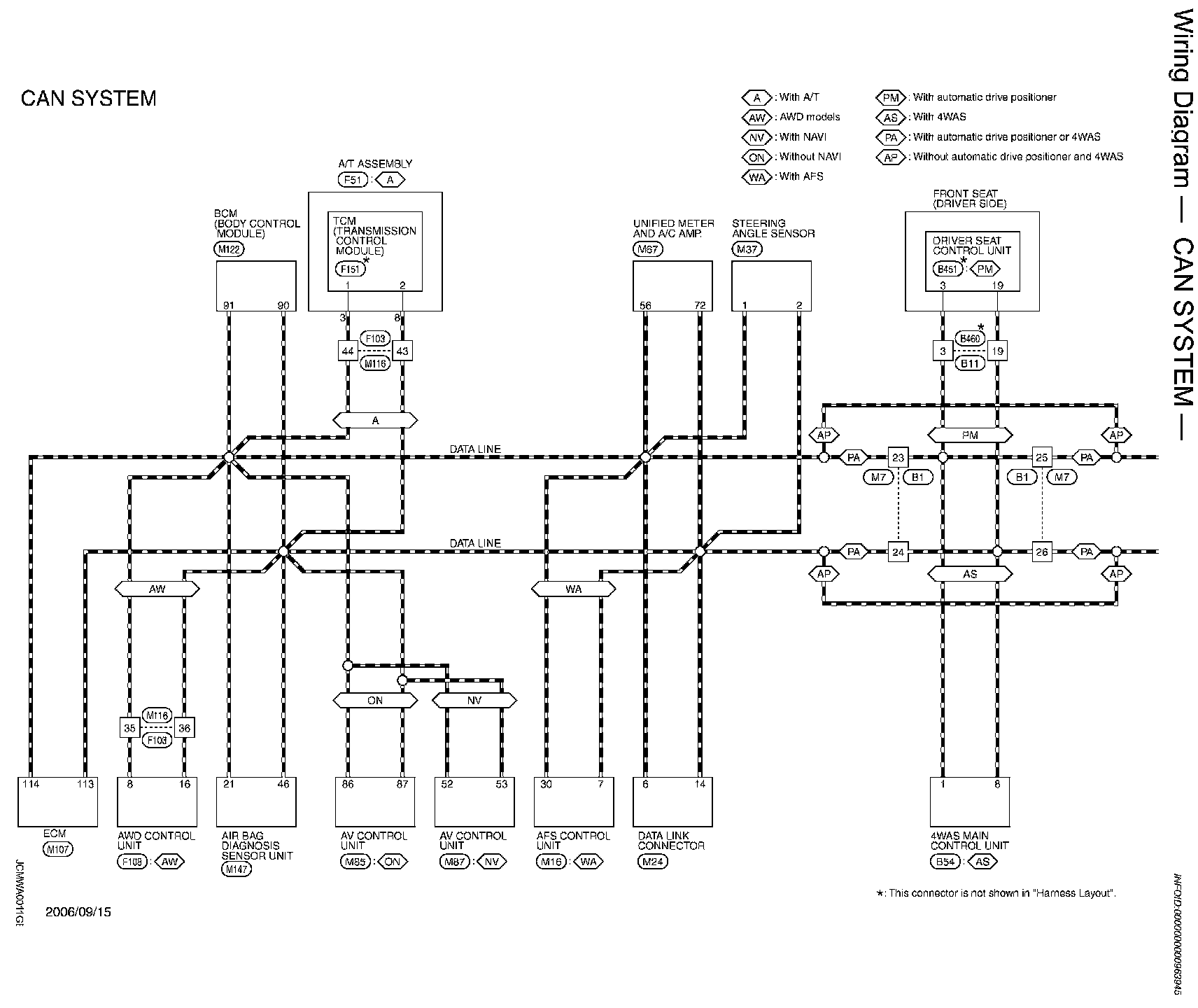

Wiring Diagram - CAN System (Part 1):

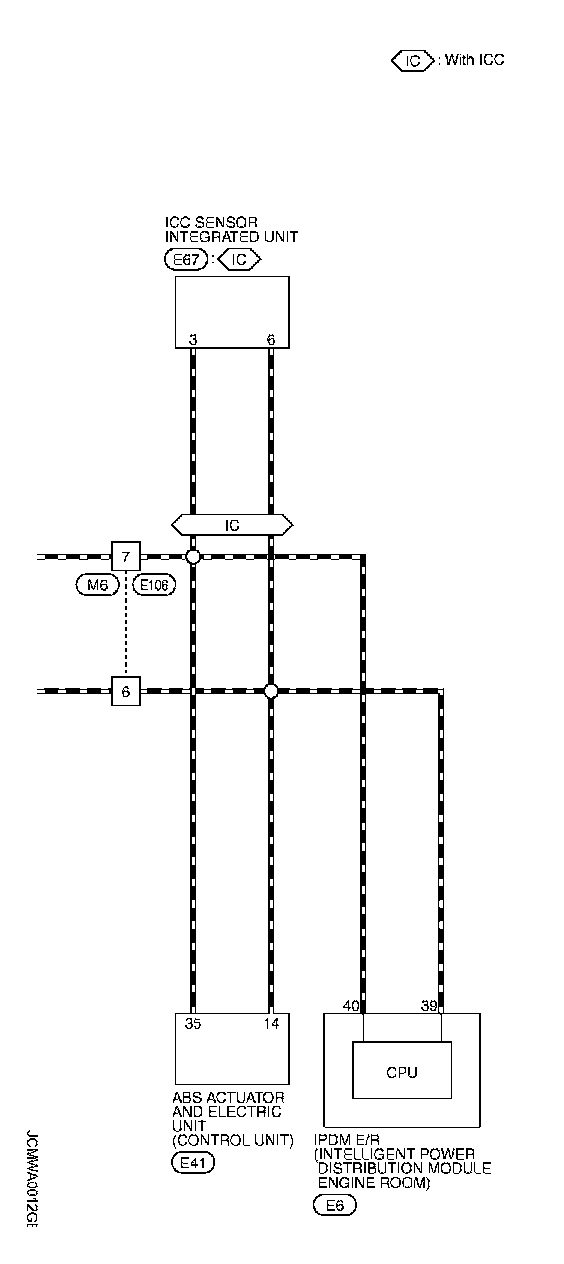

Wiring Diagram - CAN System (Part 2):

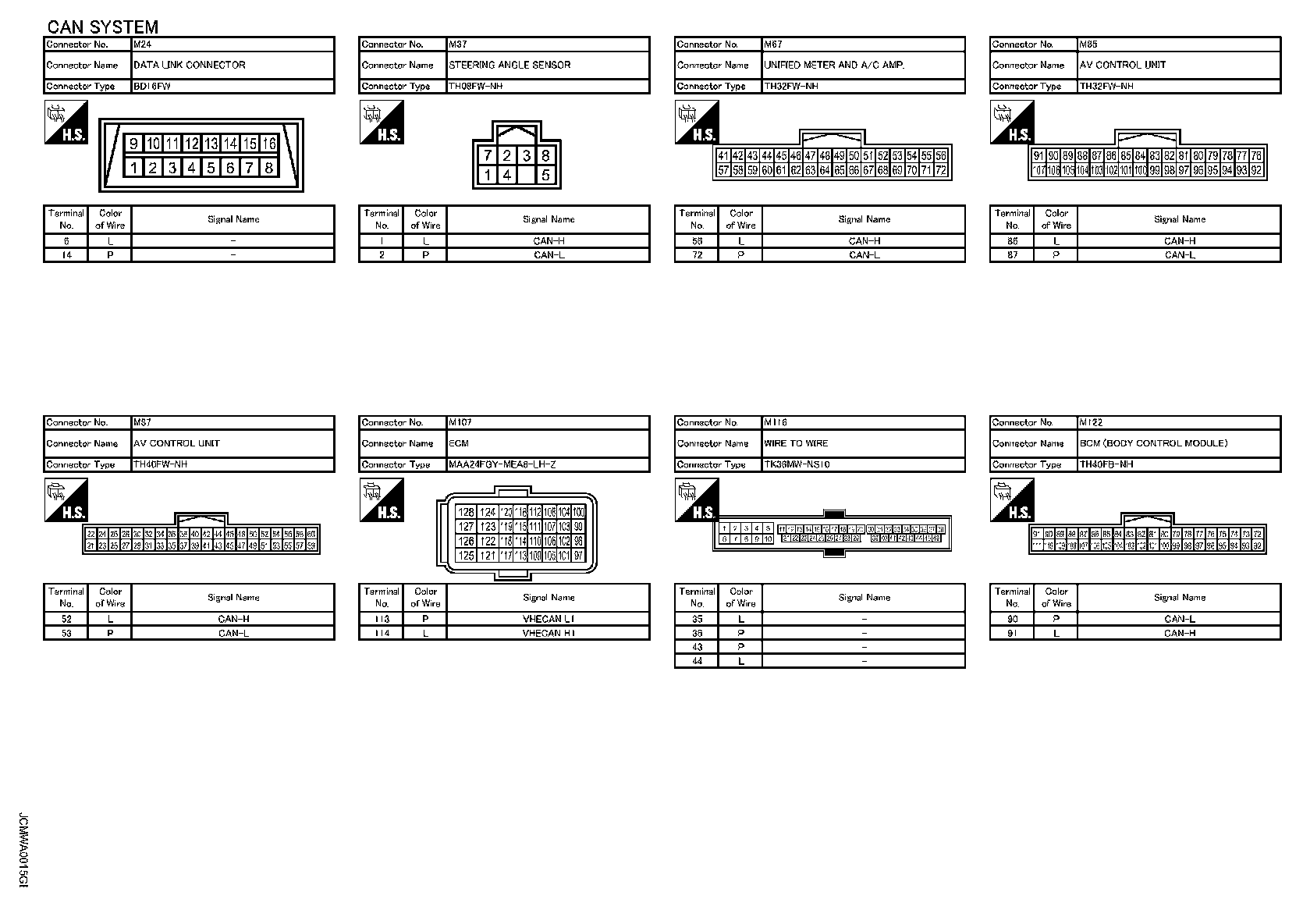

Wiring Diagram - CAN System (Part 3):

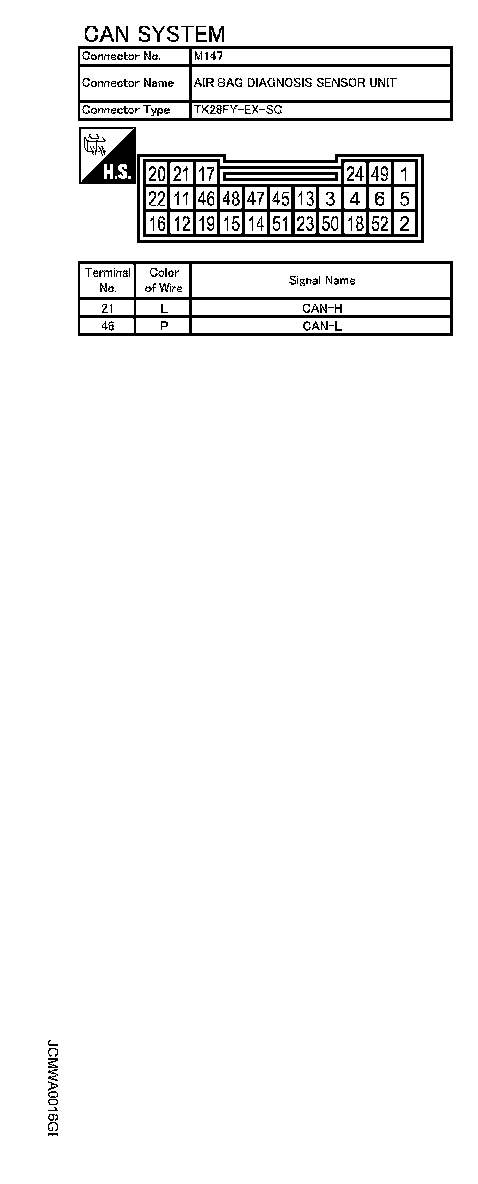

Wiring Diagram - CAN System (Part 4):

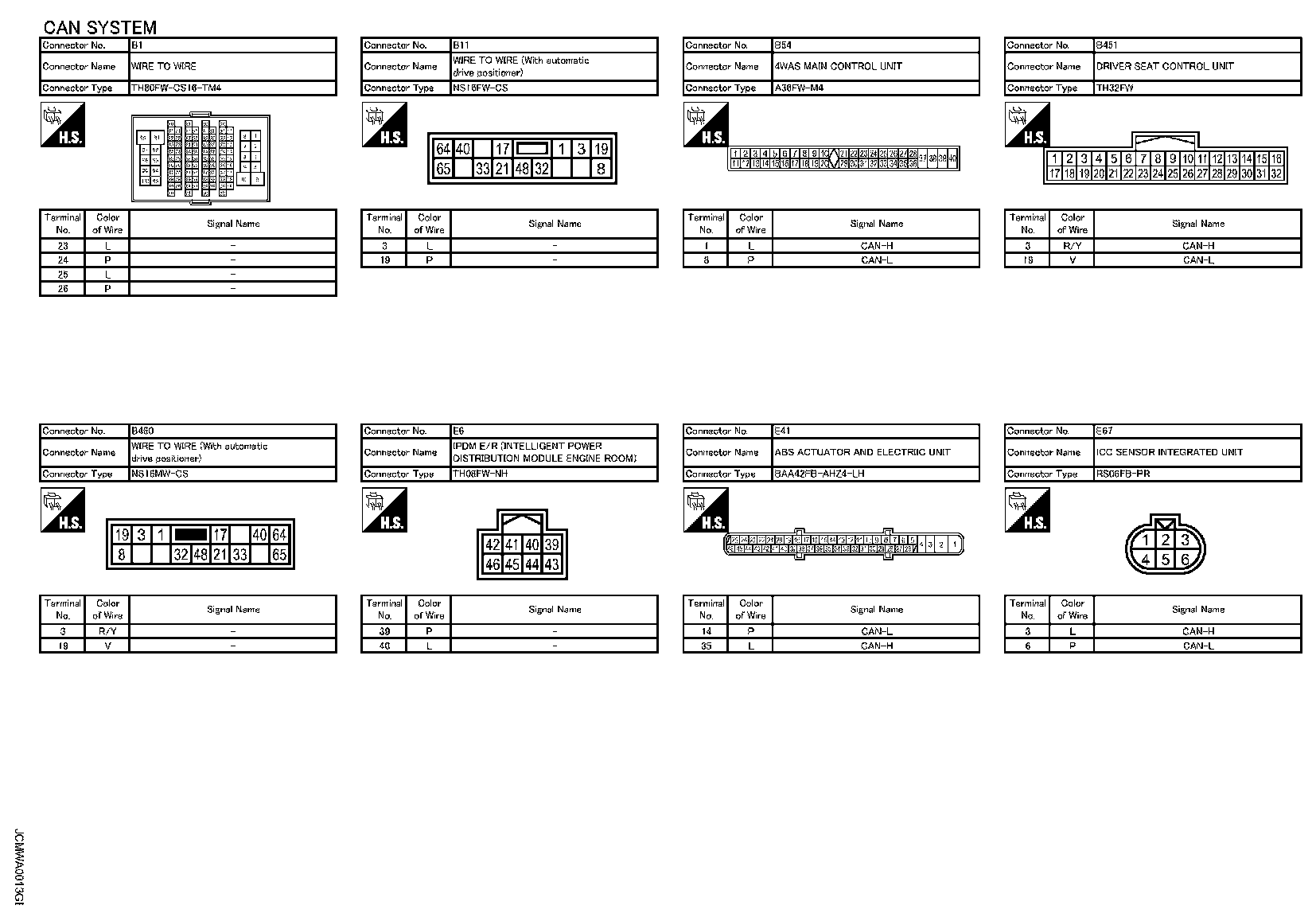

Wiring Diagram - CAN System (Part 5):

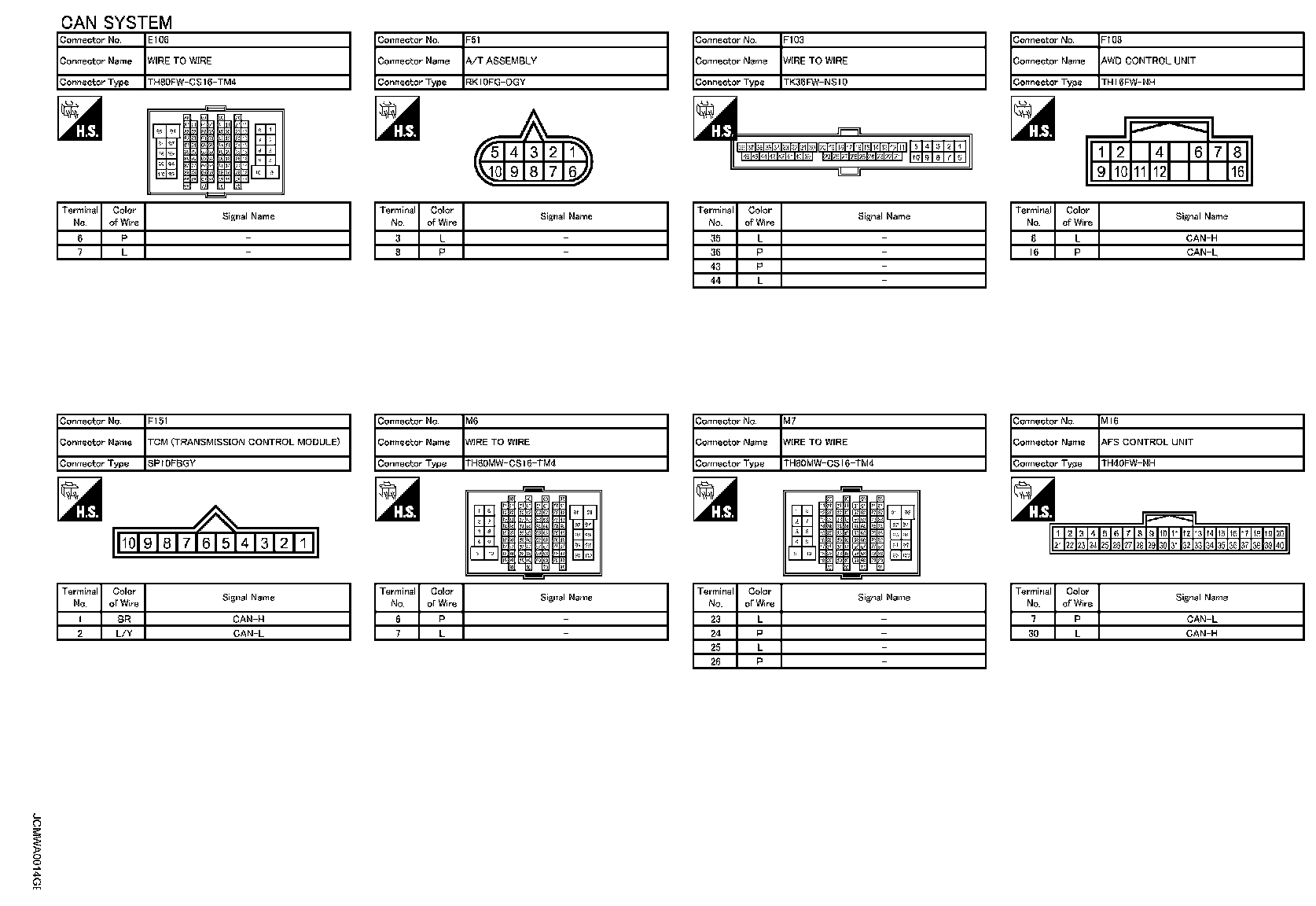

Wiring Diagram - CAN System (Part 6):
