Power Seat System - Driver Side

POWER SEAT

Wiring Diagram - POWER SEAT SYSTEM -

DRIVER SIDE

Wiring Diagram - Power Seat For Driver Side - Part 1:

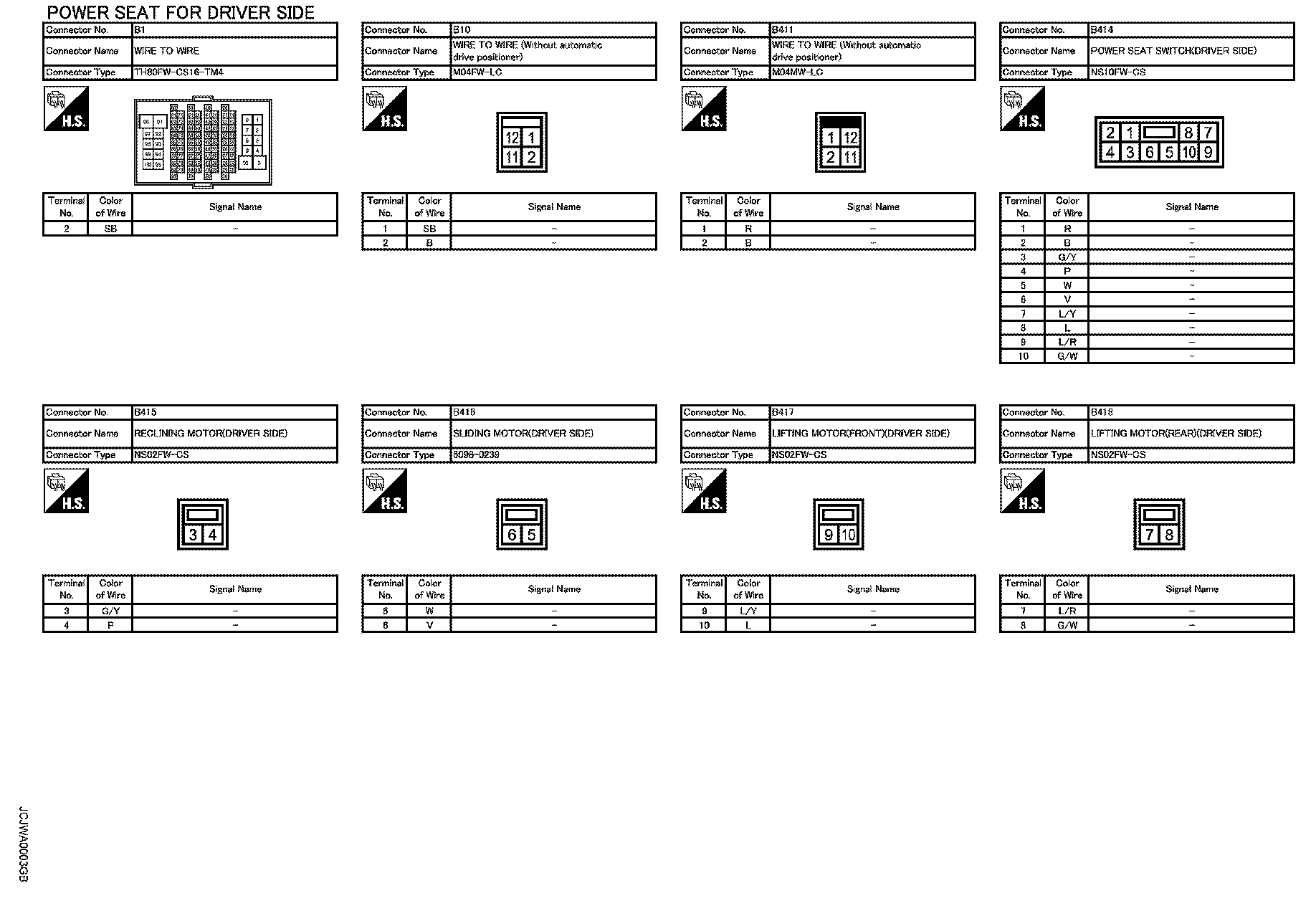

Wiring Diagram - Power Seat For Driver Side - Part 2:

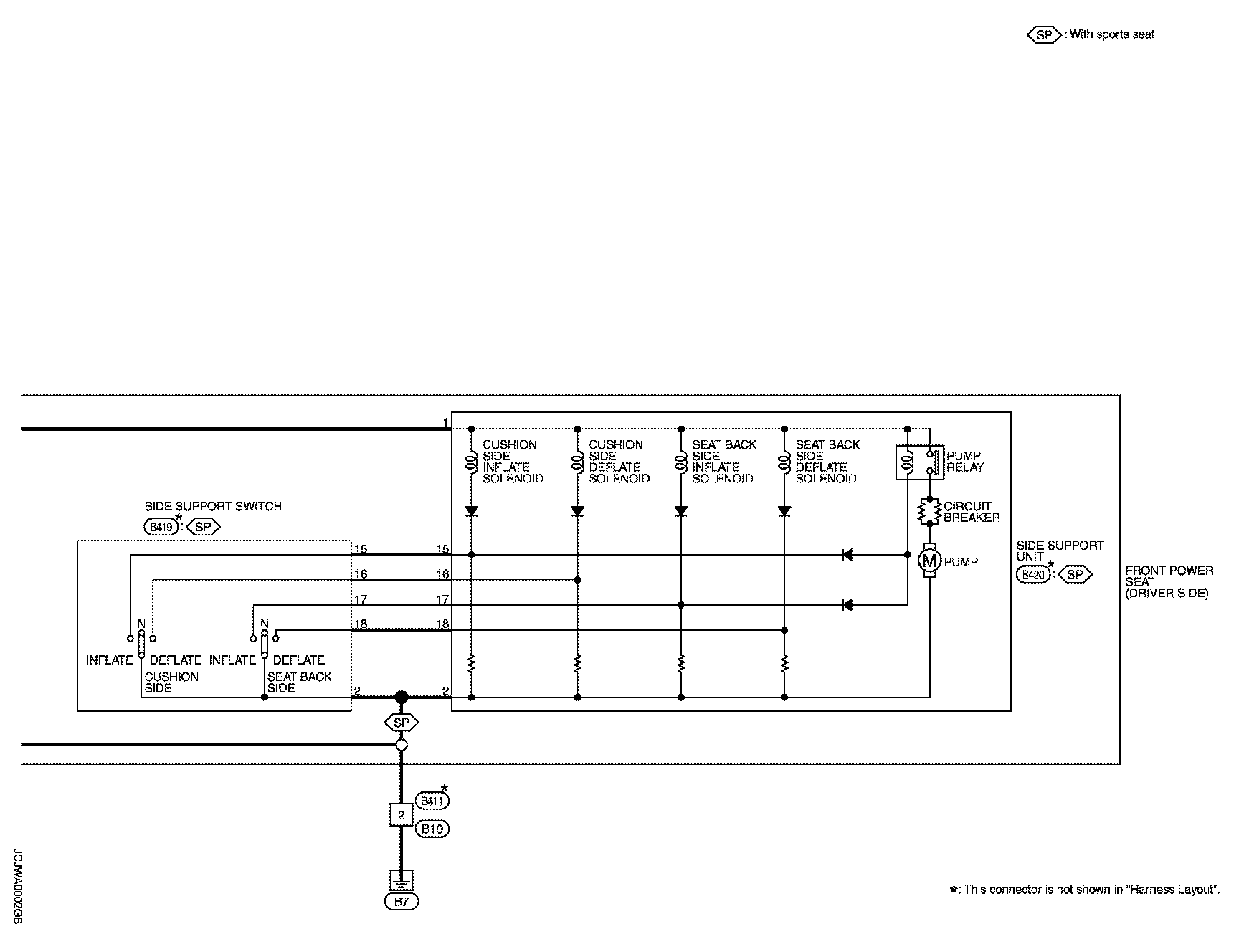

Wiring Diagram - Power Seat For Driver Side - Part 3:




Wiring Diagram - Power Seat For Driver Side - Part 3:
