Power Seat System - Passenger Side

POWER SEAT

Wiring Diagram - POWER SEAT SYSTEM -

PASSENGER SIDE

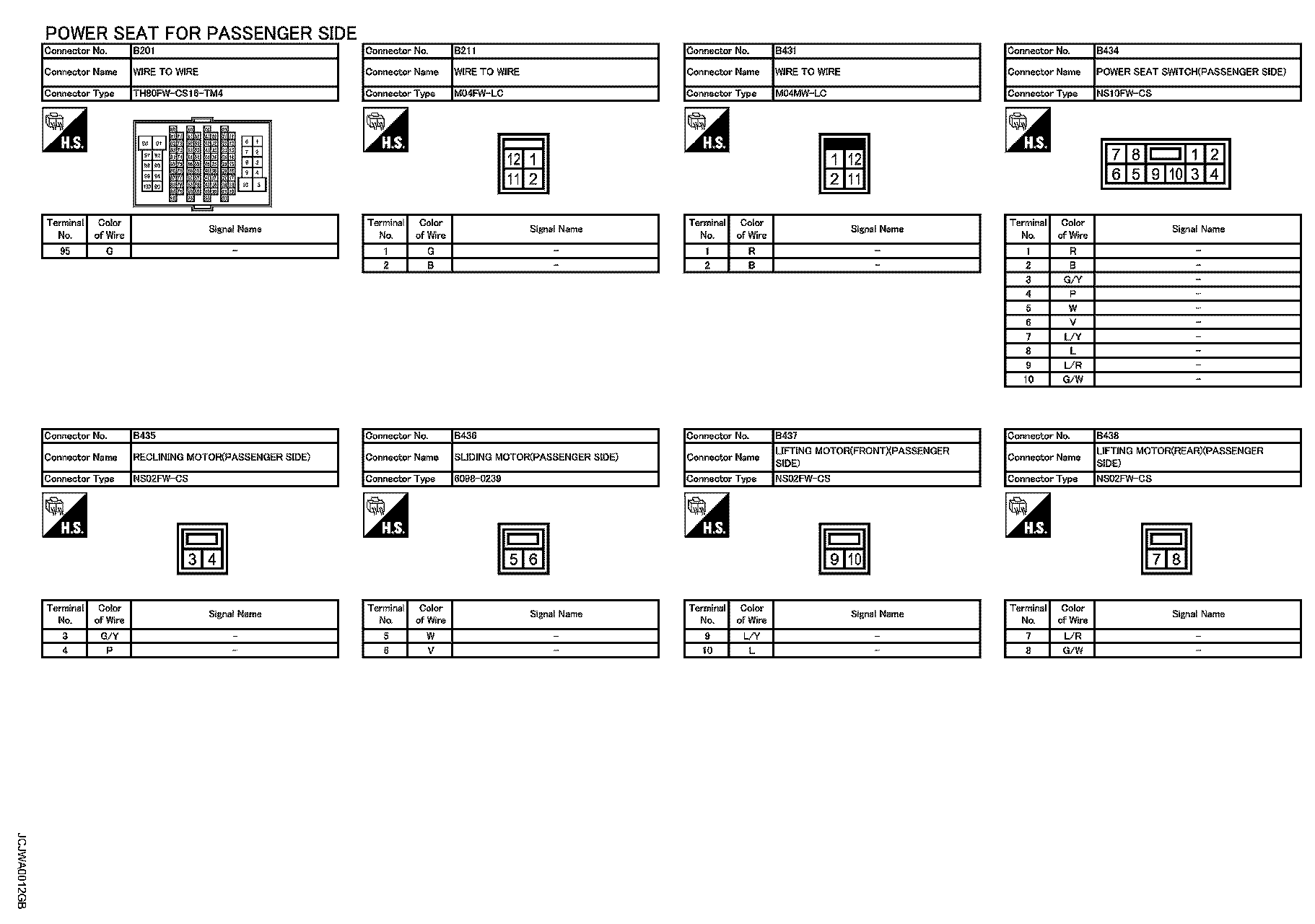

Wiring Diagram - Power Seat For Passenger Side - Part 1:

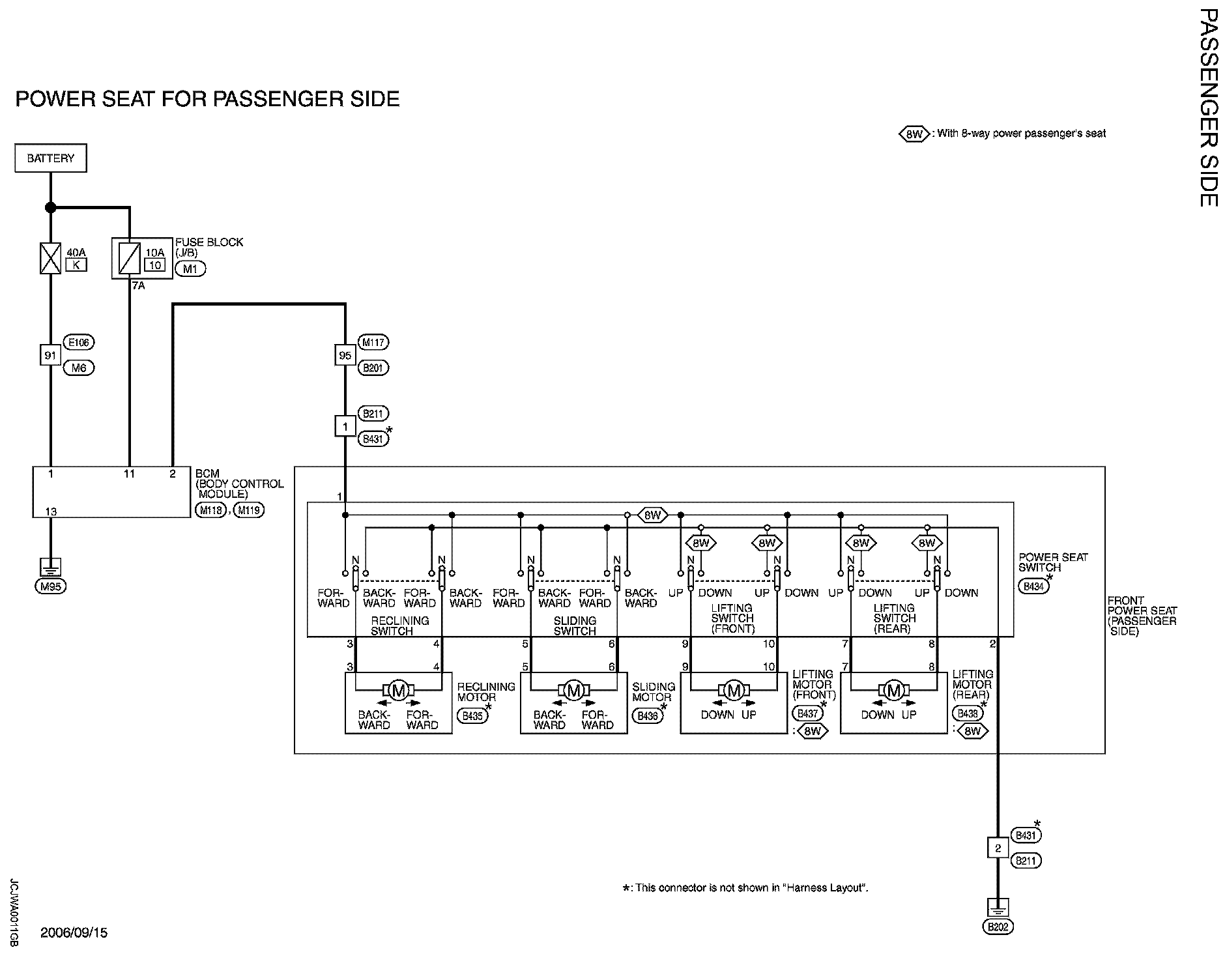

Wiring Diagram - Power Seat For Passenger Side - Part 2:

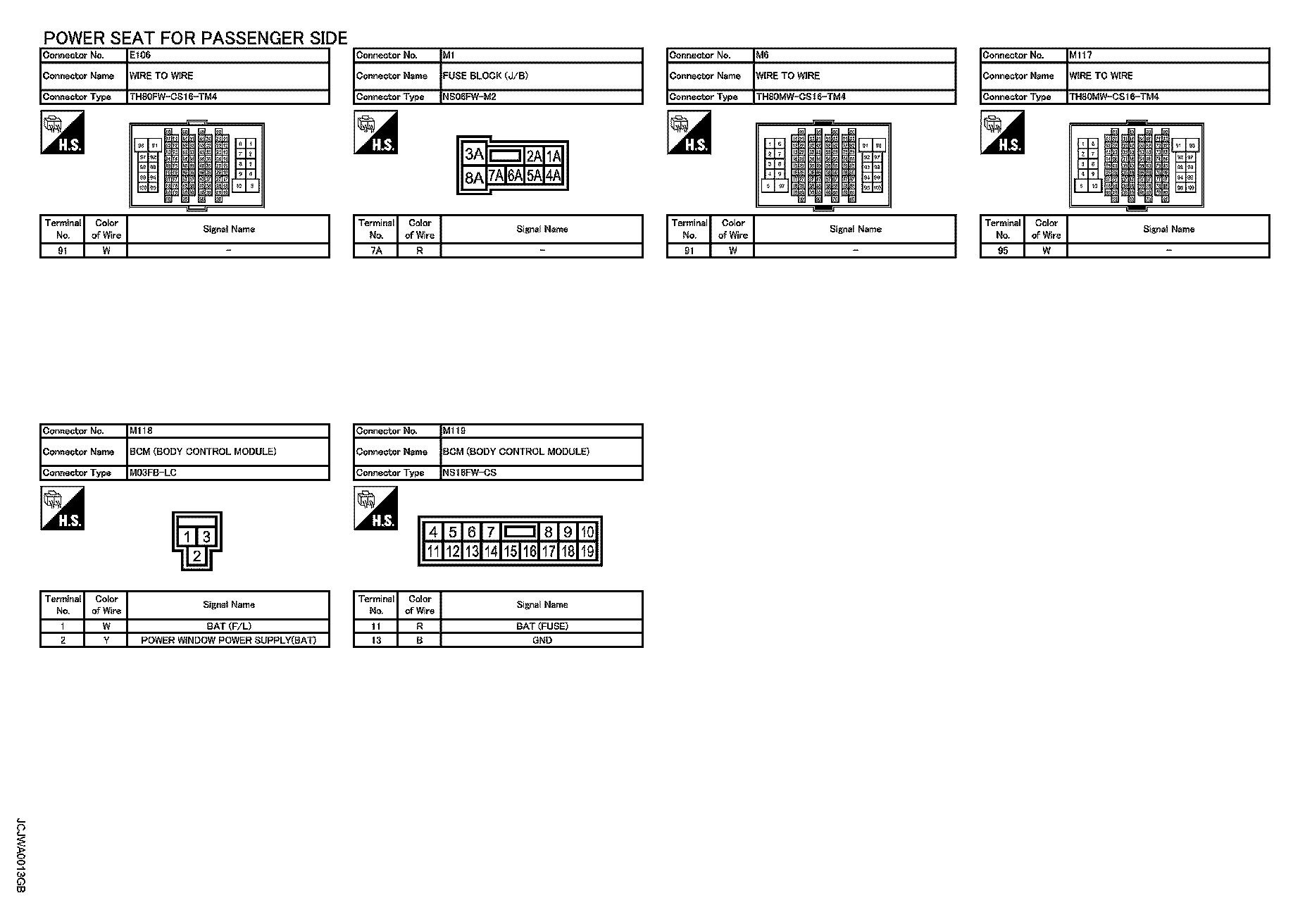

Wiring Diagram - Power Seat For Passenger Side - Part 3:
