Tilt&Telescopic System

TILT&TELESCOPIC SYSTEM

Wiring Diagram - TILT AND TELESCOPIC SYSTEM -

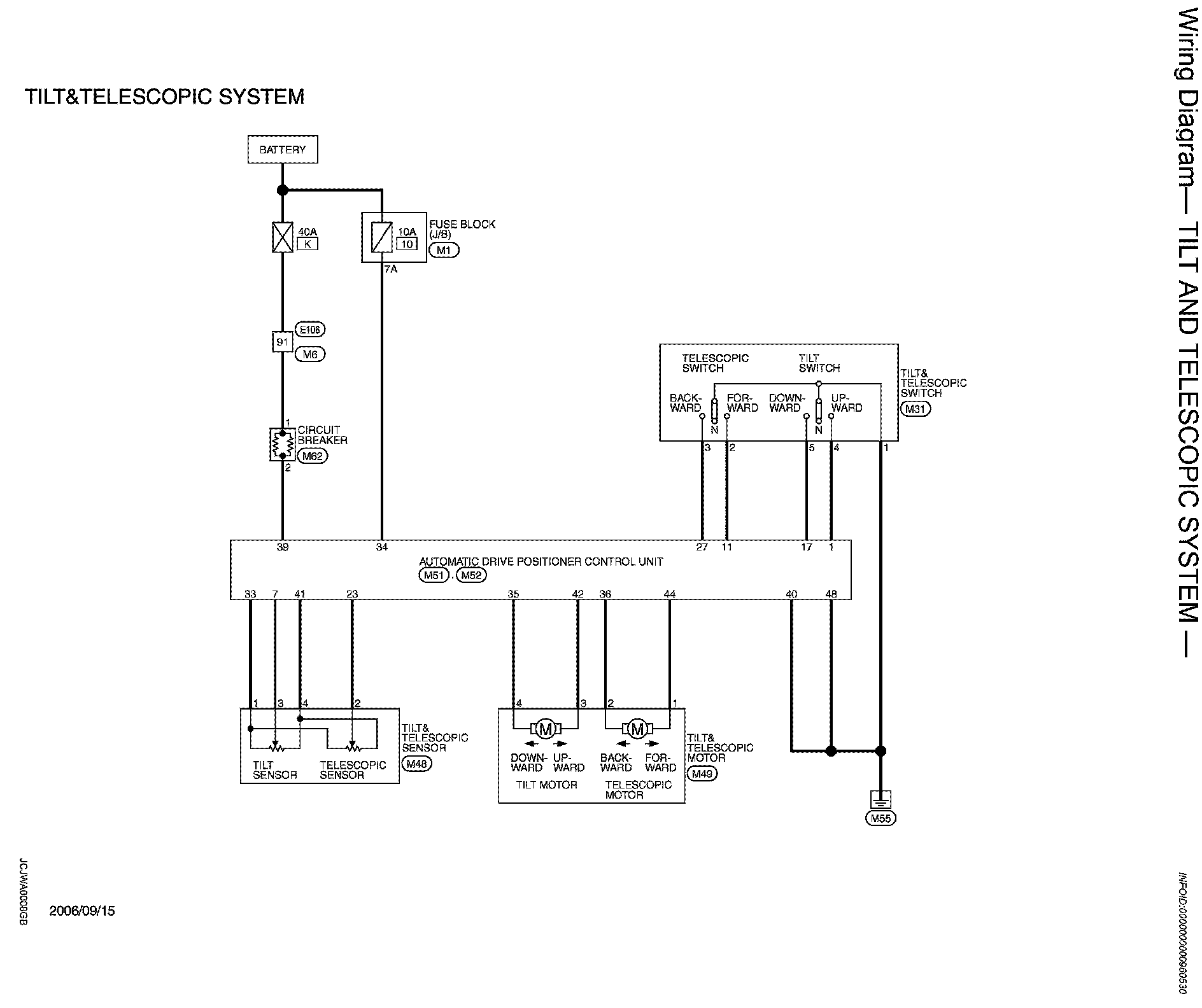

Wiring Diagram - Tilt And Telescopic System - Part 1:




Wiring Diagram - Tilt And Telescopic System - Part 2:

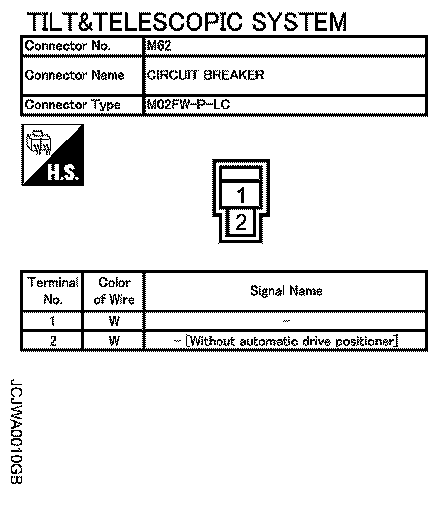

Wiring Diagram - Tilt And Telescopic System - Part 3:
