System Diagram
System Diagram
STARTING SYSTEM

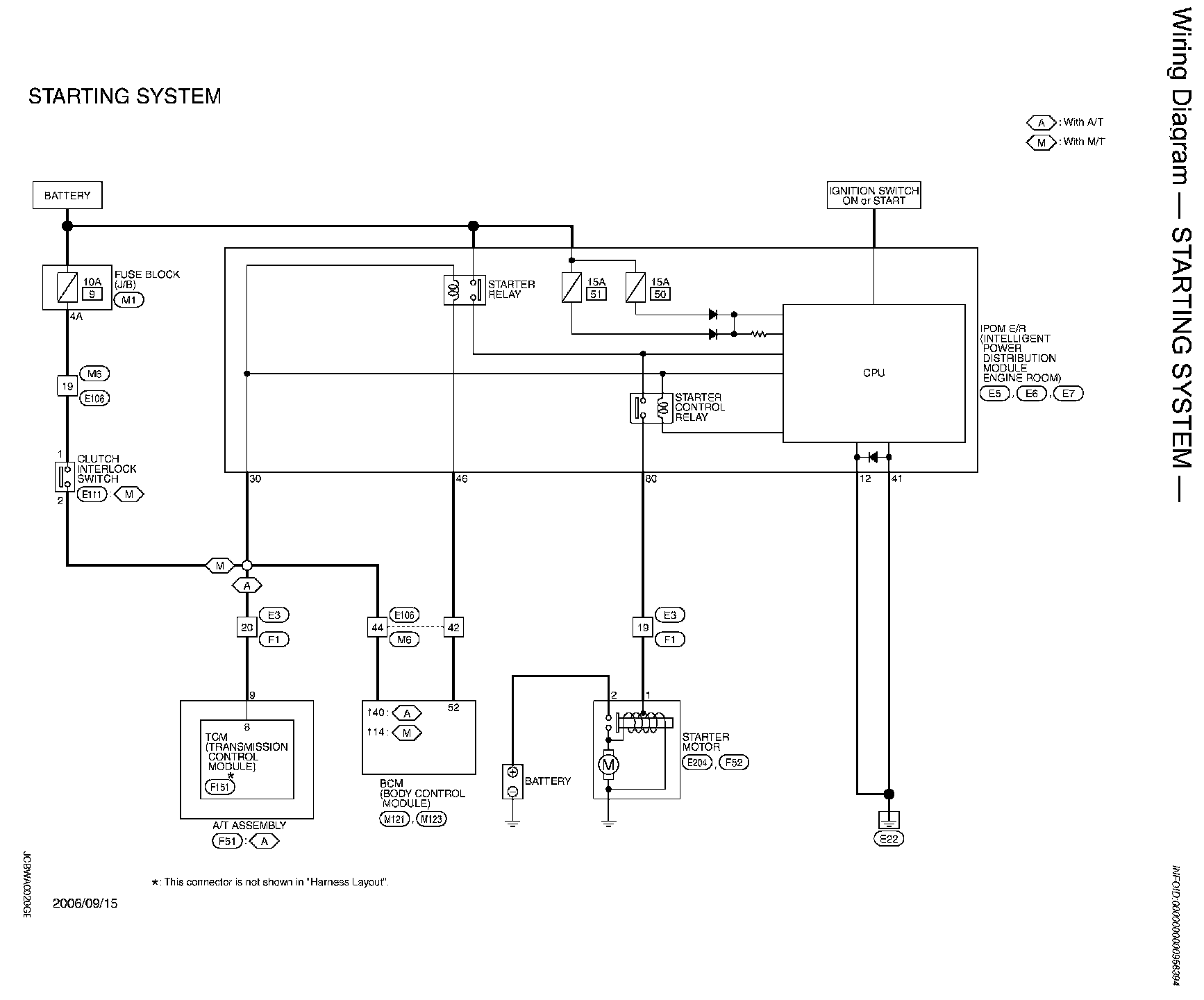

Wiring Diagram - Starting System (Part 1):
Wiring Diagram - Starting System (Part 2):

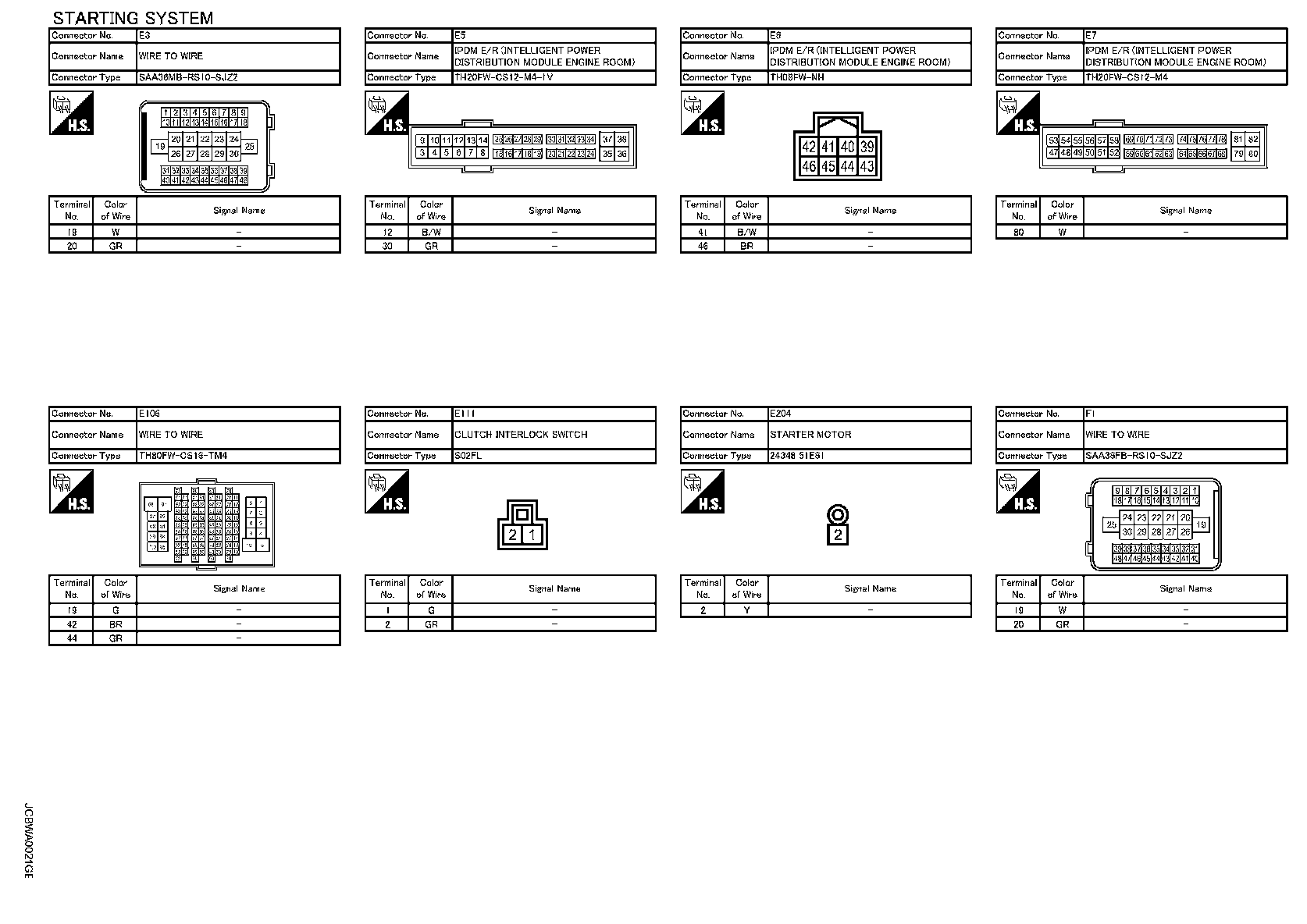

Wiring Diagram - Starting System (Part 3):
Wiring Diagram -
STARTING SYSTEM
