Sunroof System
SUNROOF SYSTEMSUNROOF MOTOR ASSEMBLY : Wiring Diagram SUNROOF CONTROL SYSTEM

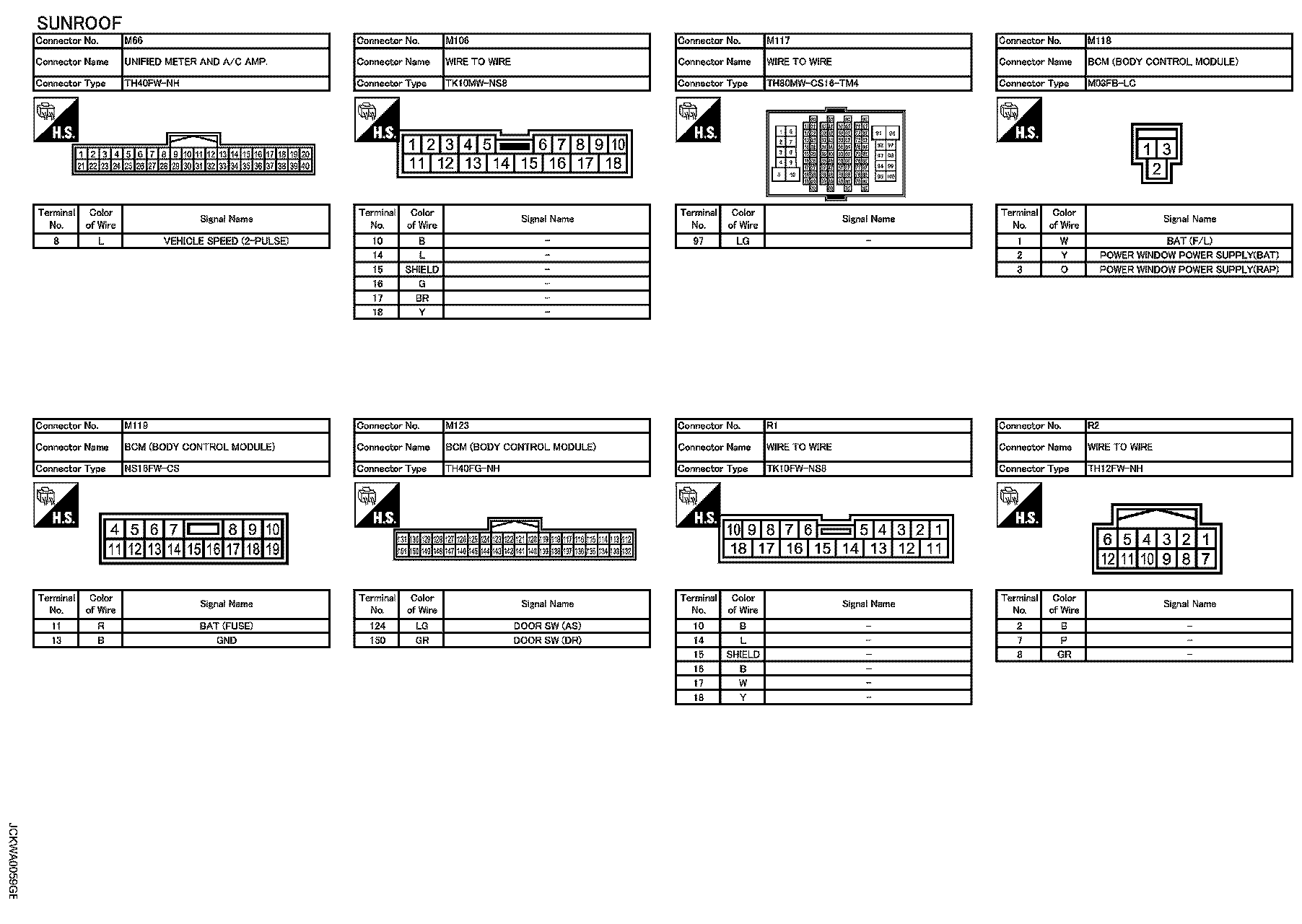

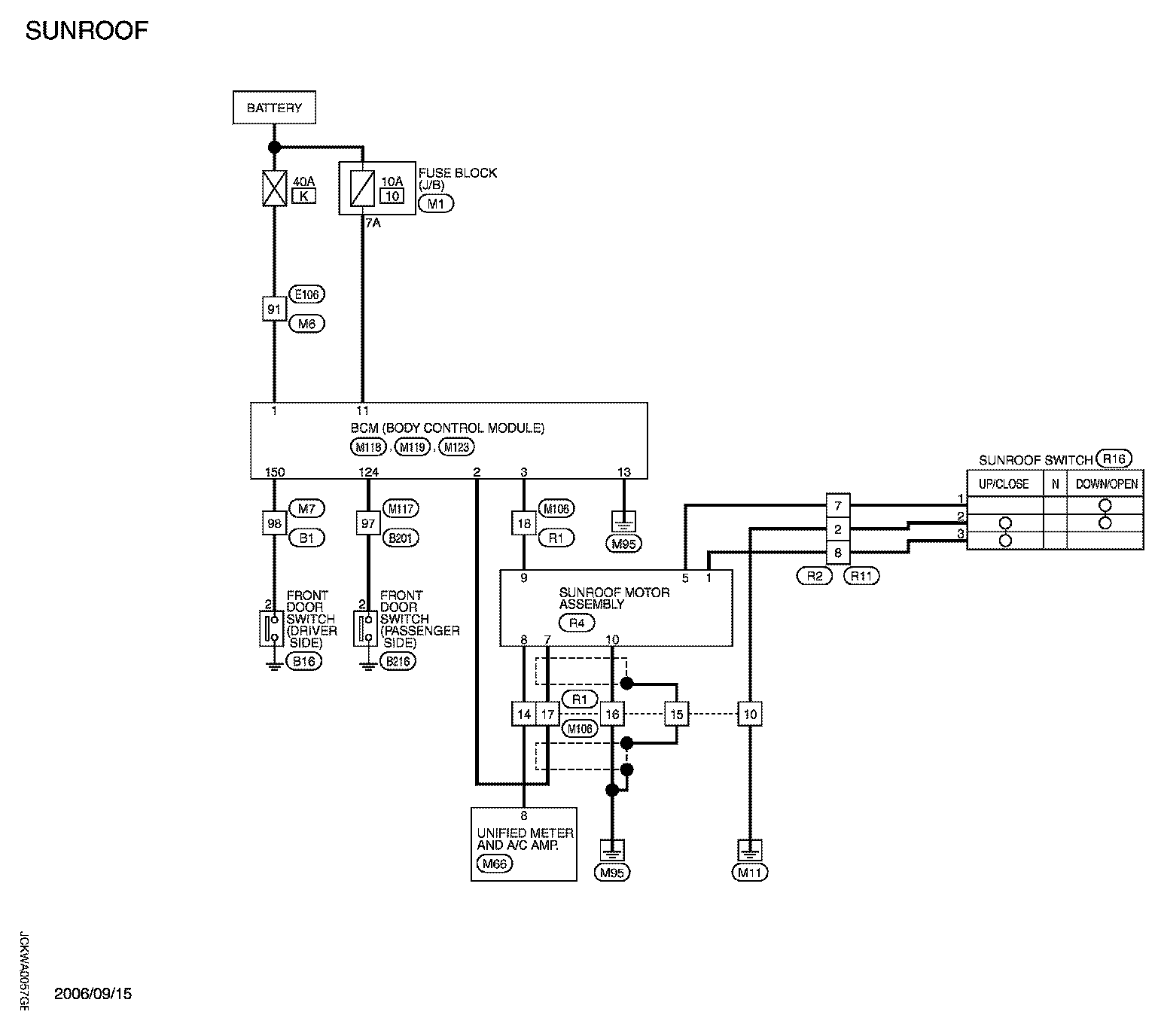

Wiring Diagram - Sunroof - Part 1:
Wiring Diagram - Sunroof - Part 2:
Wiring Diagram - Sunroof - Part 3:
Wiring Diagram - Sunroof - Part 4:
SUNROOF MOTOR ASSEMBLY : Wiring Diagram SUNROOF CONTROL SYSTEM
