Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2007
>>
G35x Sedan AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
AWD System
AWD System

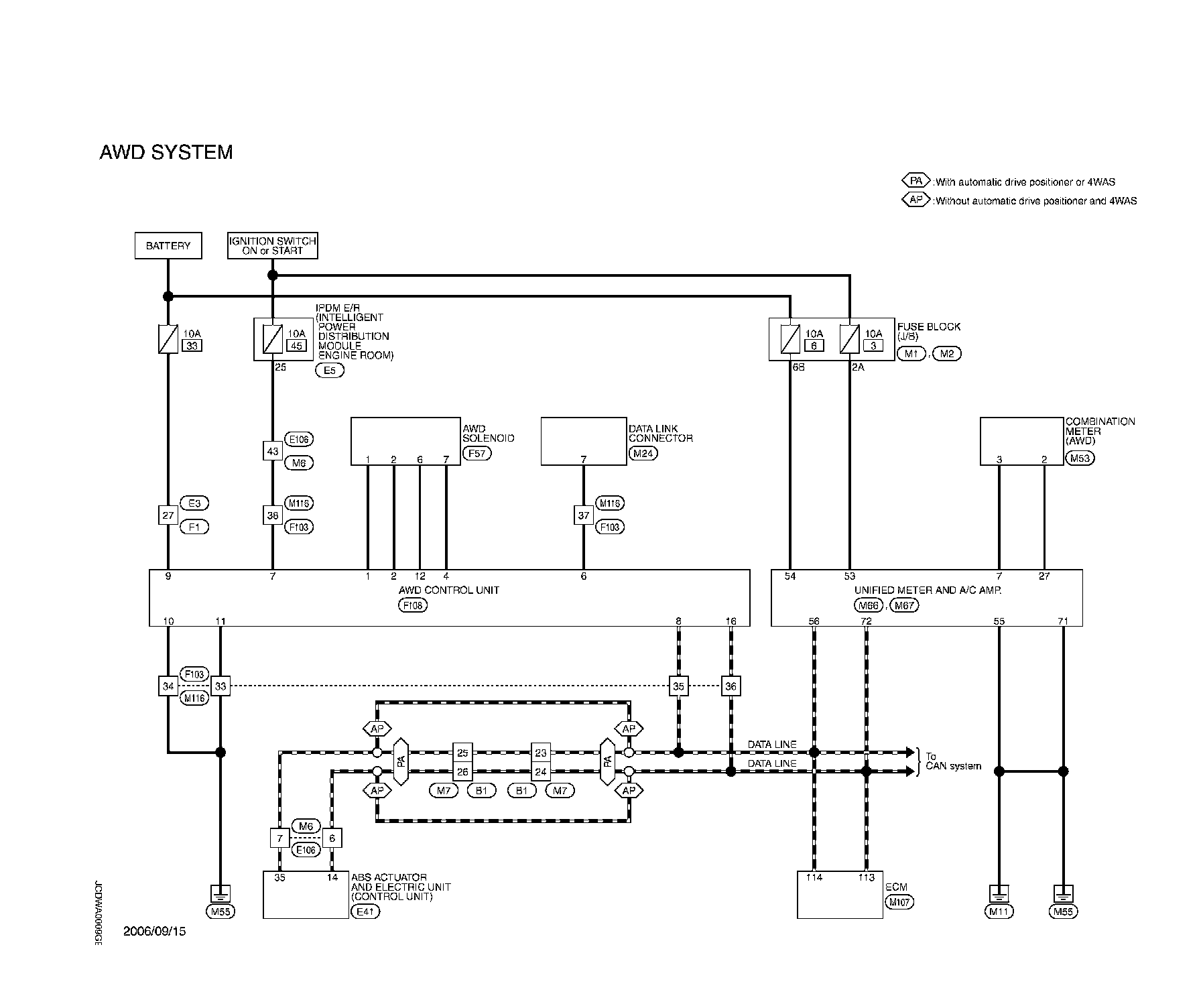

AWD System:
Diagrams:
