Manual Transmission/Transaxle

TRANSMISSION ASSEMBLY

Exploded View

CASE AND EXTENSION

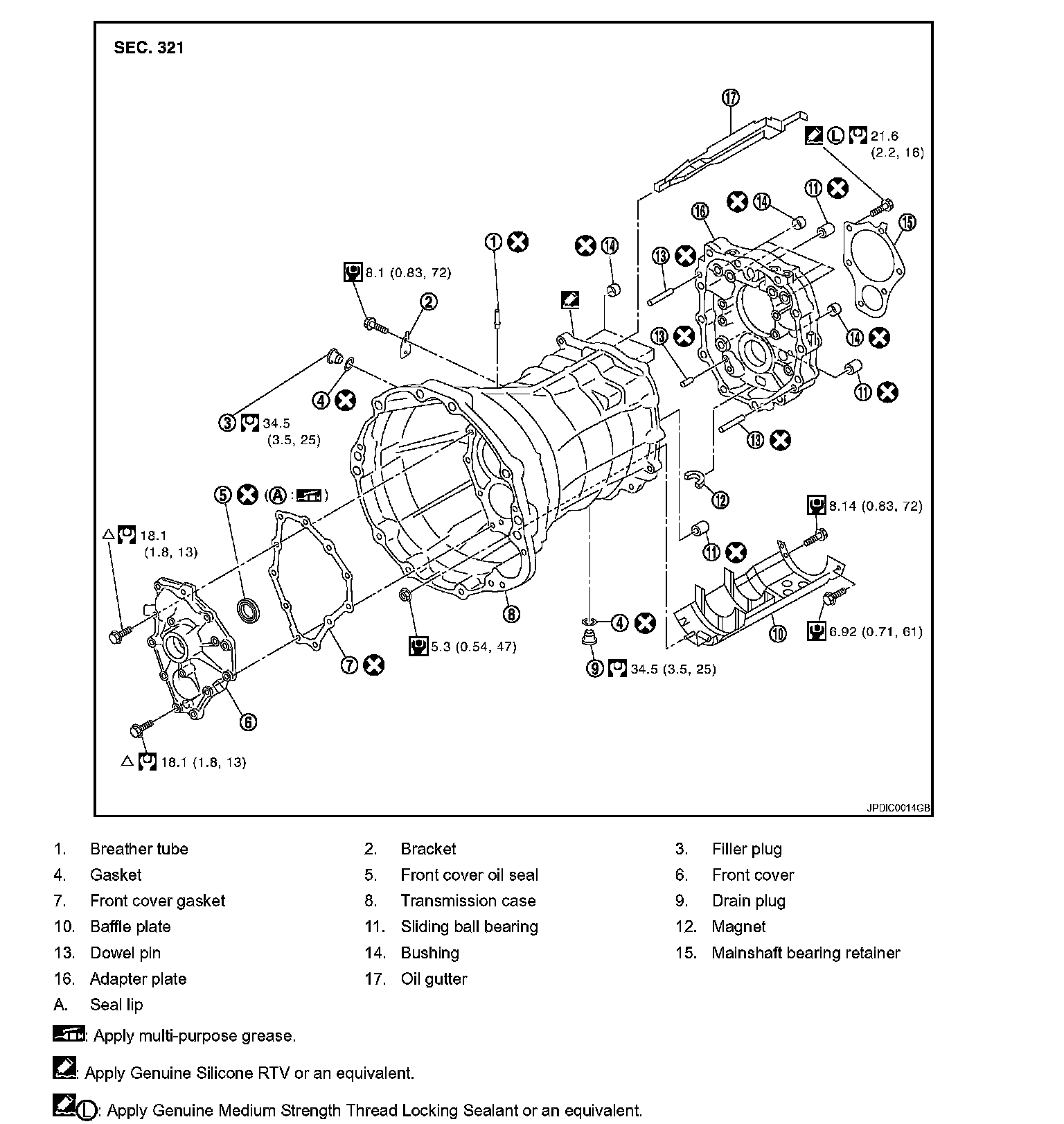

Exploded View TM-30 (Part 1):

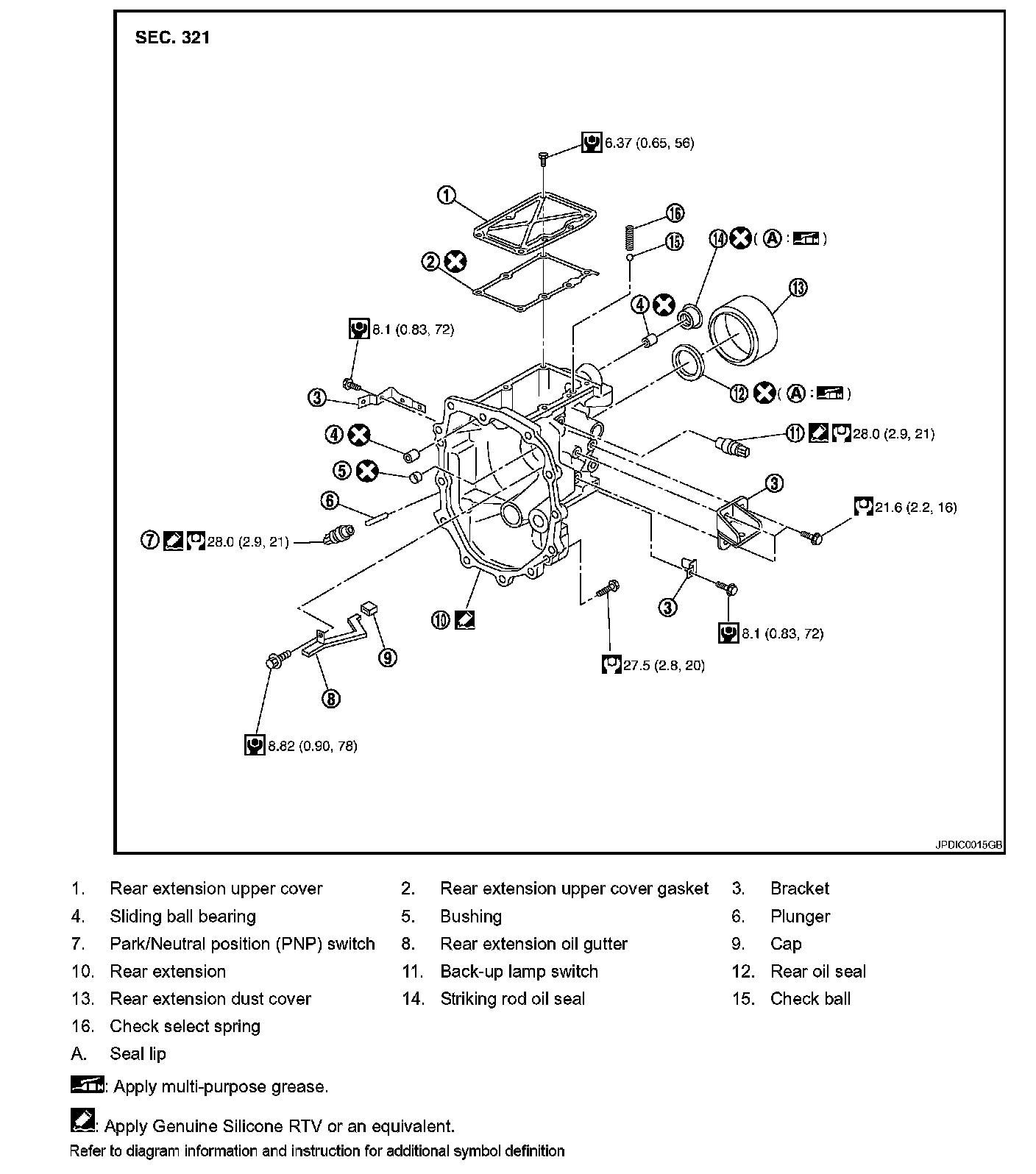

Exploded View TM-30 (Part 2):

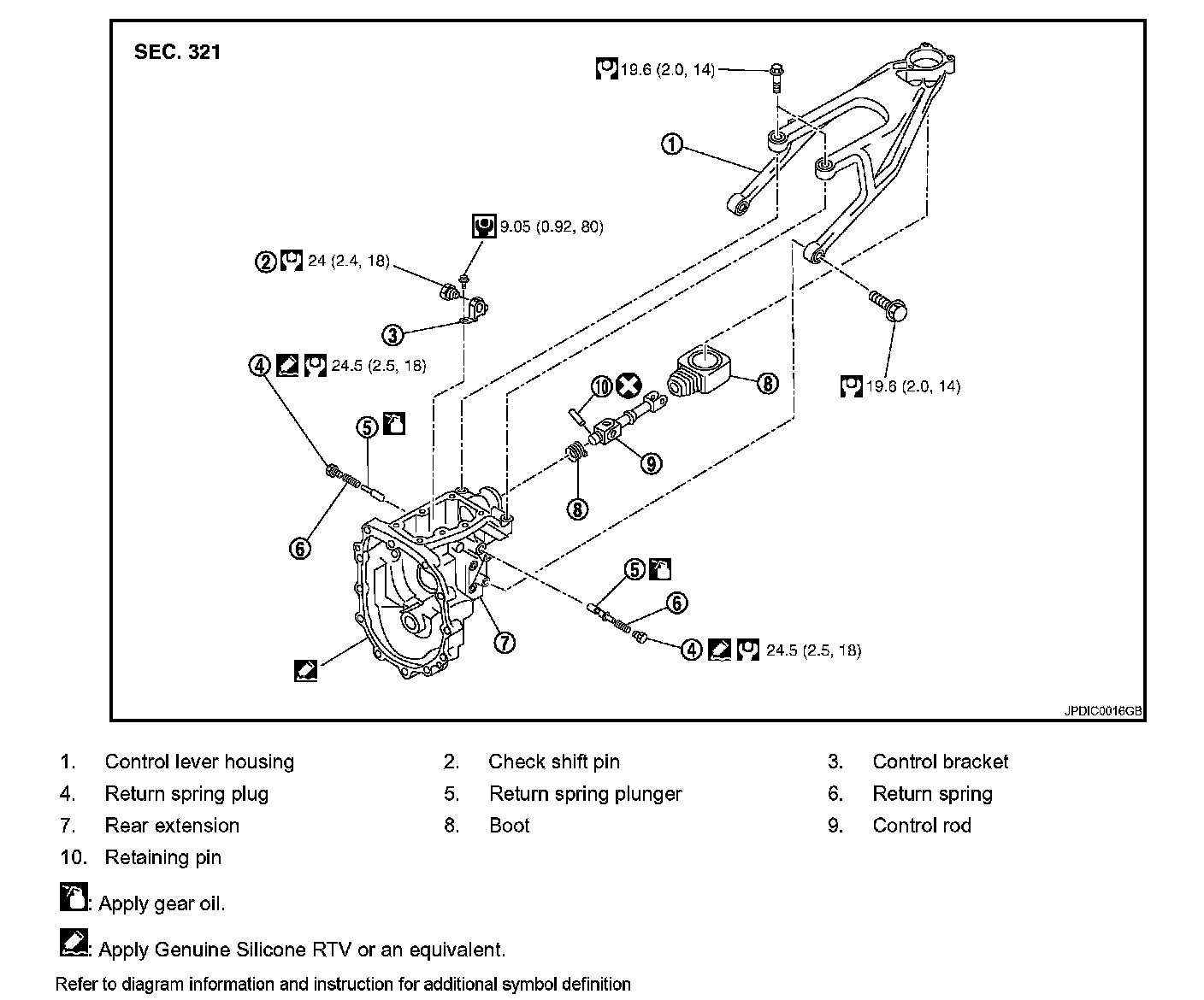

Exploded View TM-31:

SHAFT AND GEAR

Exploded View TM-32:

Exploded View TM-33:

SHIFT FORK AND FORK ROD

Exploded View TM-34:

Exploded View TM-35:
