Home >> Infiniti >> 2007 >> G35x Sedan AWD V6-3.5L (VQ35HR) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Parking Brake Control >> Lever Type

Lever Type

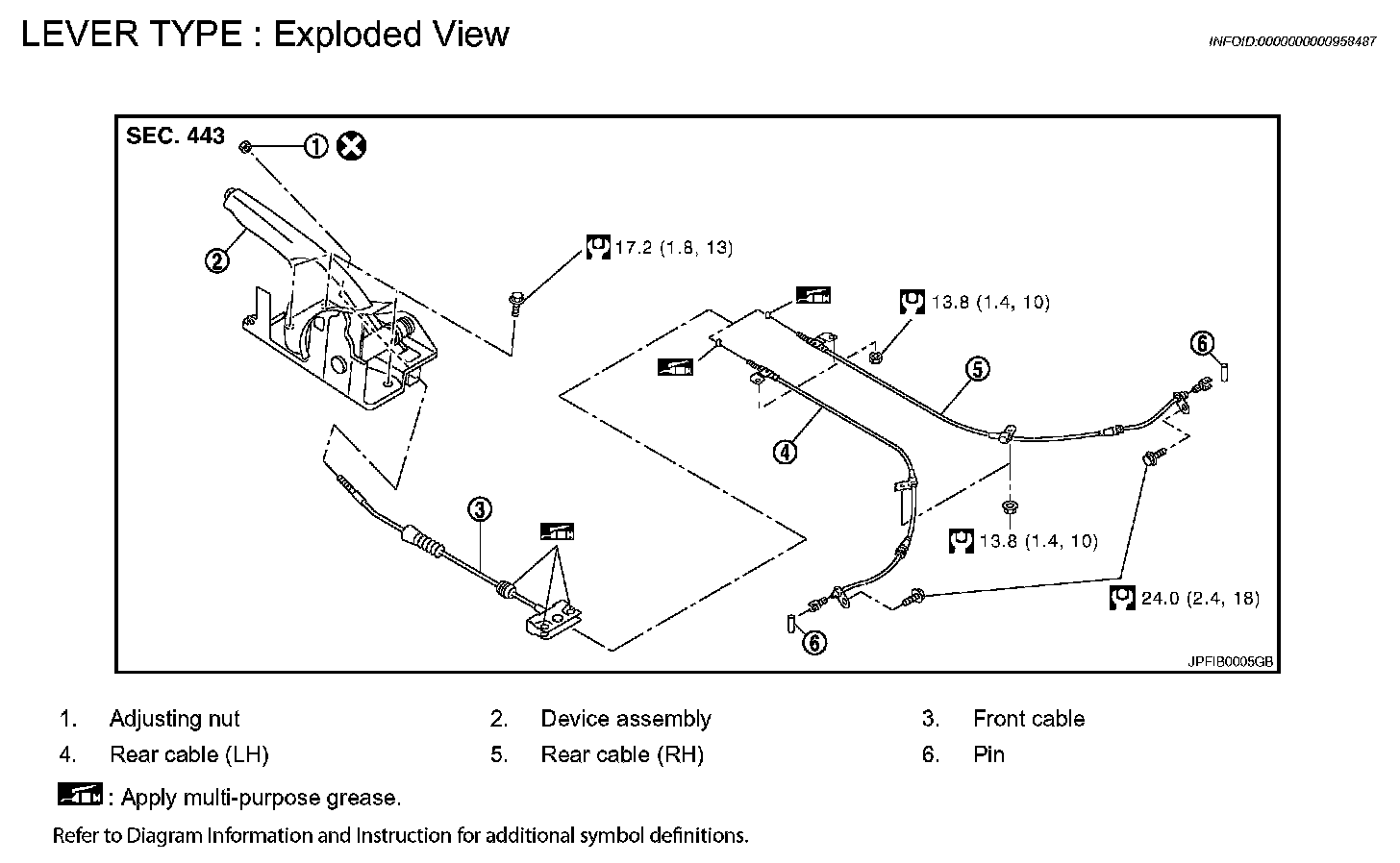

Exploded View PB-8:
