Engine Lubrication: Diagrams

DESCRIPTION





Engine Lubrication System

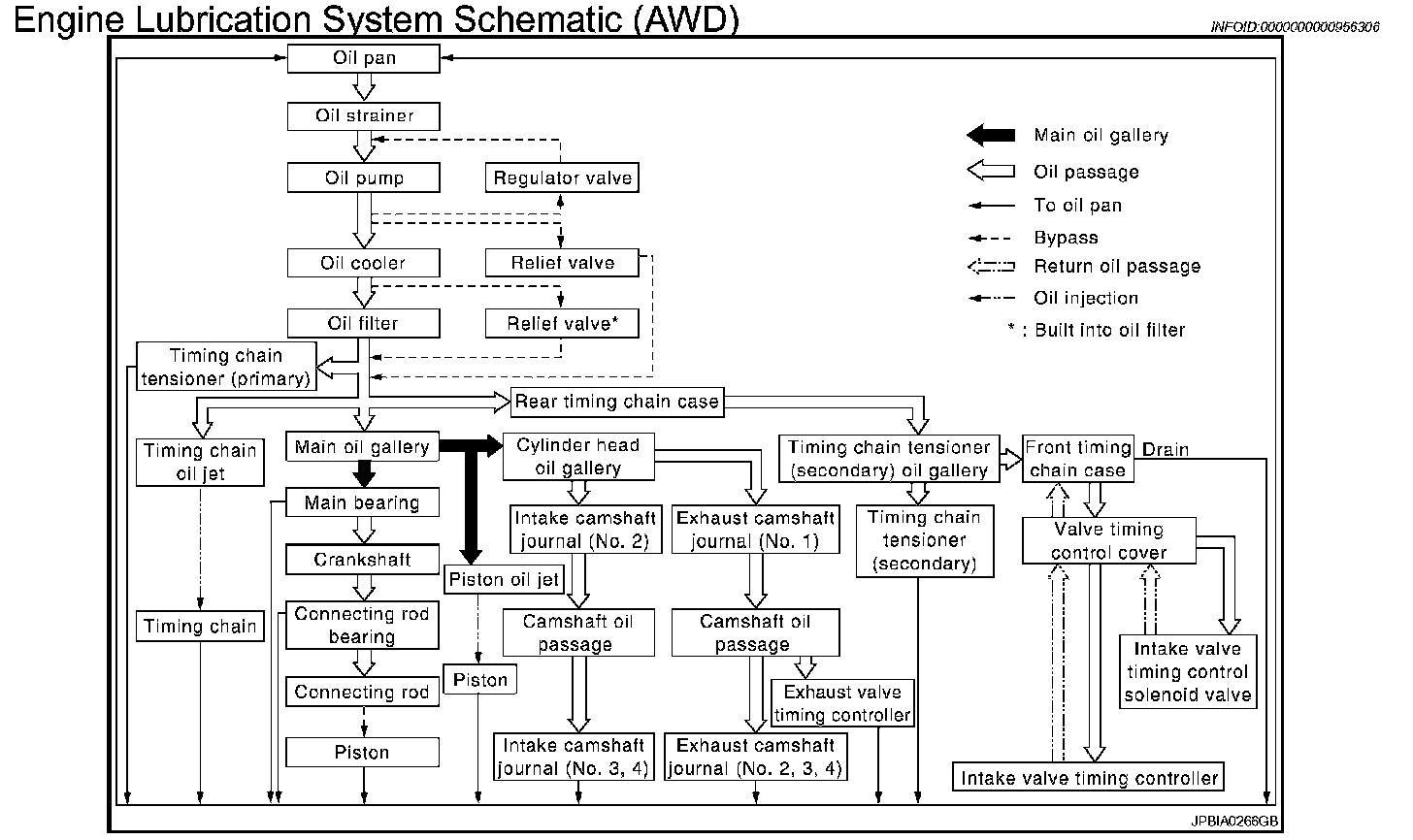

Engine Lubrication System Schematic
