Magnet Clutch Control System
MAGNET CLUTCH CONTROL SYSTEMDescription
SYSTEM DESCRIPTION
Unified meter and A/C amp. controls compressor operation by ambient temperature, intake air temperature and signal from ECM.

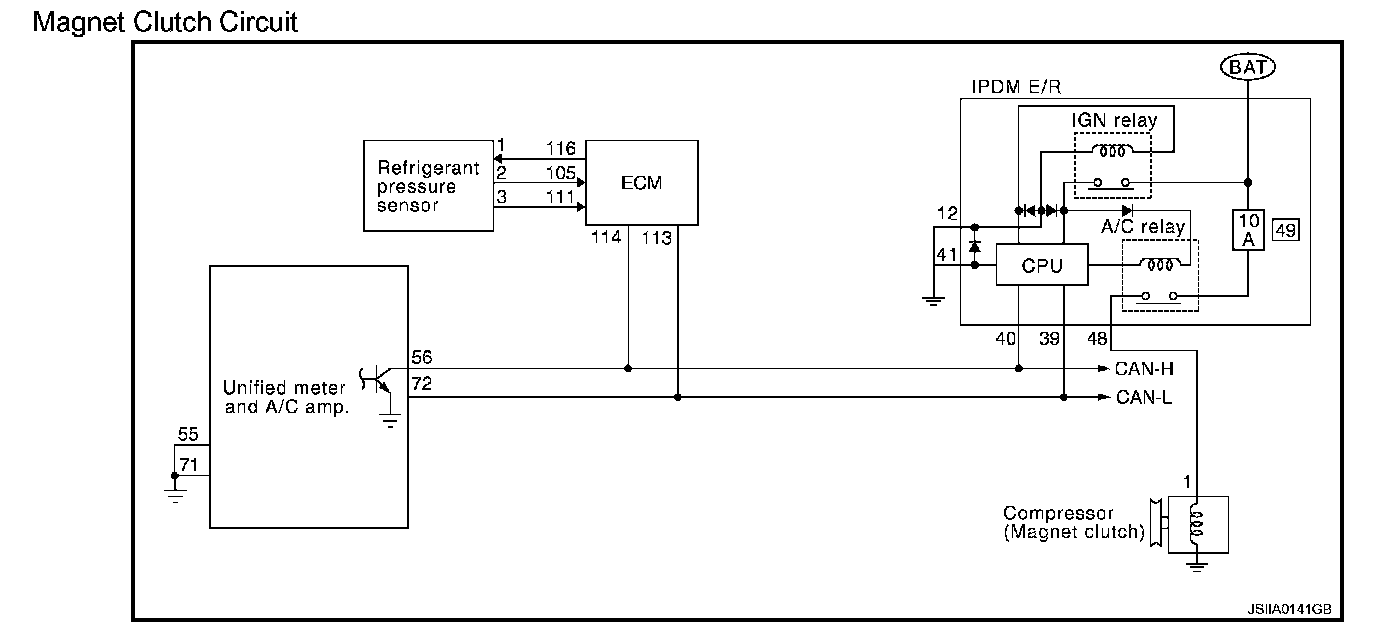

Magnet Clutch Circuit
Low Temperature Protection Control
Unified meter and A/C amp. will turn compressor ON or OFF as determined by a signal detected by ambient sensor and intake sensor.
When ambient temperature is higher than 2 °C (28 °F), the compressor turns ON. The compressor turns OFF when ambient temperature is lower than 5 °C (23 °F).

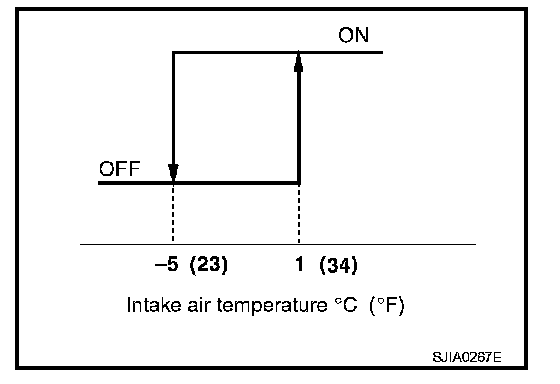

When intake air temperature is higher than 1°C (34 °F), the compressor turns ON. The compressor turns OFF when intake air temperature is lower than 5 °C (23 °F).
