Receiver Dryer: Service and Repair

LIQUID TANK

Exploded View HA-56:

Exploded View

Removal and Installation

REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove front grille.
3. Clean liquid tank and its surrounding area, and remove dust and rust from liquid tank.

CAUTION: Be sure to clean carefully.

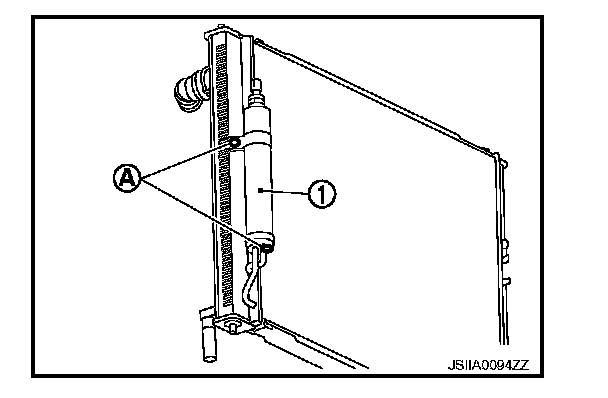

4. Remove mounting bolts (A) from liquid tank (1).
5. Remove liquid tank.

INSTALLATION
Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:
- Make sure liquid tank bracket is securely installed at protrusion of condenser. (Make sure liquid tank bracket does not move to a position below center of liquid tank.)
- Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing it.
- When recharging refrigerant, check for leaks.
