Pinout Values and Diagnostic Parameters

TERMINAL LAYOUT

Terminals And Reference Values (Part 1):

Terminals And Reference Values (Part 2):

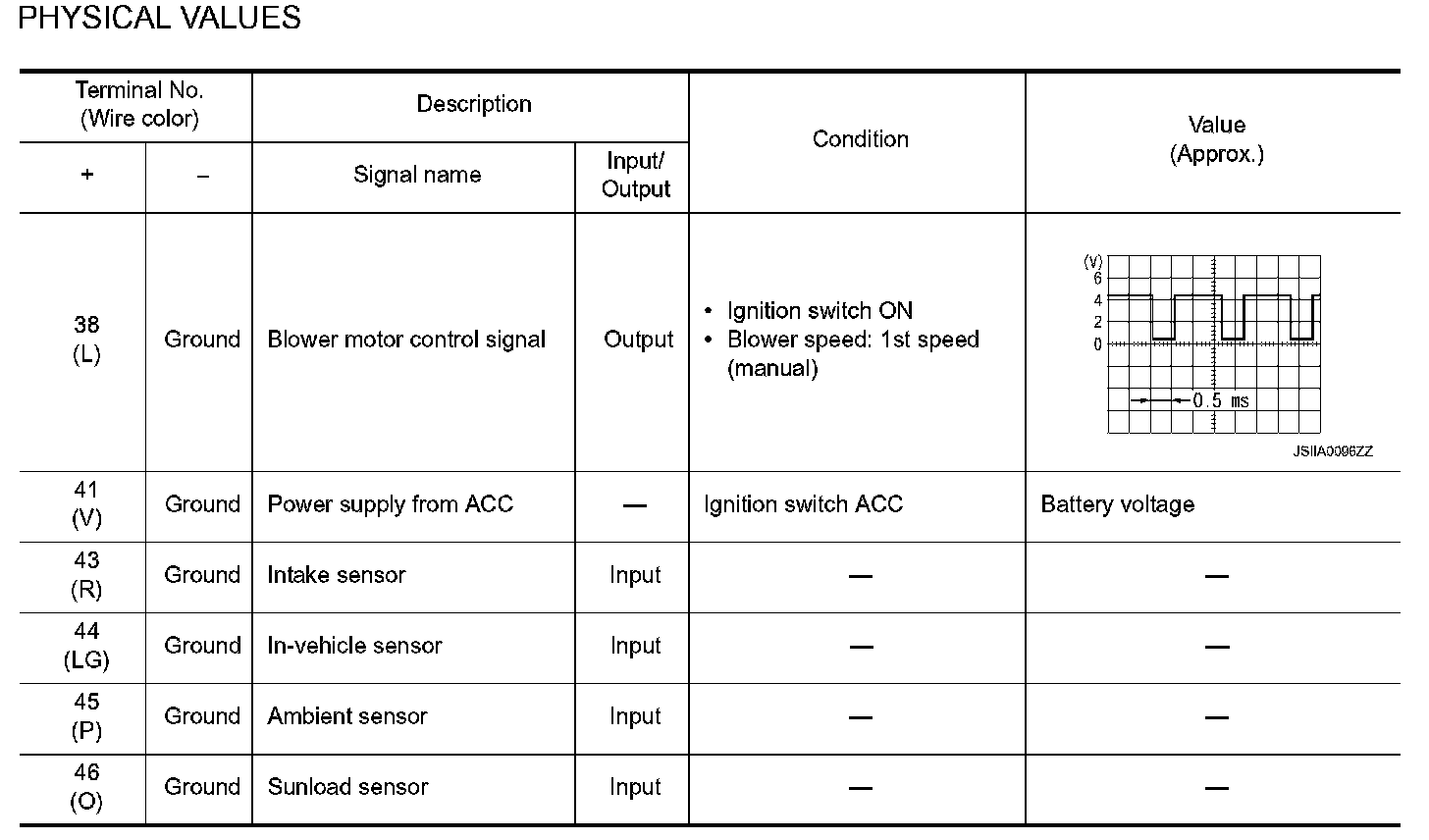

PHYSICAL VALUES
