Cigarette Lighter: Service and Repair

ON-VEHICLE REPAIR

CIGARETTE LIGHTER

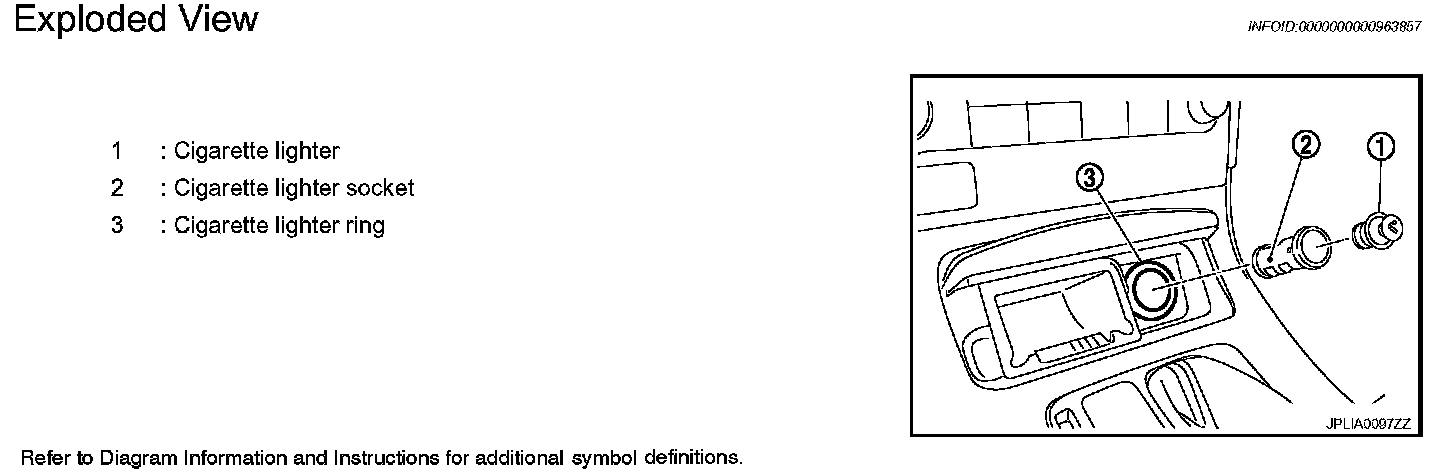

Exploded View PWO-7:

Exploded View

Removal and Installation

REMOVAL
1. Remove console finisher.

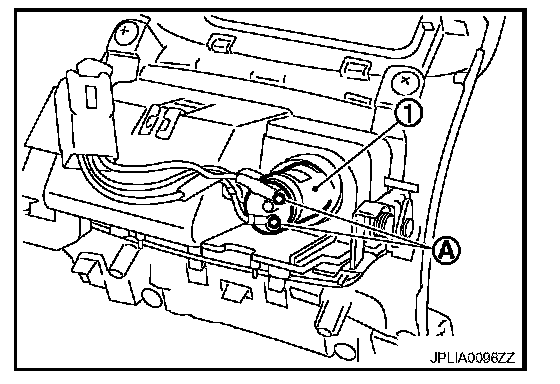

2. Remove screws (A) from reverse side cigarette lighter socket (1).




3. Pull out cigarette lighter (1).

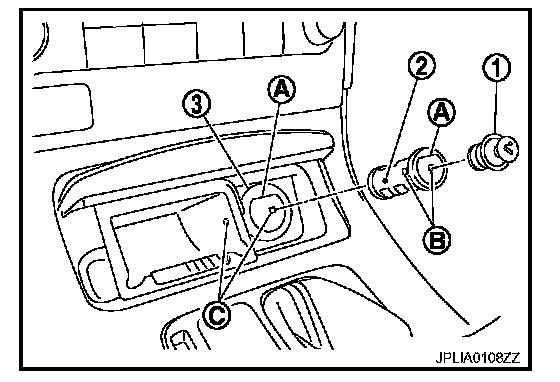

4. Pull out the cigarette lighter socket (2) by pushing the cigarette lighter ring pawl (C) from the cigarette lighter socket hole (square).

3 : Cigarette lighter ring
A : Cut out
B : Hole (square)




INSTALLATION

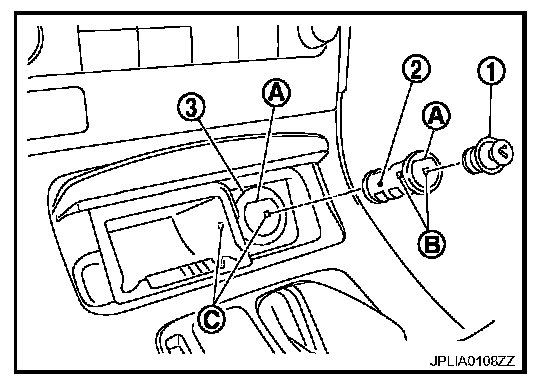

Note the following, and install in the reverse order of removal.
1 : Cigarette lighter
2 : Cigarette lighter socket
3 : Cigarette lighter ring 3 : Cigarette lighter ring
A : Cut out
B : Hole (square)
C : Pawl

CAUTION: Align the cigarette lighter socket and cigarette lighter ring cut out.
