Unified Meter and A/C Amp.

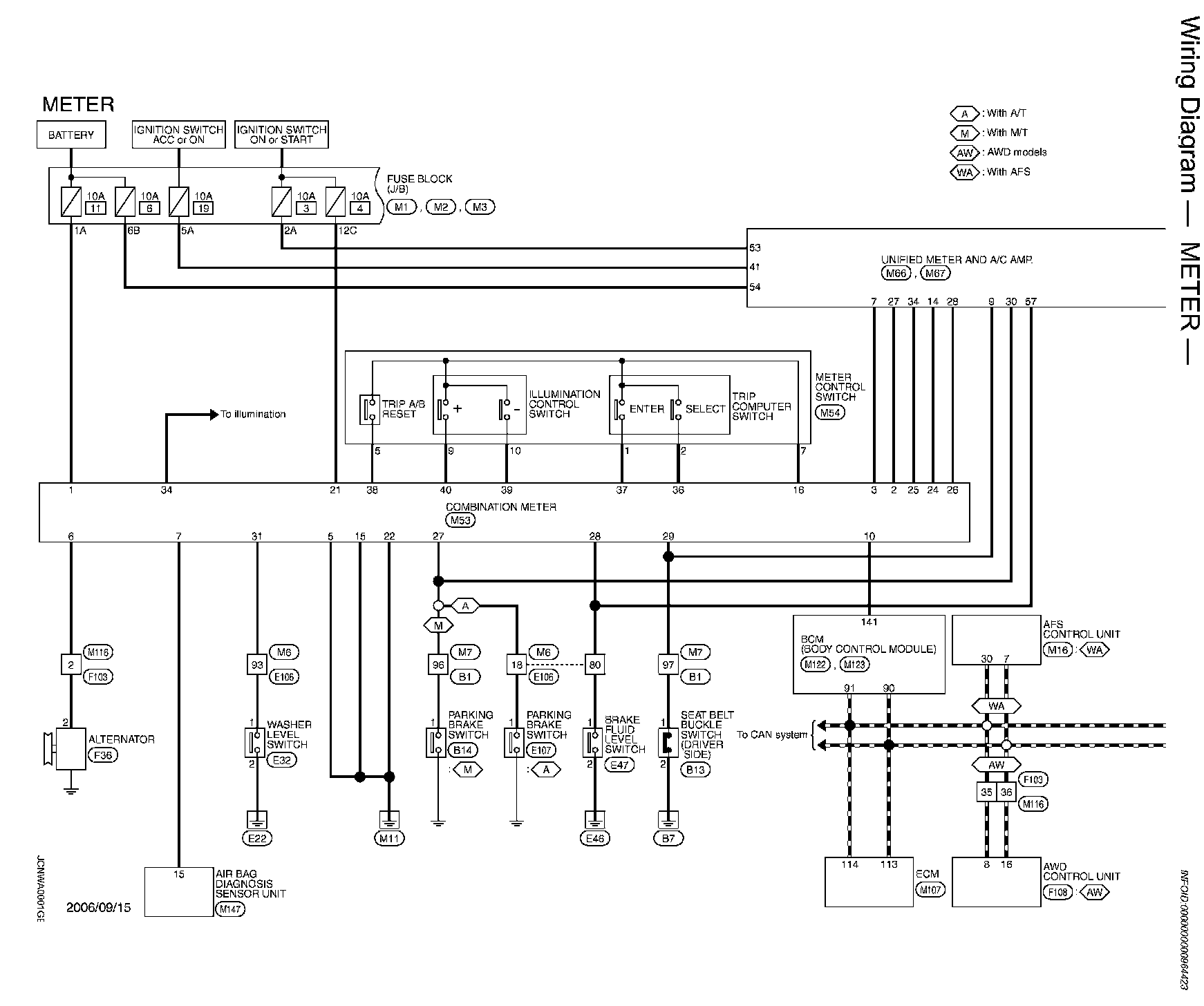

Wiring Diagram - Meter (Part 1):

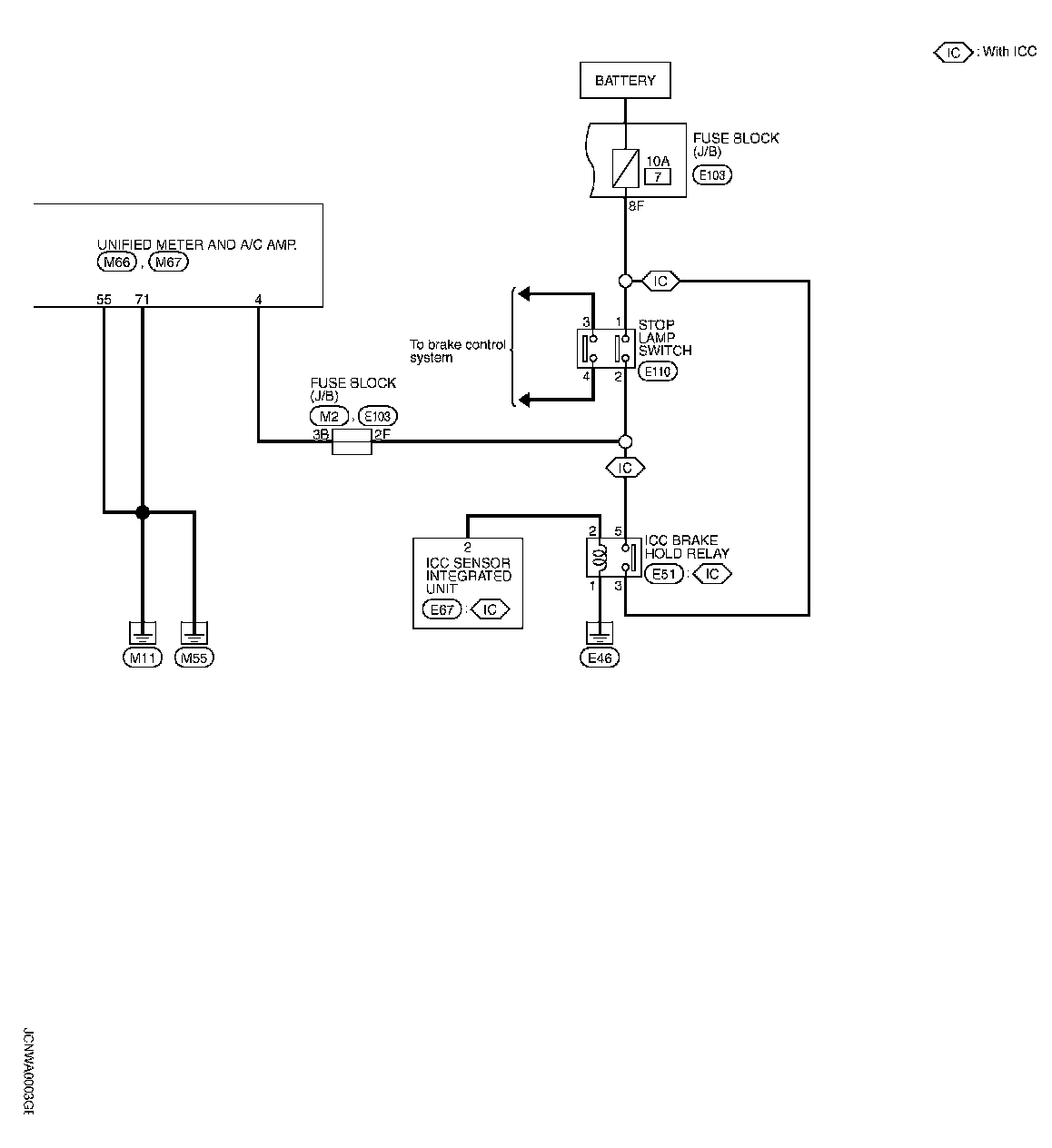

Wiring Diagram - Meter (Part 2):

Wiring Diagram - Meter (Part 3):

Wiring Diagram - Meter (Part 4):

Wiring Diagram - Meter (Part 5):

Wiring Diagram - Meter (Part 6):

Wiring Diagram - Meter (Part 7):

Wiring Diagram - Meter (Part 8):

Wiring Diagram - Meter (Part 9):

Wiring Diagram - Meter (Part 10):
