Instrument Cluster / Carrier: Service and Repair
ON-VEHICLE REPAIRCOMBINATION METER

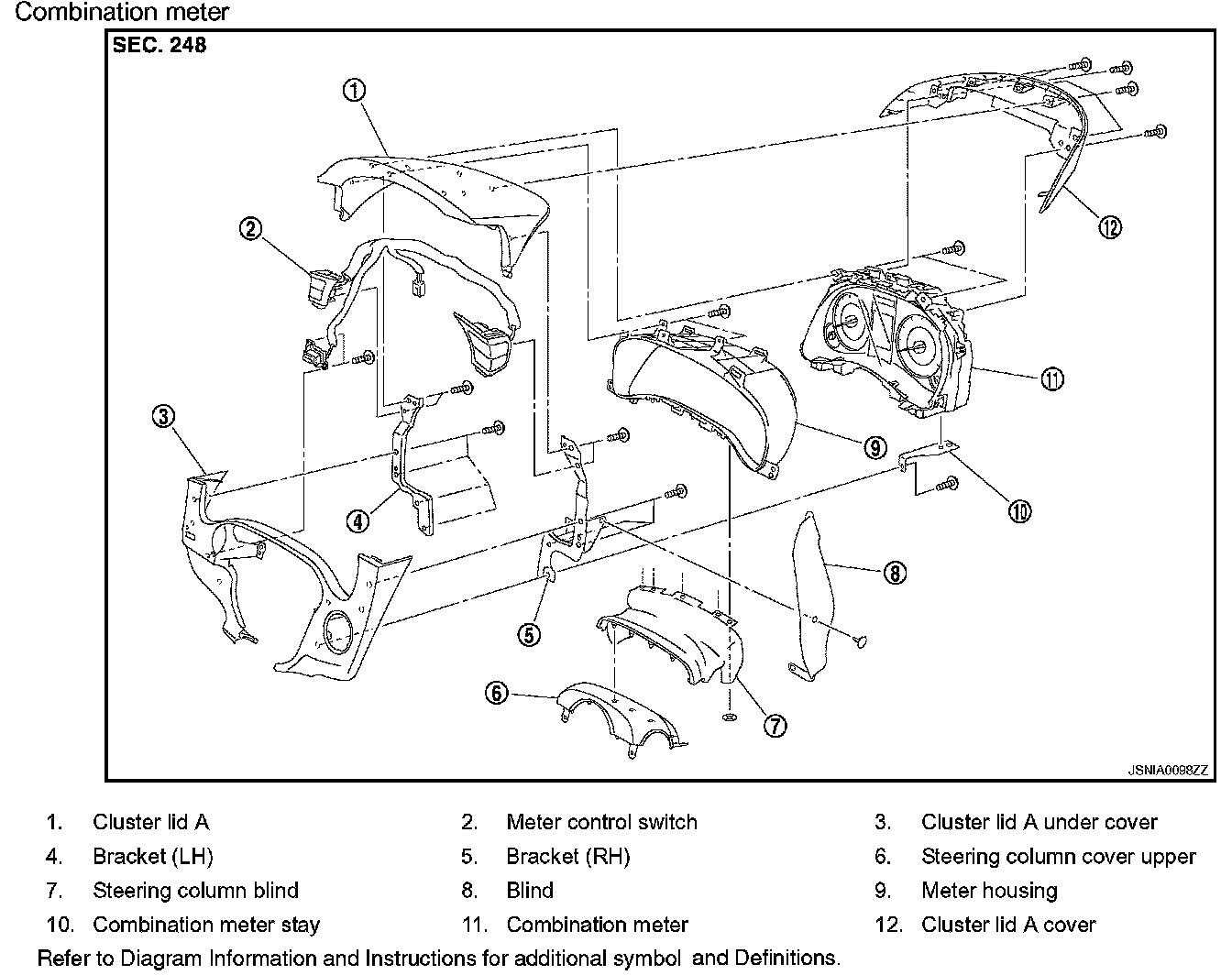

Exploded View
REMOVAL
Exploded View IP-11 (Part 1):
Exploded View IP-11 (Part 2):
Cluster lid A assembly
Exploded View MWI-156:
COMBINATION METER
Exploded View MWI-156:
DISASSEMBLY
Removal and Installation
REMOVAL
1. Remove cluster lid A assembly.

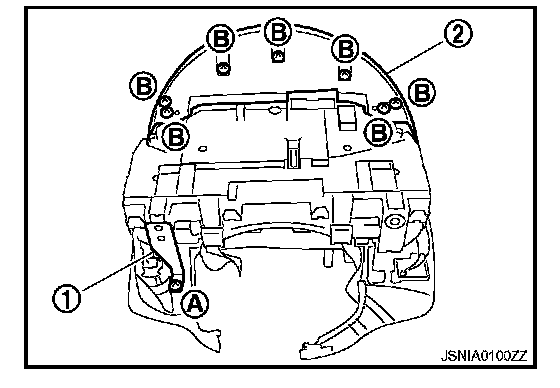

2. Remove screw (A) and remove combination meter stay (1).
3. Remove screws (B) and remove cluster lid A cover (2).

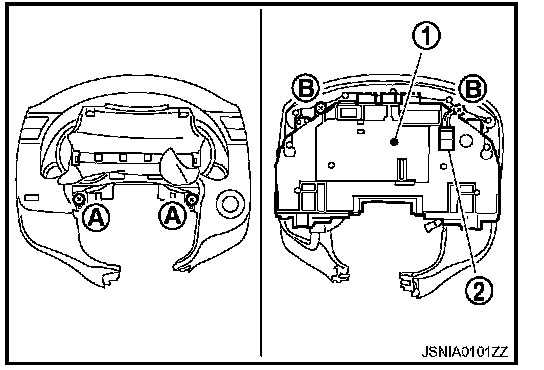

4. Remove screws (A), (B) and remove combination meter (1).
5. Remove meter control switch connector (2) from combination meter (1).
INSTALLATION
Install in the reverse order of removal. Disassembly and Assembly

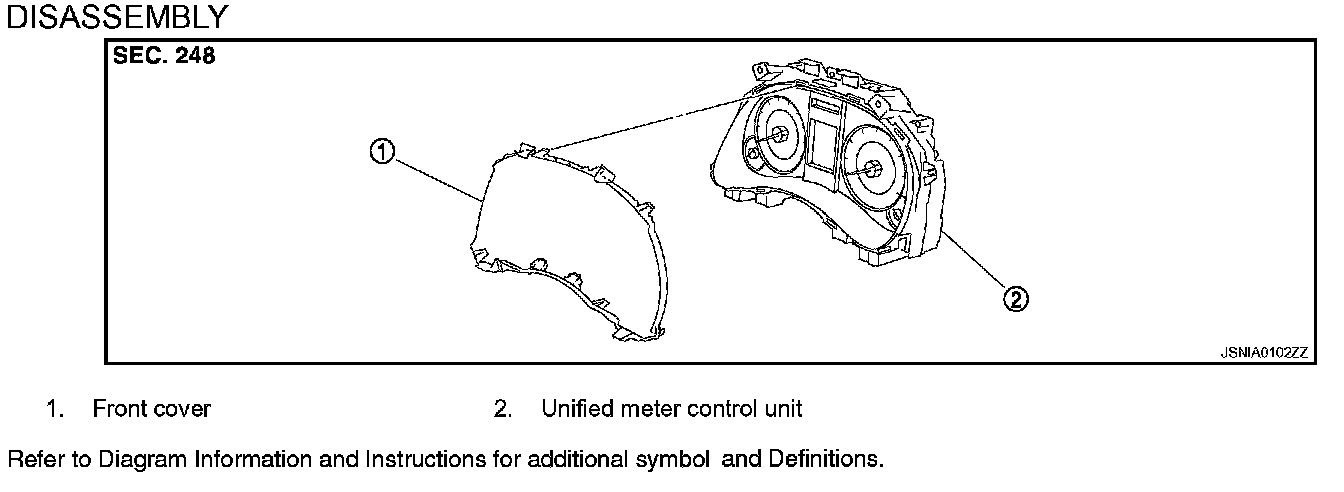

DISASSEMBLY
Disengage the tabs to separate front cover.
ASSEMBLY
Assemble in the reverse order of disassembly.
