Meter Control Switch

METER CONTROL SWITCH

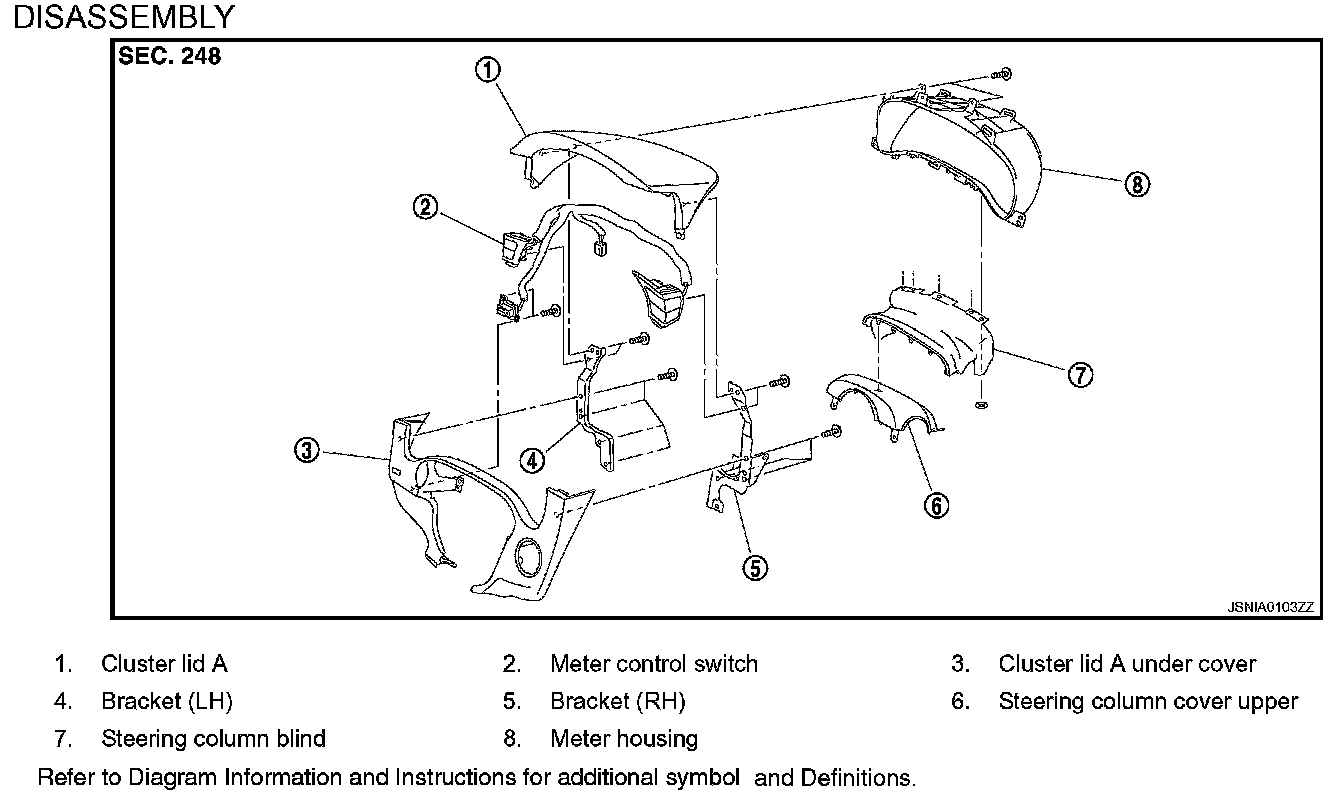

Exploded View

Exploded View IP-11 (Part 1):

Exploded View IP-11 (Part 2):

REMOVAL

Exploded View MWI-159:

DISASSEMBLY

Removal and Installation

REMOVAL
1. Remove combination meter.




2. Remove screws (A) and remove bracket RH (1), LH (2).
3. Remove screws (B) and remove meter control switch.

INSTALLATION
Install in the reverse order of removal.
