Meter Control Switch Signal Circuit

METER CONTROL SWITCH SIGNAL CIRCUIT

Description
Transmits the following signals to the combination meter.
- Illumination control signal (+) - Illumination control signal (-)
- Trip A/B reset signal - Select switch signal
- Enter switch signal

Step 1-2:

Step 2(Continued):

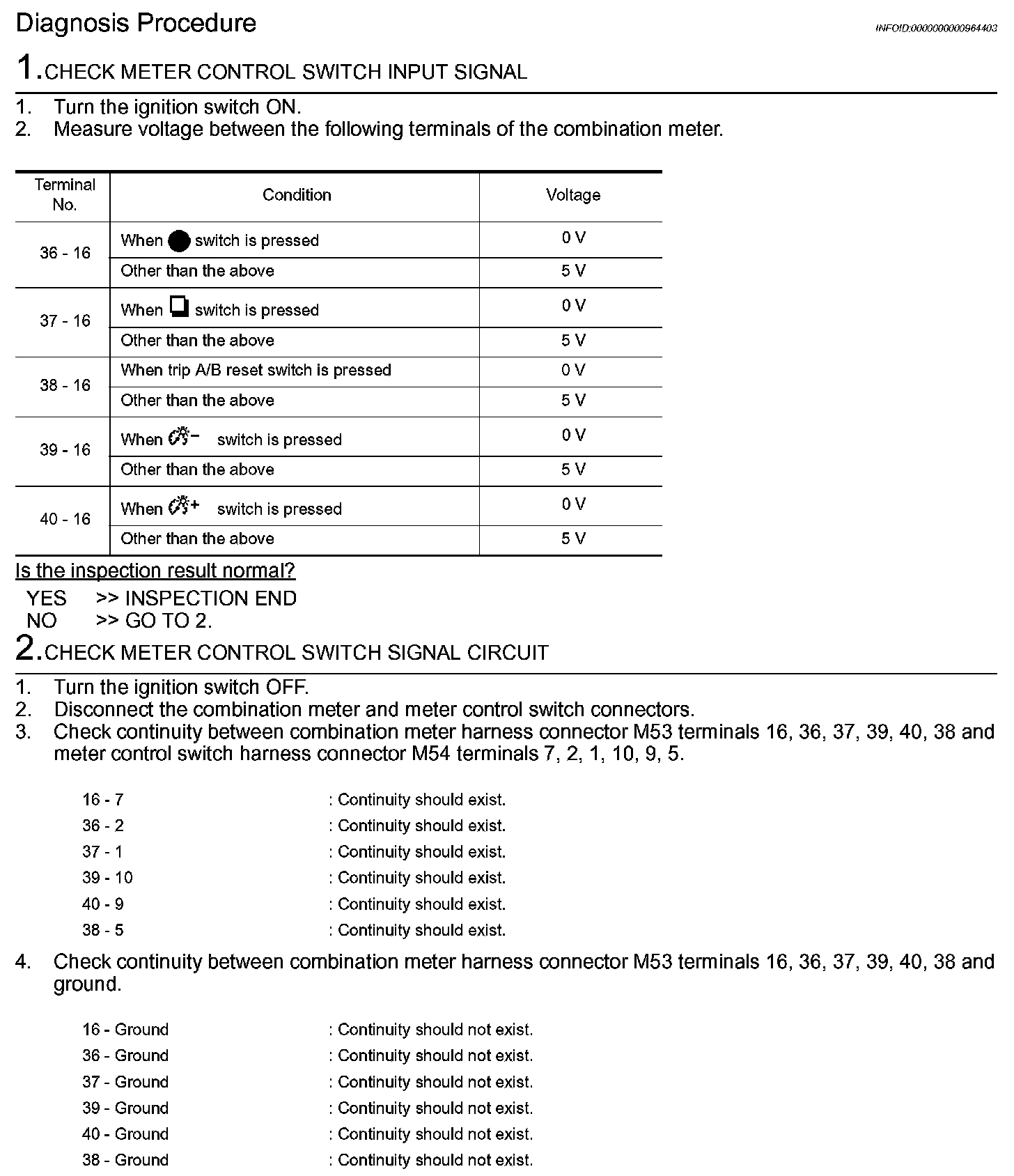

Diagnosis Procedure

Step 1:

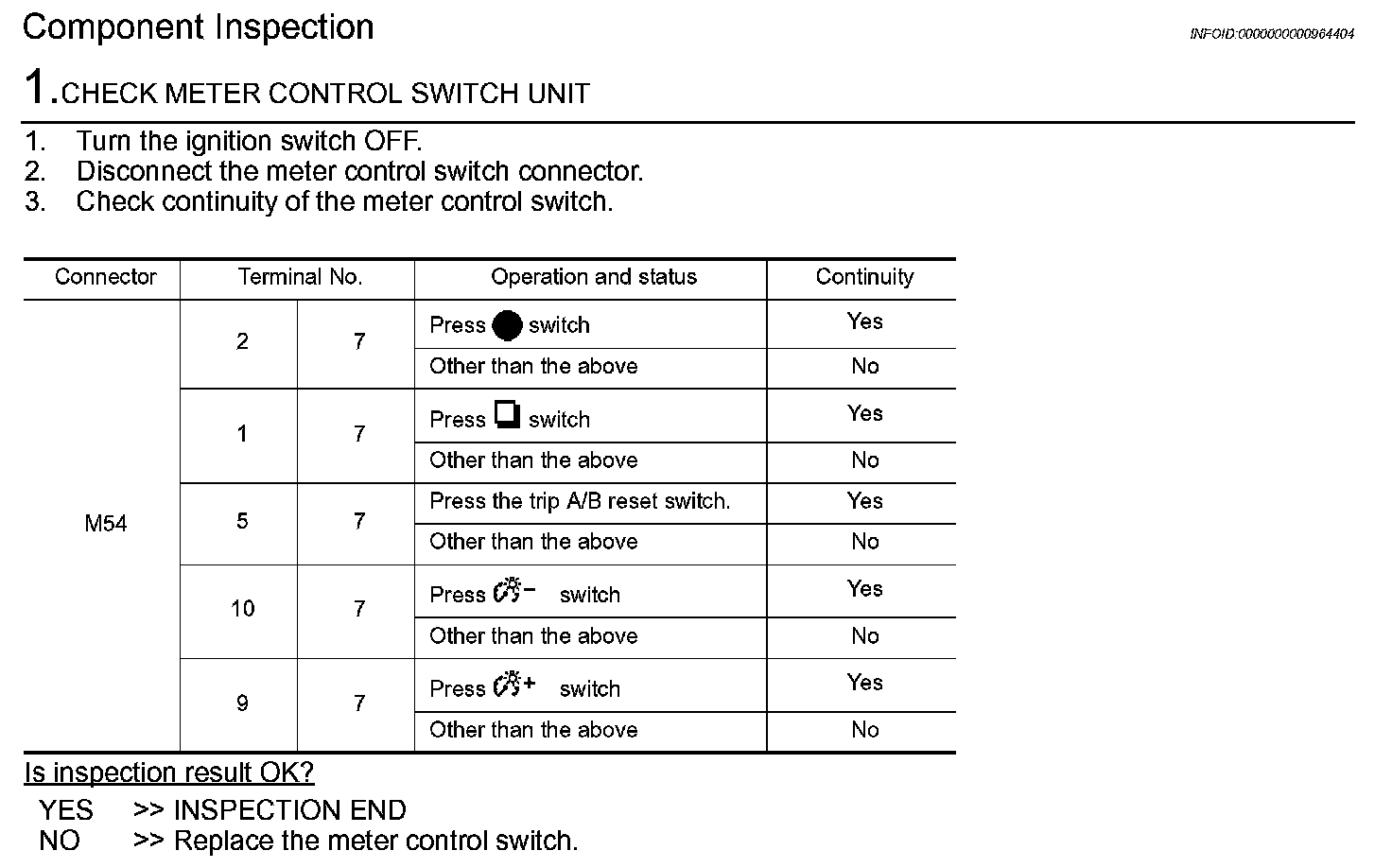

Component Inspection
