Personal Lamp

PERSONAL LAMP

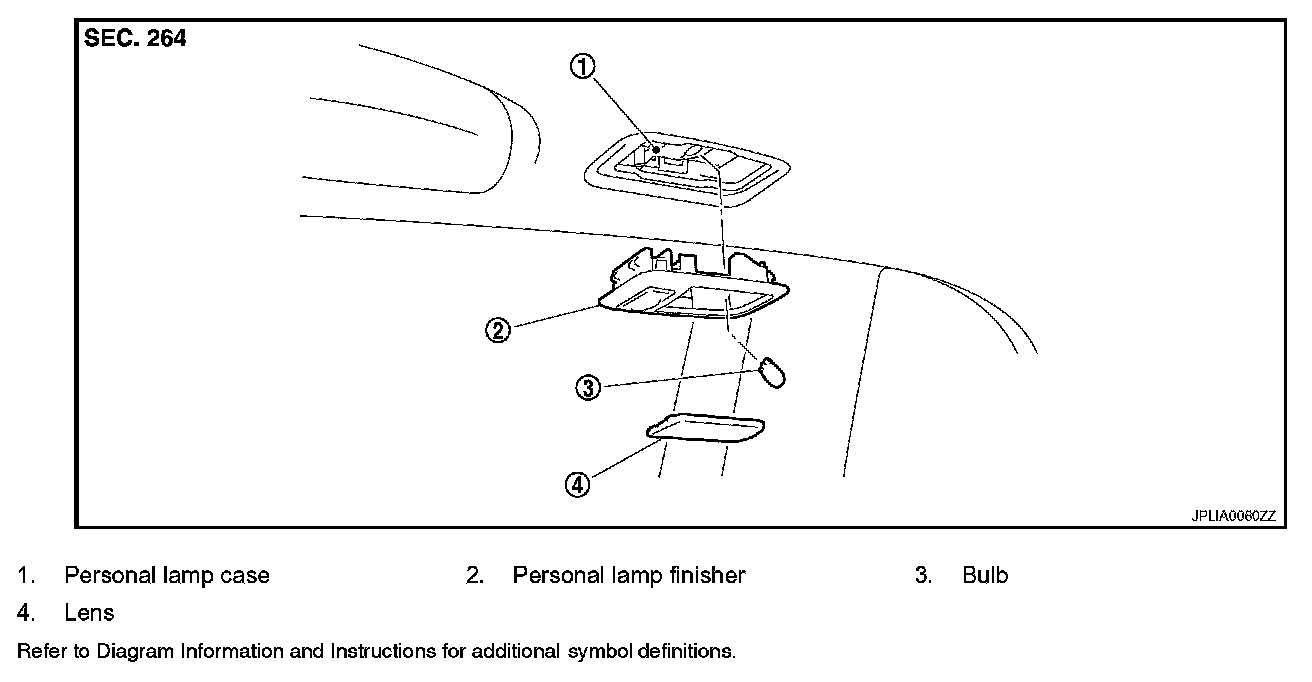

Exploded View INL-101:

Exploded View

NOTE: Replace the personal lamp case as a set (right and left). Before installing the headlining assembly, remove the personal lamp case.

Removal and Installation

CAUTION: Disconnect the battery negative terminal or the fuse.

REMOVAL

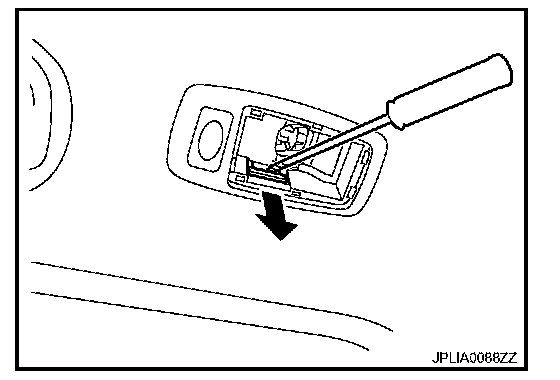

1. Insert any appropriate tool into the gap between the lens. Remove the lens.

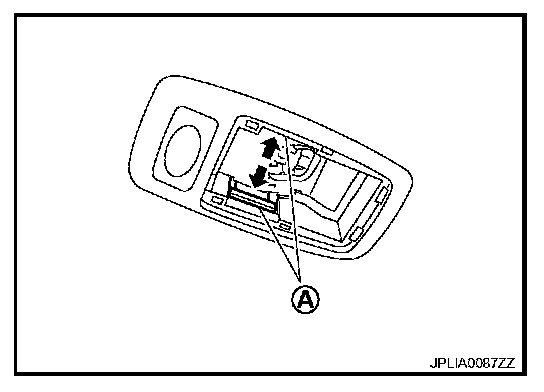

2. Press the both side pawls (A) to the arrow direction (<=). Remove the personal lamp finisher.

NOTE: Replace the personal lamp case as a set (right and left). Remove the personal lamp case after installing the headlining assembly.

INSTALLATION
Install in the reverse order of removal.

NOTE: The following is easier to install the personal lamp finisher with the headlining installed.




- Press the personal lamp finisher to the headlining. Pull the personal lamp case pawl to the arrow direction (<=) with any appropriate tool.

Replacement

CAUTION: Disconnect the battery negative terminal or the fuse.

PERSONAL LAMP BULB
1. Insert any appropriate tool into the gap between the lens. Remove the lens.
2. Remove the bulb.
