Horn: Service and Repair

ON-VEHICLE REPAIR

HORN

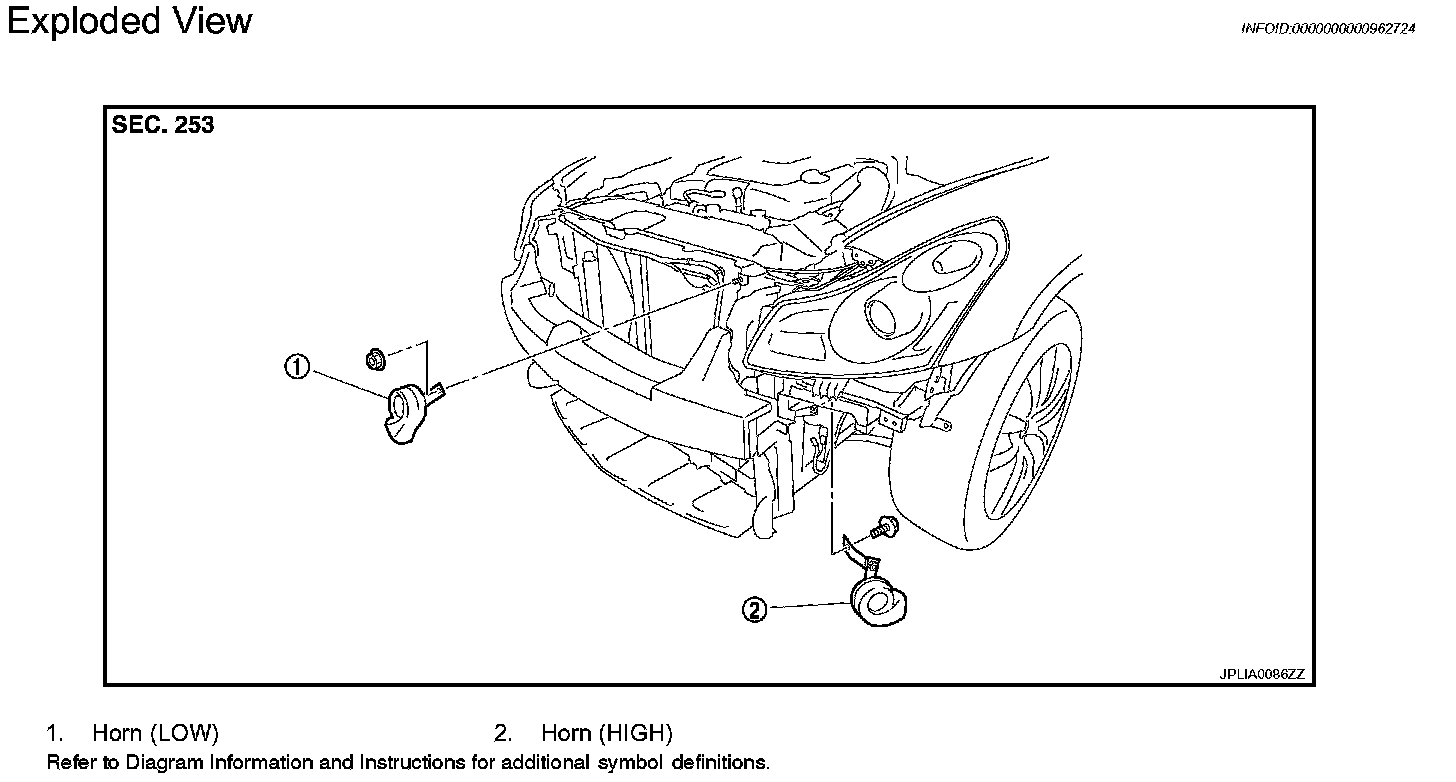

Exploded View HRN-6:

Exploded View

Removal and Installation

REMOVAL

Horn (LOW)
1. Remove radiator core support ornament. Refer to EI - radiator core support ornament removal/installation.
2. Disconnect the horn (LOW) connector.
3. Remove the horn mounting nut, and remove the horn (LOW) from the vehicle.

Horn ( HIGH)
1. Remove fender protector (LH). Refer to EI - Fender protector removal/installation.
2. Disconnect the horn (HIGH) connector.
3. Remove the horn mounting bolt, and remove the horn (HIGH) from the vehicle.

INSTALLATION
Install in the reverse order of removal.
