Trunk Lamp: Service and Repair

TRUNK ROOM LAMP

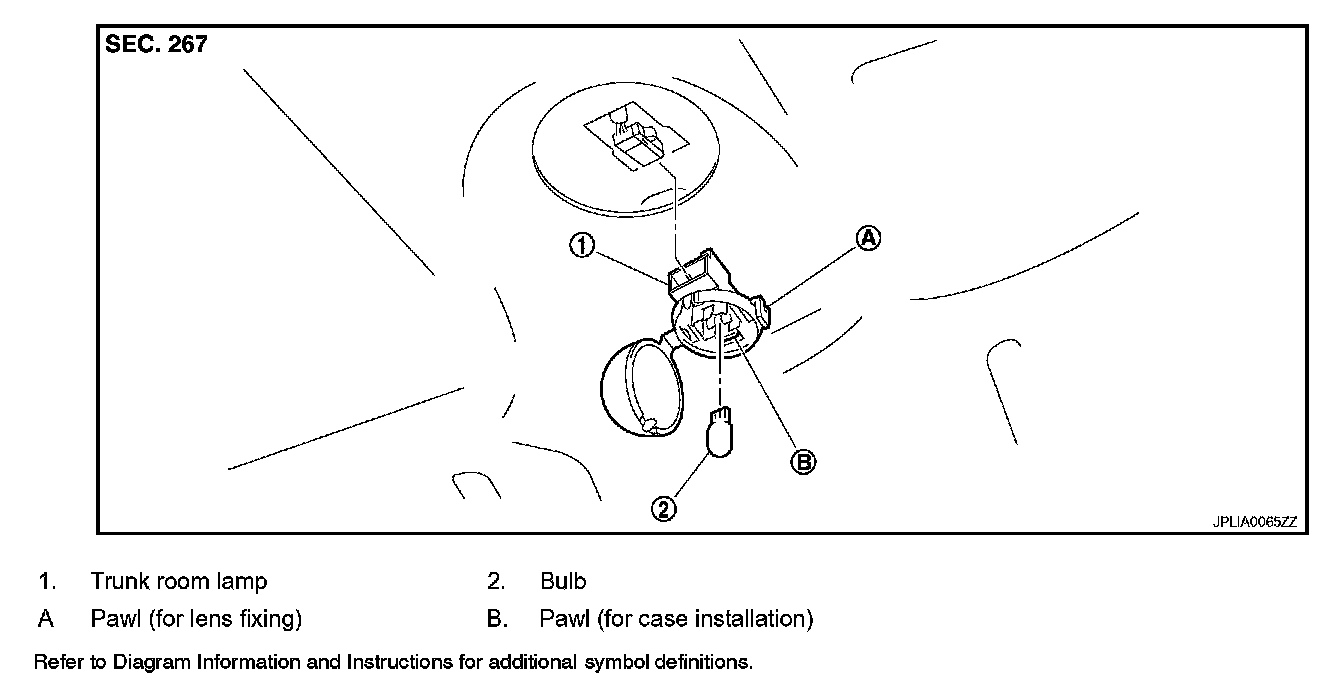

Exploded View INL-103:

Exploded View

Removal and Installation

CAUTION: Disconnect the battery negative terminal or the fuse.

REMOVAL




1. Widen the pawl (A). Open the lens (1).
2. Remove the bulb.
3. Pressing the pawl (B) to the arrow direction (<=). Pull out the trunk room lamp.
4. Disconnect the connector.
5. Remove the trunk room lamp.

INSTALLATION
Install in the reverse order of removal.

Replacement

CAUTION: Disconnect the battery negative terminal or the fuse.

TRUNK ROOM LAMP BULB
1. Widen the lens pawl. Open the lens.
2. Remove the bulb.
