Turn Signals: Service and Repair

FRONT COMBINATION LAMP

Exploded View

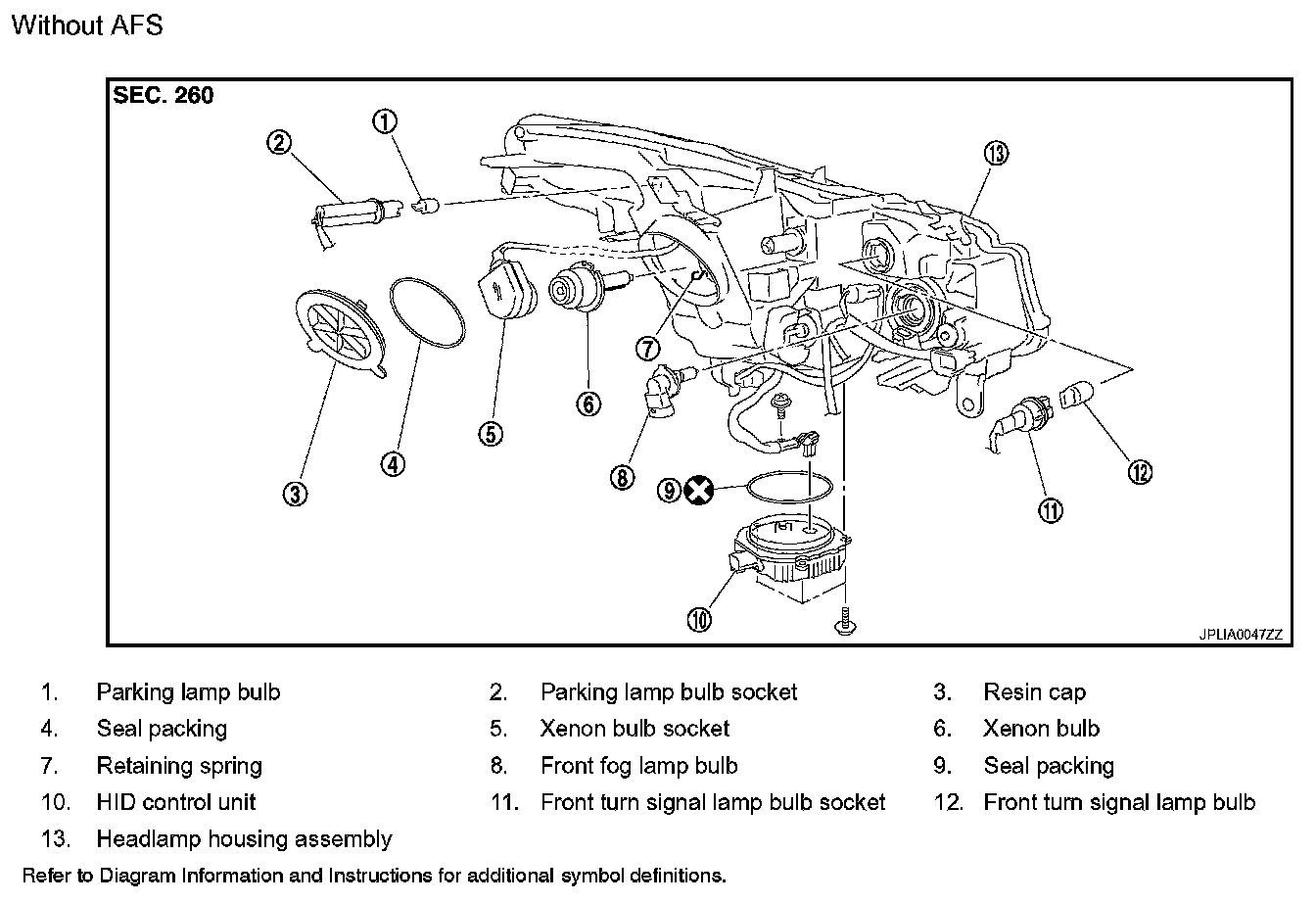

Exploded View EXL-184:

REMOVAL

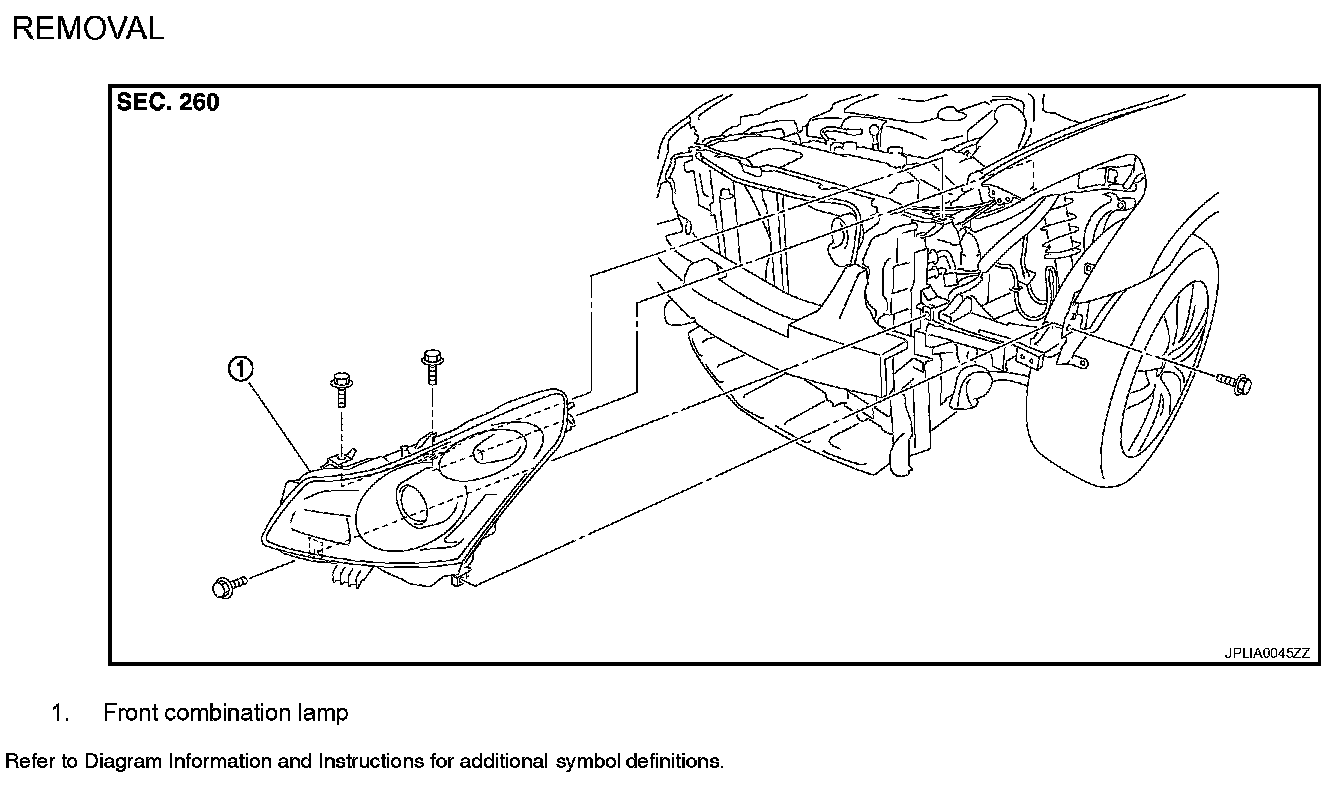

Exploded View EXL-184:

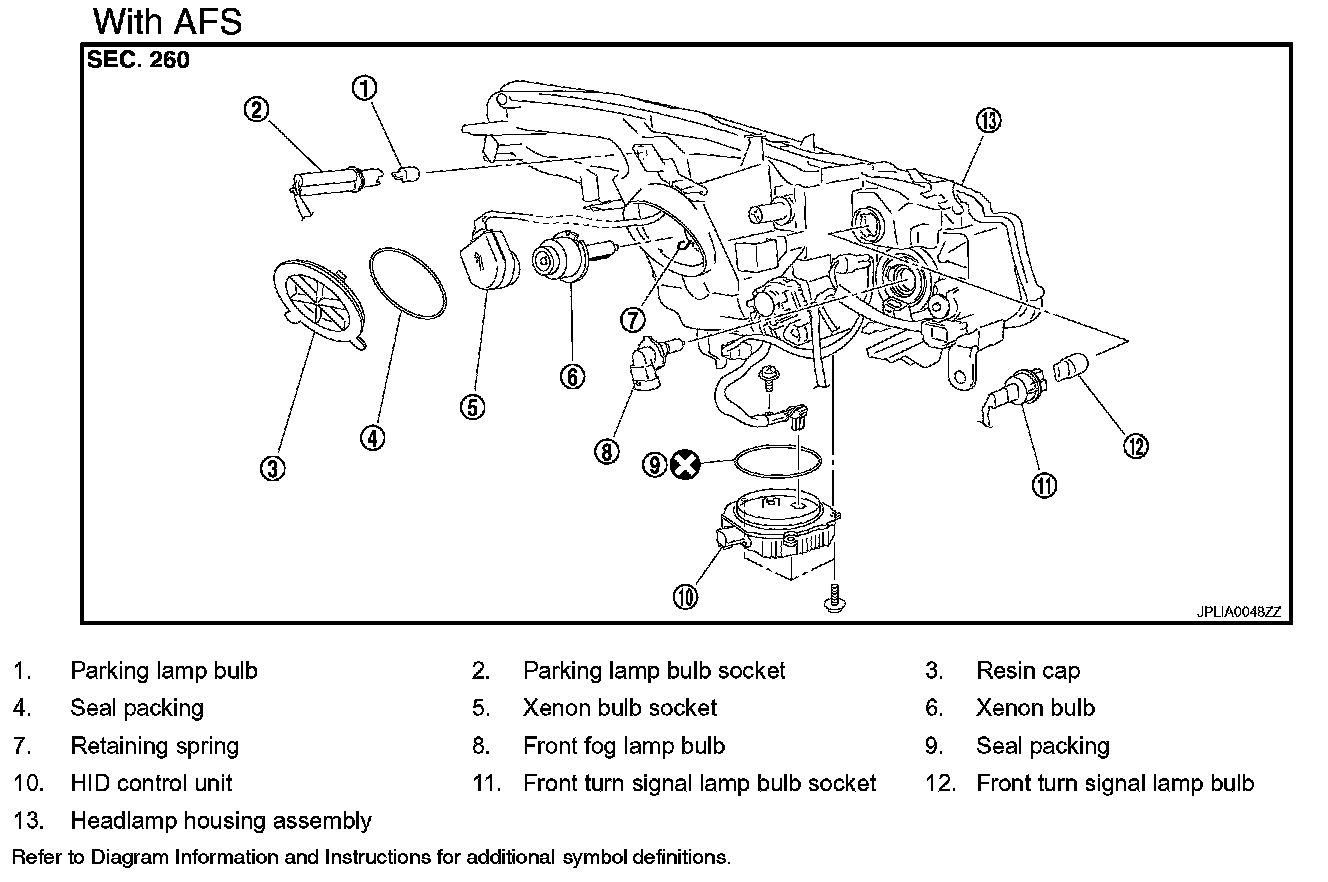

Exploded View EXL-185:

DISASSEMBLY

Removal and Installation

REMOVAL

CAUTION: Disconnect the battery negative terminal or the fuse.

1. Remove front bumper fascia.
2. Remove the headlamp mounting bolts.




3. Remove the pawl (A) and the harness clip (B).
4. Pull out the headlamp assembly forward the vehicle.
5. Disconnect the connector before removing the headlamp assembly.

INSTALLATION
Install in the reverse order of removal.

NOTE: After installation, perform aiming adjustment. Refer to EXL-186, "Adjustment". Front Combination Lamp

Replacement

CAUTION:
- Disconnect the battery negative terminal or the fuse.
- After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

HEADLAMP BULB
1. Remove the fender protector. Keep a service area.




2. Rotate the resin cap counterclockwise and unlock it.
3. Rotate the bulb socket counterclockwise and unlock it.
4. Remove the retaining spring lock. Remove the bulb from the headlamp.

CAUTION: Never break the xenon bulb ceramic tube when replacing the bulb.

PARKING LAMP BULB
1. Remove the fender protector. Keep a service area.
2. Rotate the bulb socket counterclockwise and unlock it.
3. Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB
1. Remove the air cleaner case.
2. Rotate the bulb socket counterclockwise and unlock it.
3. Remove the bulb from the bulb socket.

FRONT FOG LAMP BULB
1. Remove the air cleaner case.
2. Remove the front fog lamp bulb connector.
3. Rotate the bulb socket counterclockwise and unlock it.

Disassembly and Assembly

DISASSEMBLY
1. Rotate the resin cap counterclockwise and unlock it.
2. Rotate the xenon bulb socket counterclockwise and unlock it.
3. Remove the retaining spring lock. Remove the xenon bulb.
4. Remove the HID control unit installation screw.
5. Remove the screw. Disconnect the connector from HID control unit.
6. Pull out the xenon bulb socket from the headlamp housing assembly.
7. Rotate the parking lamp bulb socket counterclockwise and unlock it.
8. Remove the bulb from the parking lamp bulb socket.
9. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
10. Remove the bulb from the front turn signal lamp bulb socket.
11. Rotate the front fog lamp bulb socket counterclockwise. Remove the bulb.

ASSEMBLY
Assemble in the reverse order of disassembly.

CAUTION:
- Install HID control unit securely.
- After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
